Adjustments
HEAD POSITION = 010
FCTI/FCTA LIMIT
" Lock the potentiometer support in place using the grub screw. Close the cyl-
inder box and tighten down the screws.
" Press the ⇑ and FCTA keys in s equence and simultaneously.
" Set the FCTI point, taking the head completely backwards pressing in se-
quence and simultaneously the ⇑ key and the key for the head lifting (Y+).
" Open the control board removing the frame and pull the keyboard out of the
console;

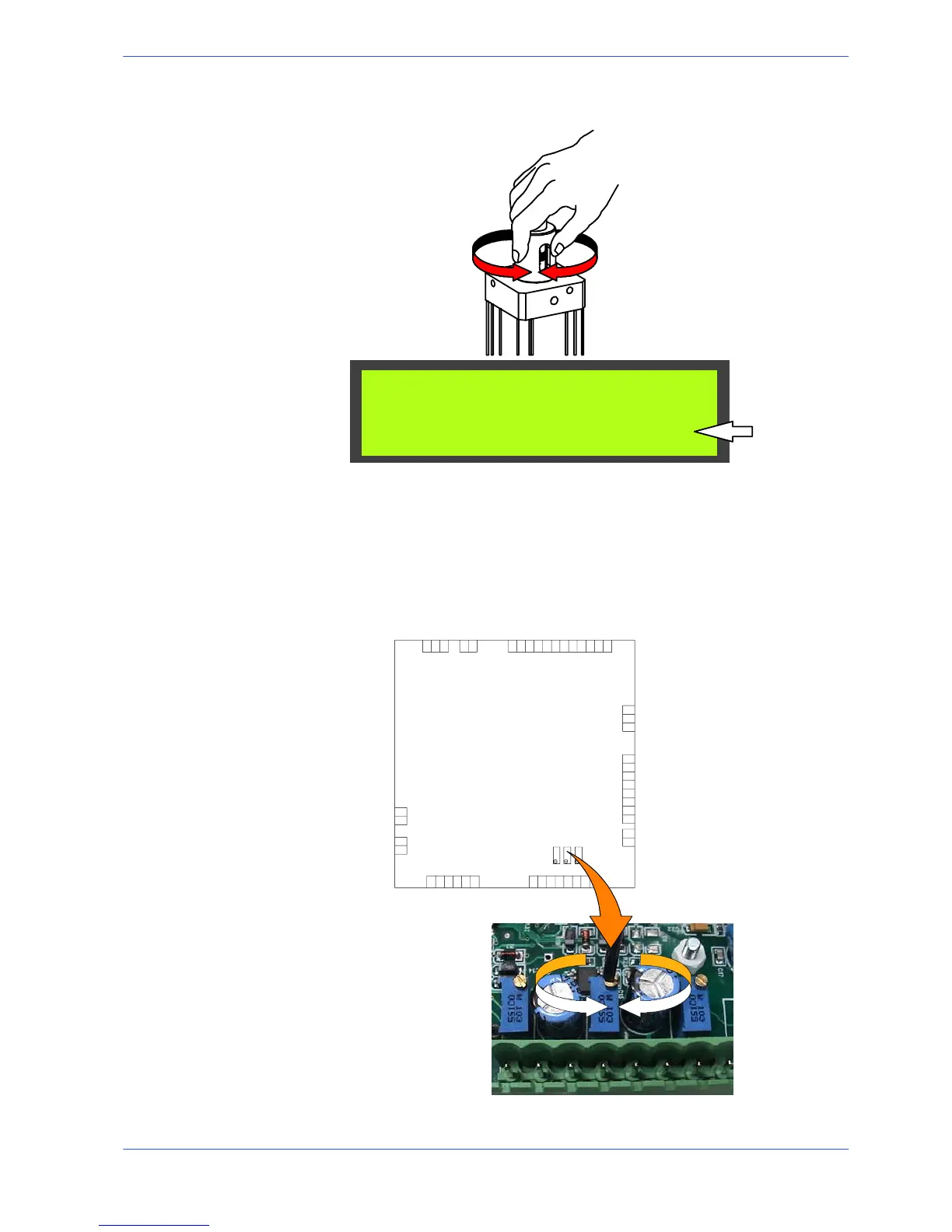

" Identify the board IUD/IUV of the controller M30 to adjust the potentio-
meter indicated by the arrow in the following image:
