HYDAC ELECTRONIC ETS 300 - Summary of the Basic Settings

10 ETS 300
Status: 29.01.2014 HYDAC ELECTRONIC GMBH Part No.: 669651 E

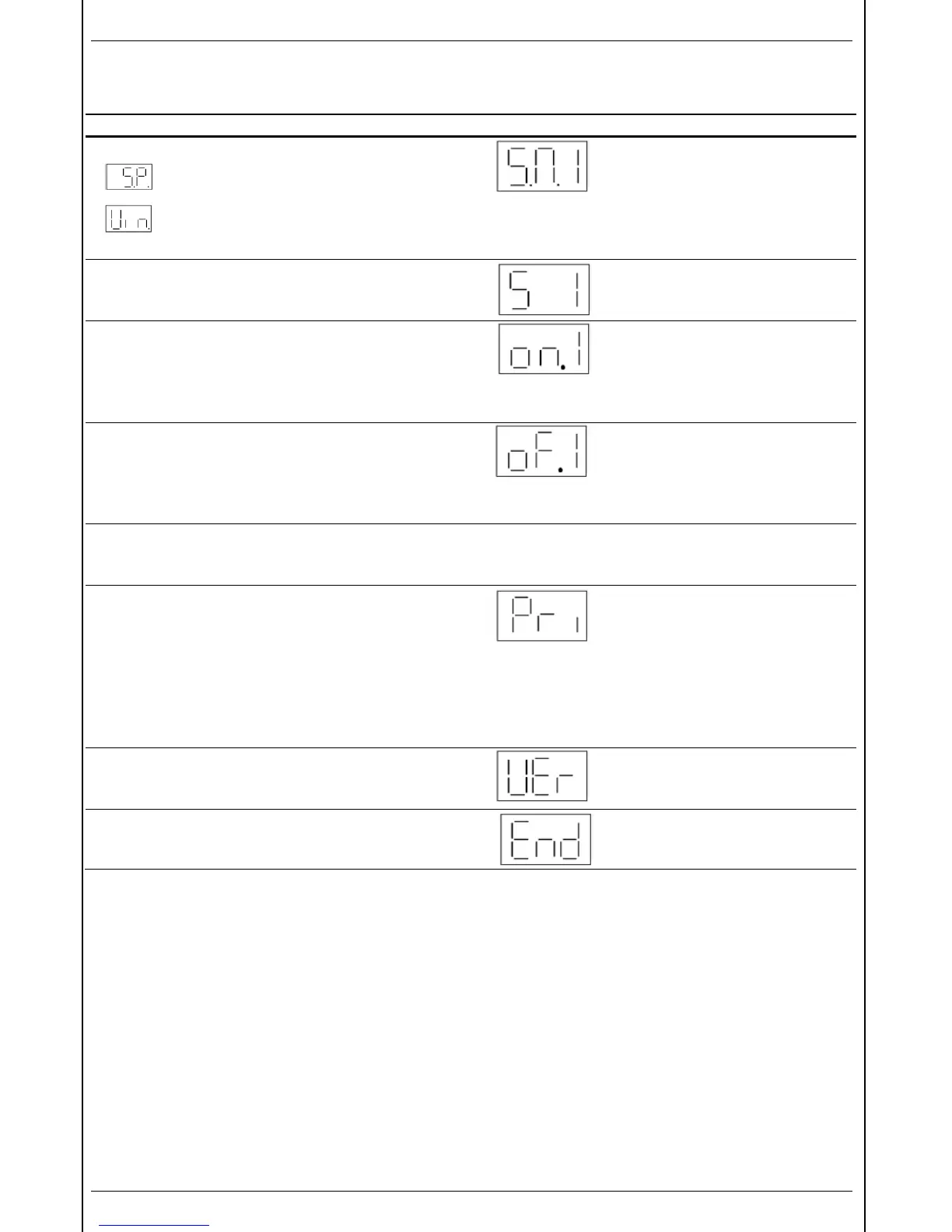

8.2 SUMMARY OF THE BASIC SETTINGS
Setting Display Setting range Presetting
Switching mode switching output 1 (Sm 1)
Switching output 1 operates in
switching point / hysteresis function
Switching output 1 operates in
window function
SP/ Win SP
Switching direction switching output 1 (S 1)
"ON": normally open function.
"OFF": normally closed function.
ON/OFF ON
Switch-on delay switching output 1
(T
on
1)
Time in seconds which must elapse, once the
particular switching point has been reached or
exceeded, before switching will occur.
0 .. 750 s 1
Switch-off delay switching output 1
(T
off
1)
Time in seconds which must elapse, once the
temperature has fallen below the particular
switch-back point, before switching will occur.
0 .. 750 s 1
Switching output 2, as above
Primary display (Primary)
Display value which should remain
permanently in the display:
"ACT": actual temperature
"Top" temperature peak value
"S.P.1" or "S.P.2": switching point 1 or 2
"OFF": display dark
(for function, see point 6 "Digital display")
ACT /
Top /
S.P.1 /
S.P.2 /
OFF
ACT
V
ersion number (Version)
Display of the current software version.
(for reference only)
To close basic settings (End) YES/NO NO
