HYDAC ELECTRONIC ETS 300 - 12 Circuit Diagram; Supply Voltage, Switching Outputs, Analogue Output

14 ETS 300
Status: 29.01.2014 HYDAC ELECTRONIC GMBH Part No.: 669651 E

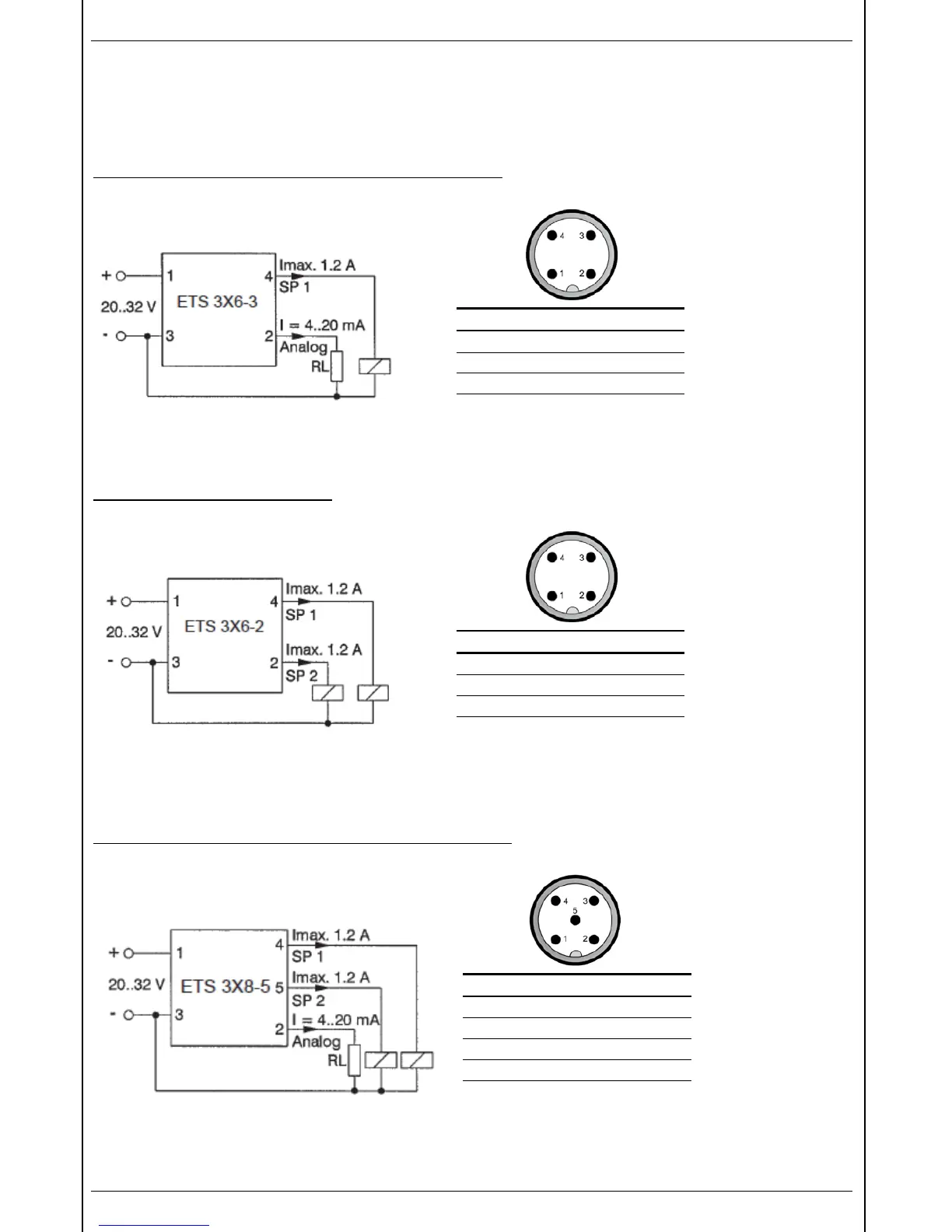

12 Circuit diagram
12.1 SUPPLY VOLTAGE, SWITCHING OUTPUTS, ANALOGUE OUTPUT
Model with 1 switching output and 1 analogue output
Male M12x1, 4 pole
Pin
1 + U
B
2 Analogue
3 0 V
4 SP 1
Model with 2 switching outputs
Male M12x1, 4 pole
Pin
1 + U
B
2 SP 2
3 0 V
4 SP 1
Model with 2 switching outputs and 1 analogue output
Male M12x1, 5 pole
Pin
1 + U
B
2 Analogue
3 0 V
4 SP 1
5 SP 2
