14.2 FOR MECHANICAL CONNECTION

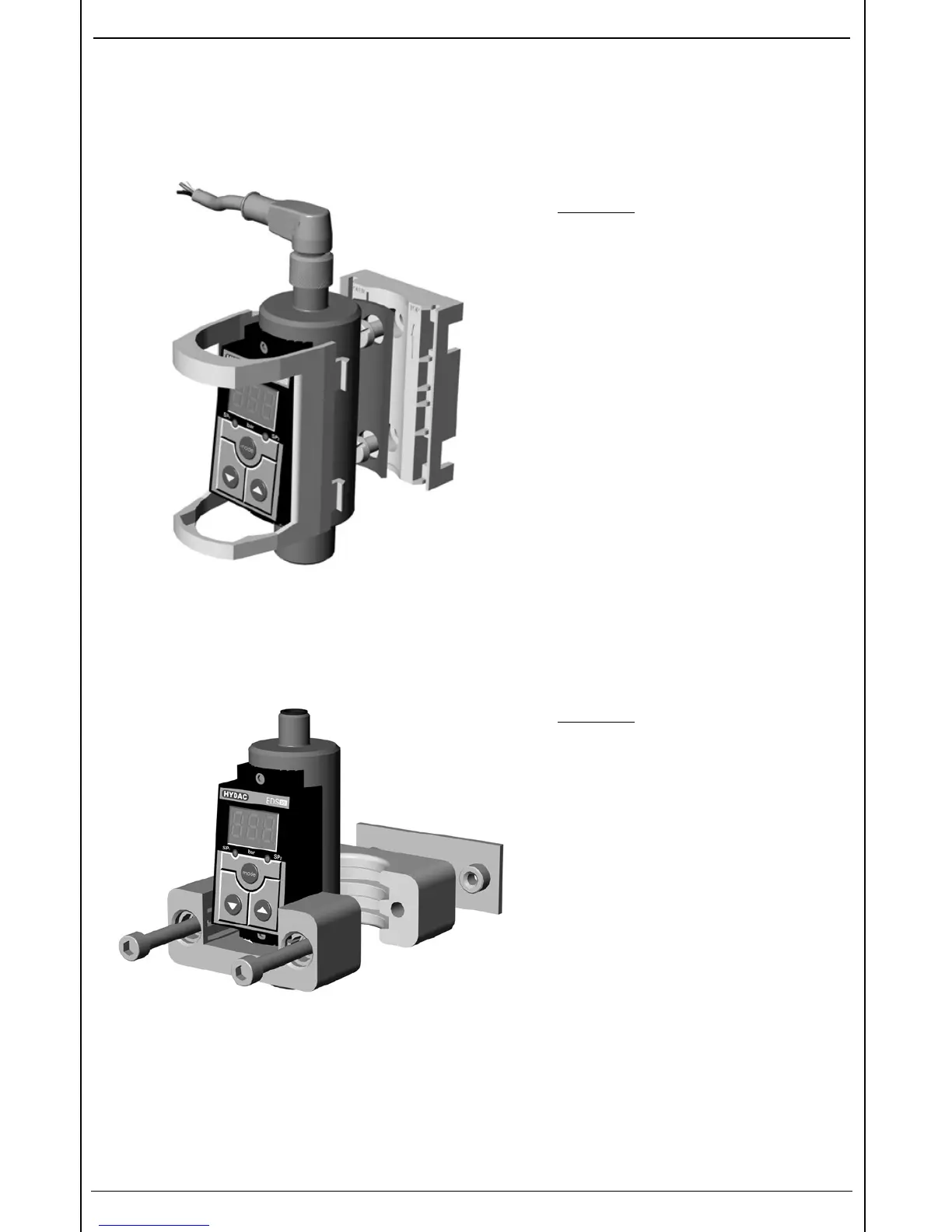

ZBM 300 clamp for wall-mounting the ETS 300 (material: polypropylene)
Mounting:
• Glue damping strips into the
recesses of the base plate.
• Mount base plate, the top is
indicated by "OBEN", "TOP" and 2
arrows.
• Insert ETS 300.
• Fit clip (only one possible position)
and press hard on the cross-pieces
until they engage.
ZBM 310 clamp for wall-mounting the ETS 300 (material: polypropylene, aluminium AlSi12, steel)
Mounting:
• Weld on the steel base plate
• Mount ETS 300 according to the
illustration
