HydraMaster GTXR+ - Blower Heat Exchanger Assembly Parts List

9-21: Assemblies and Parts Lists
Blower Heat Exchanger Assembly Parts List
1 000-052-738 ADAPTER, 1/4” NPT x 1/2” FPT 1
2 000-013-115 BOX, OUTLET PLENUM, STEEL - COATED 1
3 000-013-118 BOX, PLENUM INLET, STEEL - COATED 1
4 000-015-1303 BRACKET, HX PLENUM SIDE BACKING 4
5 000-015-1302 BRACKET, HX PLENUM TOP BACKING 4
6 000-052-061 BUSHING, 3/8” NPT x 1/4” FPT 1
7 000-033-012 CLAMP, SIZE #44 HOSE 2
8 000-038-001 CORE, BLOWER HEAT EXCHANGER 1
9 000-052-113 CROSS, 3/8” FPT 1
Item Part Number Description Qty Item Part Number Description Qty
10 000-057-255 GASKET, SALSA HX - CDS ZR-2017 2
11 000-052-528 NIPPLE, 3/8” M JIC x 3/8” NPT 1
12 000-052-128 NIPPLE, 3/8” MPT x 3/8” SAE FLARE 1
13 000-052-074 NIPPLE, 3/8” NPT HEX 1
14 000-052-662 NIPPLE, 3/8” NPT x 1/4” M SAE 1
15 000-143-583 SCREW, #10-24UNC x 0.50” LG. HEX HD FLANGE 36
16 000-149-027 SENSOR, 285F NASON- 3/8” NPT 1
17 000-052-023 TEE, 3/8” NPT MALE STREET 1
18 000-068-986 HOSE, 2.5” HEAT FLEX NS x 15” LG. 1
3
16
4X
13
2
8
14
17
15
9
18
6
1
11
7
7
12
10
4
2X
5
2X
4
2X
5
2X
10
16
16X
16
16X
SENSOR (COMES WITH 000-149-025)
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO.
18 1 TEE, 3/8" NPT MALE STREET BRASS 000-052-023
17 1 SENSOR, 285F NASON- 3/8" NPT VARIOUS 000-149-027
16 36 SCREW, #10-24UNC x 0.50" LG. HEX HEAD FLANGE Z/P STEEL 000-143-583
15 1 NIPPLE, 3/8" NPT x 1/4" M SAE BRASS 000-052-662
14 1 NIPPLE, 3/8" NPT HEX BRASS 000-052-074
13 1 NIPPLE, 3/8" MPT x 3/8" SAE FLARE BRASS 000-052-128
12 1 NIPPLE, 3/8" M JIC x 3/8" NPT BRASS 000-052-528
11 1 HOSE, 2.5" HEAT FLEX NS x 15" LG. SILICONE 000-068-986
10 2 GASKET, SALSA HX - CDS ZR-2017
ASTM D2000
M1GE605
000-057-255
9 1 CROSS, 3/8" FPT BRASS 000-052-113
8 1 CORE, BLOWER HEAT EXCHANGER VARIOUS 000-038-001
7 2 CLAMP, SIZE #44 HOSE S. STEEL 000-033-012
6 1 BUSHING, 3/8" NPT x 1/4" FPT BRASS 000-052-061
5 4 BRACKET, HX PLENUM TOP BACKING 5052-H32 000-015-1302
4 4 BRACKET, HX PLENUM SIDE BACKING 5052-H32 000-015-1303
3 1 BOX, PLENUM INLET, STEEL - COATED STEEL 000-013-118
2 1 BOX, OUTLET PLENUM, STEEL - COATED STEEL/SS 000-013-115
1 1 ADAPTER, 1/4" NPT x 1/2" FPT BRASS 000-052-738
LTR REVISION DESCRIPTION CODE DATE BY CHKD APPVD
A RELEASE DRAWING.
NEW
02/08/2018 L.O.L. M.B.B. M.B.B.
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:2
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY USED ON
610-005-754
REV
ASSEMBLY, HEAT EXCHANGER - GTXR PLUS
A
GTXR PLUS 610-050-754
- - - - - -
- - -- - -
- - - - - -
- - - - - -
M.B.B.
M.B.B.
L.O.L.
DRAWN
CHECKED
APPVD
02/08/2018
02/08/2018
02/08/2018
TOLERANCES
.X=
.1
.XX= .03
.XXX= .010
ANGULAR = 2°
CODE:
37.19

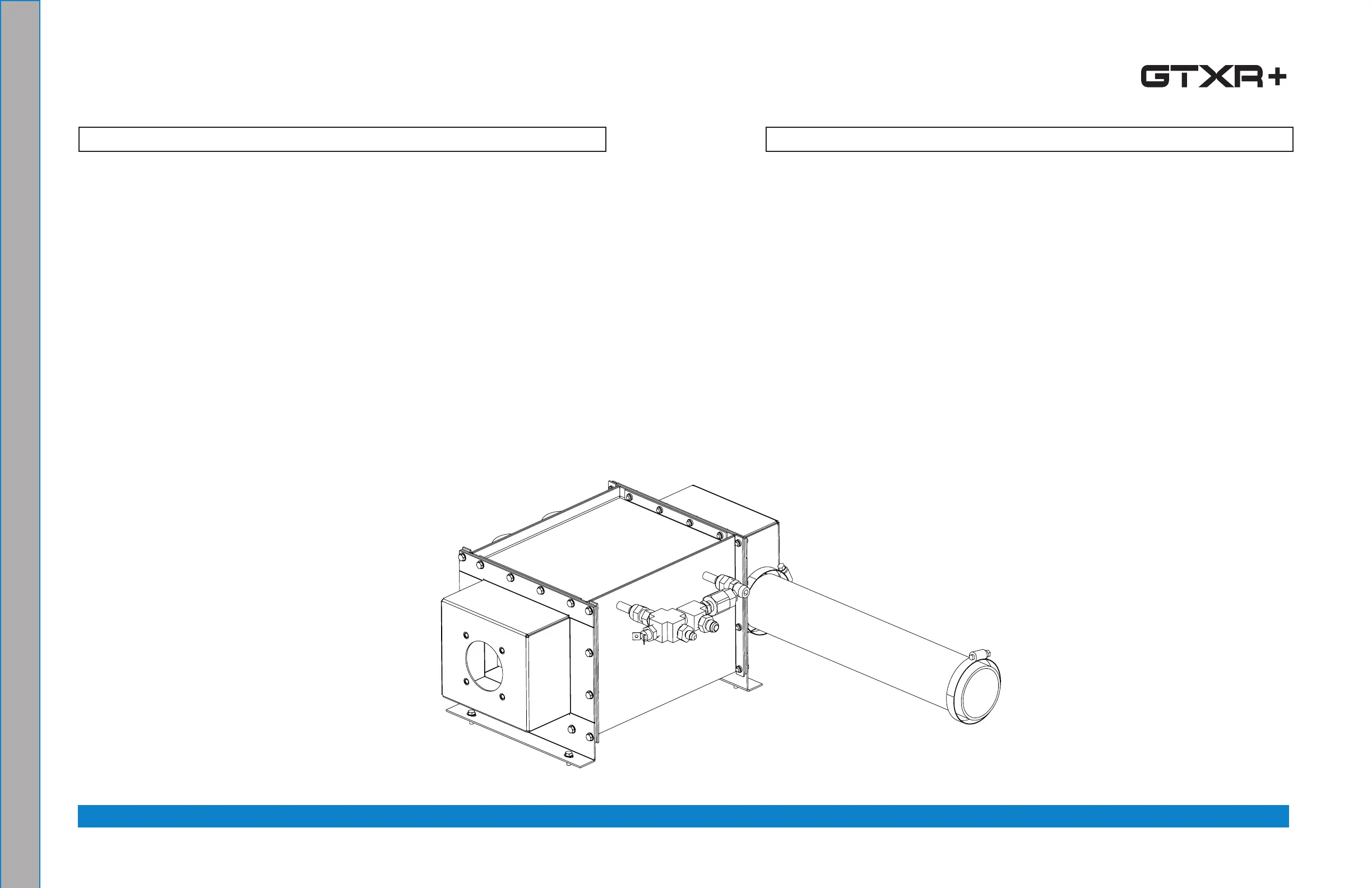

Figure 8-17. Blower Heat
Exchanger Assembly- View 2 of 2
610-005-754 Rev. A
