9-31: Assemblies and Parts Lists
Hi-PSI Manifold Assembly Parts List
1 000-052-084 ELBOW, 1/8” NPT STREET 1
2 000-049-052 FILTER CARTRIDGE,1/4”BRASS 2
3 000-052-153 HOUSING, STABILIZER NOZZLE 2
4 000-052-530 NIPPLE, 1/4” SAE x 1/8” NPT 1
5 000-052-586 NIPPLE, 1/8” FPT X 1/4” SAE 2
6 000-052-582 NIPPLE, TEE JET STYLE COLLAR X 1/8” NPT 2
7 000-094-028 NUT, BRASS JET ASSEMBLY 2
8 000-180-010 ORIFICE, 0.039” PLATE 1
9 000-180-024 ORIFICE, PLATE 0.067” 1
10 000-052-092 TEE, 1/8” FPT 1
Item Part Number Description Qty

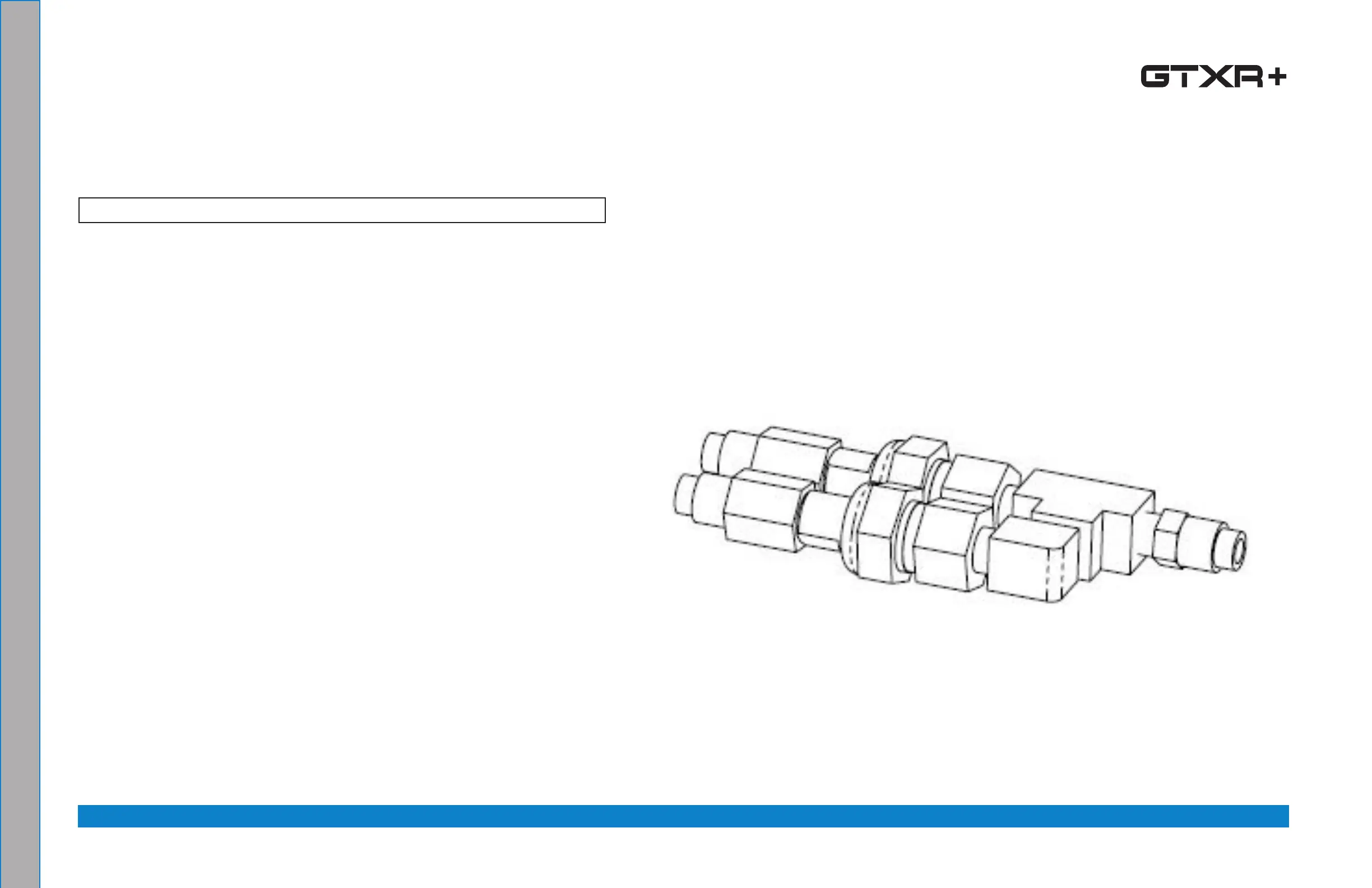

Figure 8-26. Hi-PSI Manifold
Assembly - View 2 of 2
610-021-729 Rev. -
