Installation Information: 2-6
ORIENTATION OF FUEL PUMP
For proper fuel pump operation and fuel ow, the vehicle’s fuel pump must be installed in
a lower position with respect to the fuel tank and
in as vertical a position as possible (outlet side up
- see Figure 2-3 and Figure 2-4).
Mount the fuel pump away from sources of heat
.

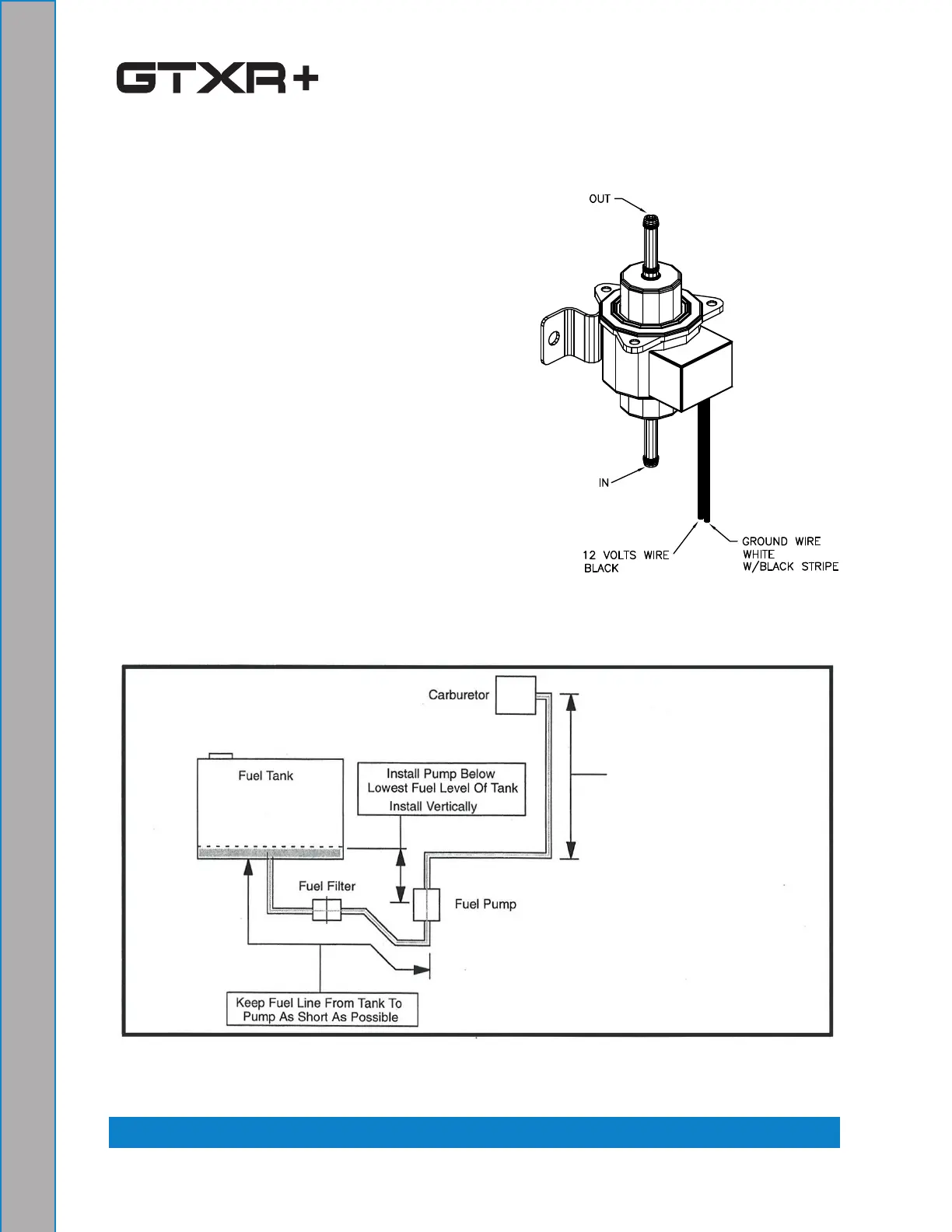

Figure 8-3. Install Fuel Pump,
Outlet Side Up
Figure 8-4. Fuel Pump Must Be in Vertical Position
Pump Can Push Fuel
6.5 ft (2 m) Vertically
