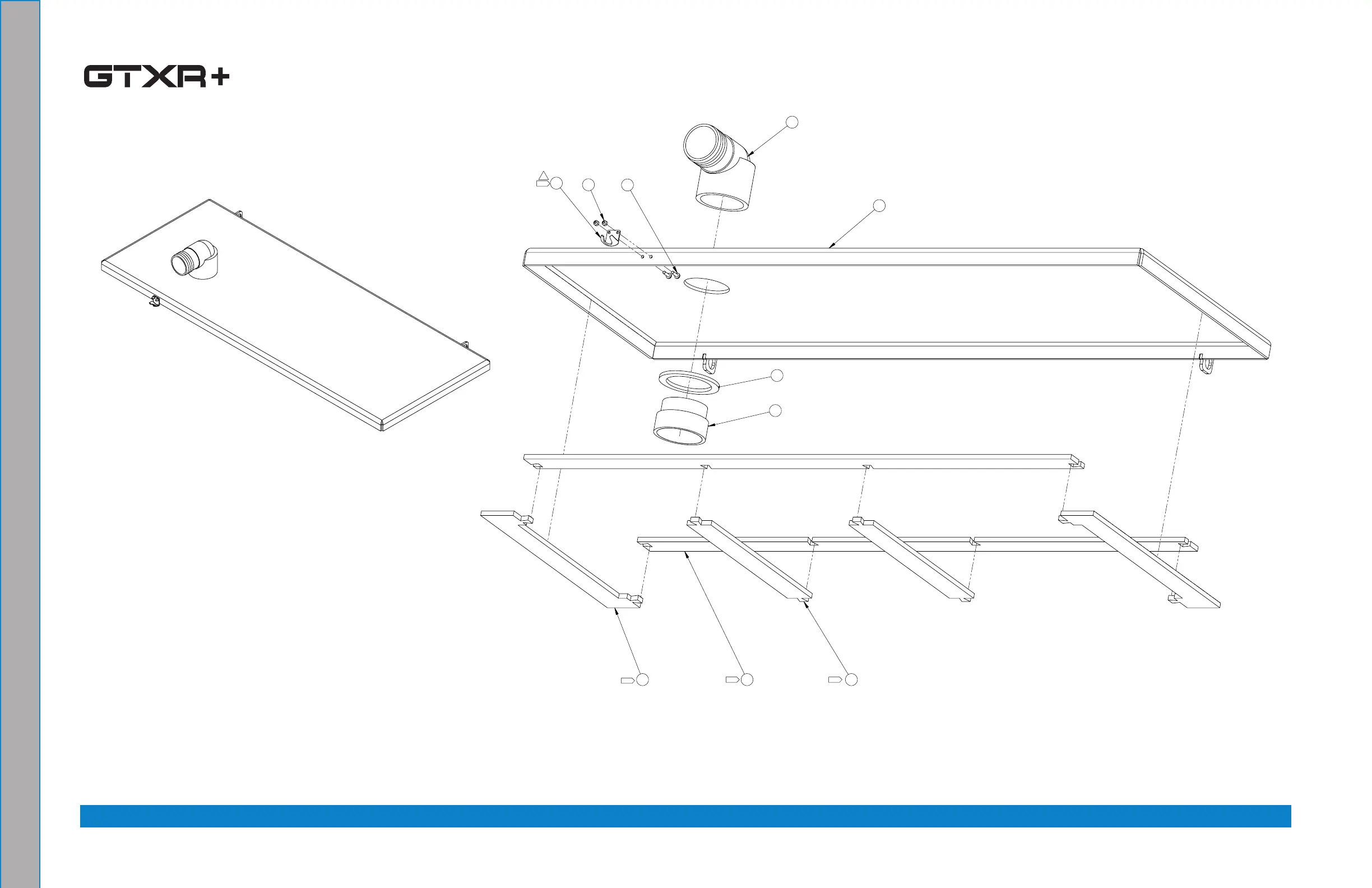

Figure 8-30. 70 Gallon Universal Recovery Tank (URT) Cover Assembly
610-029-726 Rev. A
3
9
2X
8
10
2X
4
2
5 7 6
1
1
1 1
2X 2X
2X
2.
A
NOTES:
1
ADHERE ITEMS
5
,
6
&
7
TO BOTTOM SIDE OF COVER WITH ADHESIVE #000-146-047.
2.
ITEM
8
IS PART OF RECOVERY TANK BOM.
1
2.
A
REVISIONS
LTR
REVISION
CODE
DATE
BY
CHKD
APPVD
A
ADDED NOTE 2.
MIT
4/3/2012
E.J.B.
C.I.R. C.I.R.
10 2
SCREW, #6-32UNC x 0.50" LG. BUTTON HEAD
18-8 STAINLESS
000-143-539
9 2
NUT, #6-32UNC NYLOCK
S. STEEL
000-094-063
8 1
LATCH, BUNGEE - STRIKE
STEEL
000-086-008
7 2
GASKET, SIDE - RECOVERY TANK
RUBBER
000-057-204
6 2
GASKET, MIDDLE - REC. TANK COVER
RUBBER
000-057-203
5 2
GASKET, END - REC. TANK COVER
RUBBER
000-057-202
4 1
GASKET, 1-1/2" BULKHEAD FITTING
VARIOUS
000-057-015
3 1
ELBOW, 2" BARB x 2" FPT
ABS
000-052-222
2 1
ADAPTER, 2" NPT x 2" F SLIP
ABS
000-052-219
1 1
70 GALLON UNIVERSAL RECOVERY TANK COVER, SINGLE VAC. -
WELDMENT - COATED
5052-H32
000-041-443
ITEM NO.
QTY.
DESCRIPTION
MATERIAL
Part No.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:2
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
CODE:
APPLICATION
NEXT ASSY
USED ON
610-029-726
REV
ASSEMBLY, COVER, 70 GAL URT, SINGLE VAC.
(COATED E-10)
A
- - -
BOXXER 323
610-003-726
610-003-720
BOXXER 421
- - -- - -
- - - - - -
- - - - - -
L.O.L.
L.O.L.
E.J.B.
DRAWN
CHECKED
APPVD
03/02/2012
03/02/2012
03/02/2012
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
3
9
2X
8
10
2X
4
2
5 7 6
1
1
1 1
2X 2X
2X
2.
A
NOTES:
1
ADHERE ITEMS
5
,
6
&
7
TO BOTTOM SIDE OF COVER WITH ADHESIVE #000-146-047.
2.
ITEM
8
IS PART OF RECOVERY TANK BOM.
1
2.
A
REVISIONS
LTR
REVISION
CODE
DATE
BY
CHKD
APPVD
A
ADDED NOTE 2.
MIT
4/3/2012
E.J.B.
C.I.R. C.I.R.
10 2
SCREW, #6-32UNC x 0.50" LG. BUTTON HEAD
18-8 STAINLESS
000-143-539
9 2
NUT, #6-32UNC NYLOCK
S. STEEL
000-094-063
8 1
LATCH, BUNGEE - STRIKE
STEEL
000-086-008
7 2
GASKET, SIDE - RECOVERY TANK
RUBBER
000-057-204
6 2
GASKET, MIDDLE - REC. TANK COVER
RUBBER
000-057-203
5 2
GASKET, END - REC. TANK COVER
RUBBER
000-057-202
4 1
GASKET, 1-1/2" BULKHEAD FITTING
VARIOUS
000-057-015
3 1
ELBOW, 2" BARB x 2" FPT
ABS
000-052-222
2 1
ADAPTER, 2" NPT x 2" F SLIP
ABS
000-052-219
1 1
70 GALLON UNIVERSAL RECOVERY TANK COVER, SINGLE VAC. -
WELDMENT - COATED
5052-H32
000-041-443
ITEM NO.
QTY.
DESCRIPTION
MATERIAL
Part No.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:2
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
CODE:
APPLICATION
NEXT ASSY
USED ON
610-029-726
REV
ASSEMBLY, COVER, 70 GAL URT, SINGLE VAC.
(COATED E-10)
A
- - -
BOXXER 323
610-003-726
610-003-720
BOXXER 421
- - -- - -
- - - - - -
- - - - - -
L.O.L.
L.O.L.
E.J.B.
DRAWN
CHECKED
APPVD
03/02/2012
03/02/2012
03/02/2012
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
