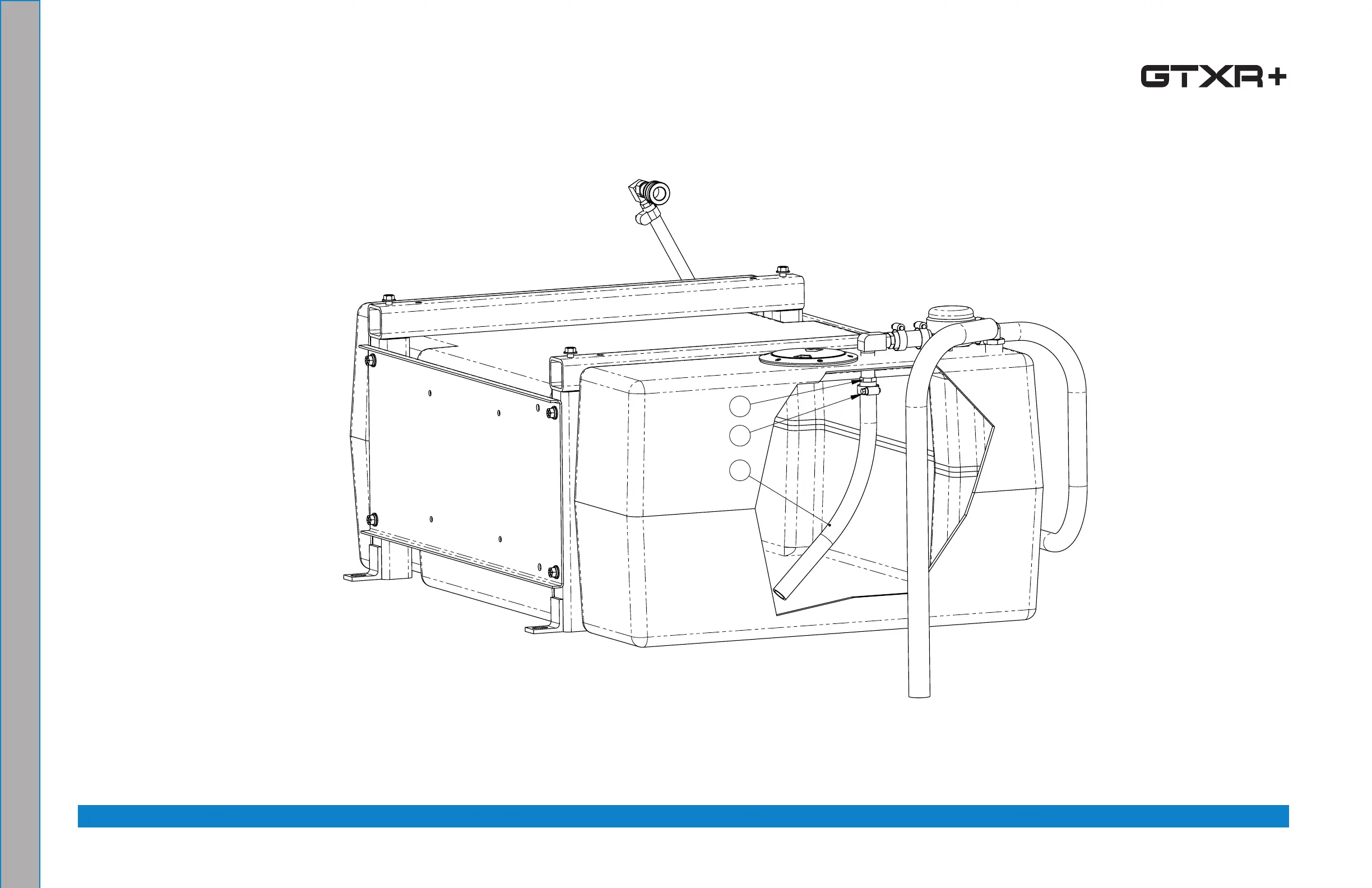

Figure 8-33. 70 Gallon
29
6X
451633
10
27
4X
33
4X
25 6
3031
15
2
5
20
26
24 2 11 27
8X
32
8X
33
8X
22
4X
34
4X
28
4X
34
4X
23
2X
33
4X
21
4X
1
1
TO MACHINE
FRESH WATER
INLET
19
7
8 12
14
18173
9
B
B
3
13
16
ITEM NO.
QTY.
DESCRIPTION
MATERIAL
PART NO.
34 8
WASHER, 5/16" FLAT
18-8 S. STEEL
000-174-049
33 16
WASHER, 3/8" FLAT
STEEL
000-174-005
32 8
WASHER, 3/8" LOCK
STEEL
000-174-021
31 1
VALVE, 3/4" FPT BALL VALVE
PVC
000-169-202
30 1
TANK, 70 GALLON FRESH WATER ROTOMOLDED
LLDPE
000-159-182
29 6
SCREW, #8 x 1/2" LG. PAN HEAD
S. STEEL
000-143-314
28 4
SCREW, 5/16"-18UNC x 3/4" LG.
S. STEEL
000-143-012
27 12
SCREW, 3/8"-16UNC x 1" LG. HEX HEAD - GRADE 8
STEEL
000-143-018
26 1
QUICK CONNECT, 660 3/8" BRASS W/ EPDM O-RING
BRASS
000-052-052
25 1
QUICK CONNECT, 3/8 FEMALE
BRASS
000-052-053
24 1
PUMP, FLOJET W/ BLADDER 40 PSI FRESH WATER
VARIOUS
000-111-170
23 2
PLATE, SIDE - COATED
ASTM A1008 CS TYPE
B
000-105-668
22 4
NUT, 5/16"-18UNC NYLOCK
18-8 S. STEEL
000-094-038
21 4
NUT, 3/8"-16UNC HEX 2-WAY LOCKING
STEEL Z/P
000-094-015
20 1
NIPPLE, 3/8" NPT x 1/2" NPT
BRASS
000-052-075
19 1
NIPPLE, 3/4" NPT CLOSE
PVC
000-052-326
18 1
INSERT, FLOJET PUMP OUTLET (COMES w/ 000-111-170)
NYLON
- - -
17 1
INSERT, FLOJET PUMP INLET (COMES w/ 000-111-170)
PVC
- - -
16 2
INSERT, #812, 1/2NPT X 3/4 HOSE
GFBN
000-052-129
15 1
INSERT, #68 (3/8" NPT x 1/2" BARB)
BRASS
000-052-105
14 1
HOSE, 3/4" I.D. RUBBER x 30" LG.
RUBBER
000-068-974
13 1
HOSE, 3/4" I.D. RUBBER x 16" LG.
RUBBER
000-068-965
12 1
HOSE, 3/4" I.D. RUBBER x 2.5" LG.
RUBBER
000-068-973
11 1
HOSE, 1/2" I.D. RUBBER x 32" LG.
RUBBER
000-068-975
10 1
HOSE, 1" I.D. RUBBER x 36" LG. - RED
RUBBER
000-068-964
9 1
GASKET - 4 IN. COVER LID
NEOPRENE 30A
DUROMETER
000-057-254
8 1
FILTER, FLOJET PUMP (COMES w\ 000-111-170)
VARIOUS
- - -
7 1
ELBOW, 3/4" NPT x 1" HOSE
BLACK
000-052-348
6 1
ELBOW, 3/8" NPT STREET
BRASS
000-052-086
5 2
ELBOW, 1/2" NPT STREET
BRASS
000-052-087
4 1
COVER, 4" ROUND POLYCARBONATE - RAW
POLYCARBONATE
000-041-892
3 5
CLAMP, SIZE #12 HOSE
S. STEEL
000-033-029
2 2
CLAMP, SIZE #6 MINI HOSE
S. STEEL
000-033-004
1 2
BRACKET, 70 FWT MOUNTING - COATED
A500/A36
000-015-1238
LTR
REVISION DESCRIPTION
CODE
DATE
BY
CHKD
APPVD
A
RELEASED DRAWING.
NEW
9/11/2012
L.O.L.
C.I.R. C.I.R.
B
REPLACED 1 QTY. 000-041-365 WITH 000-041-892;
ADDED 1 QTY. 000-057-254.
ECR #2799
09/22/2017
P.E.
R.D.D.
ECRB
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:4
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY
USED ON
000-163-212
REV
ASSEMBLY, 70 FWT
B
70 FWT
000-190-034
000-190-034
BOXXER 318
- - -- - -
- - - - - -
- - - - - -
C.I.R.
C.I.R.
L.O.L.
DRAWN
CHECKED
APPVD
09/11/2012
09/11/2012
09/22/2017
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
CODE:
132.99
