9-3: Assemblies and Parts Lists

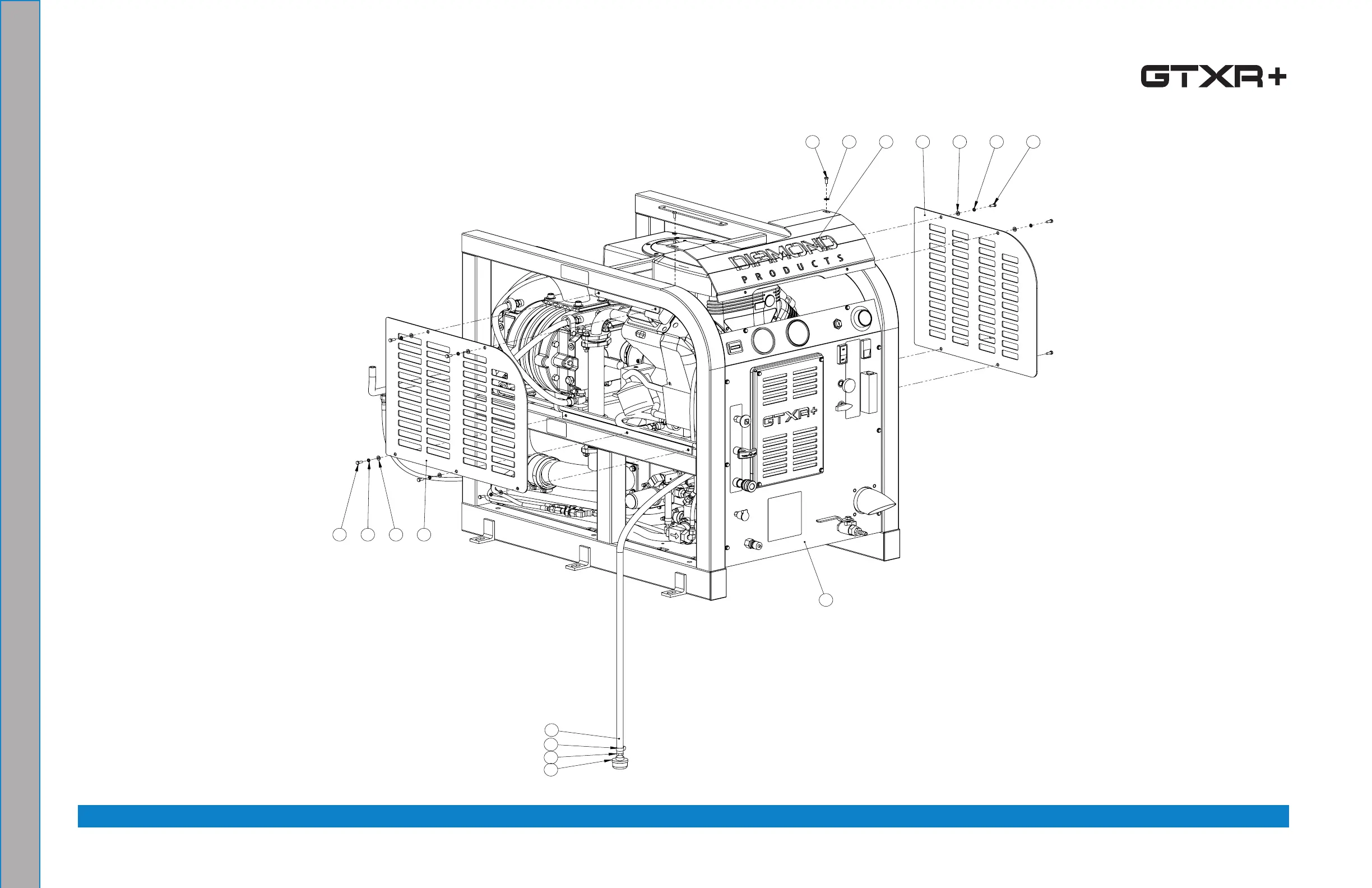

Figure 8-2. Console Assembly - View 1 of 6
610-050-754 Rev. A
3
1437
2X
38
2X
16 38
4X
39
4X
37
4X
1538
5X
39
5X
37
5X
17
34
12
27
NOTES.
1. REFERENCE DRAWINGS:
000-179-047 WIRING DIAGRAM
000-179-048 ELECTICAL SCHEMATIC
000-179-038 FLOW DIAGRAM
LTR REVISION DESCRIPTION CODE DATE BY CHKD APPVD
A RELEASE DRAWING.
NEW
02/14/2018 L.O.L. M.B.B. M.B.B.
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO.
39 9 WASHER, #10 LOCK S. STEEL 000-174-014
38 11 WASHER, #10 FLAT S. STEEL 000-174-001
37 11 SCREW, #10-24UNC x 0.50" LG. HEX HEAD S. STEEL 000-143-126
36 2
RIVET, AB4-3A ALUMINUM POP 1/8" x 1/4" LG. (GRIP RANGE 0.126"-
0.187")
ALUMINUM 000-140-001
35 1 PLATE, MACHINE SERIAL I.D. 1100-H14 000-105-012
34 1 INSERT, #46 (1/4" NPT x 3/8" BARB) BRASS 000-052-102
33 1 HOSE, 5/32" I.D. VACUUM x 82" LG. (BLOWER TO VAC GAUGE) RUBBER 000-068-977
32 1 HOSE, 5/32" I.D. VACUUM x 52" LG. (BLOWER TO LUBE PORT) RUBBER 000-068-978
31 1 HOSE, 5/16" I.D. TEFLON x 18" LG. (HX TO SOL OUT) S. STEEL 000-068-724
30 1 HOSE, 3/8" I.D. THROB x 17.5" LG. (THROB) VARIOUS 000-068-587
29 1 HOSE, 3/8" I.D. RUBBER x 76" LG. (CHEM PRIME TO REC TANK) RUBBER 000-068-972
28 1 HOSE, 3/8" I.D. CLEAR w/ BRAID x 60" LG. (CHEM PUMP TO FLOW) VARIOUS 000-068-971
27 1 HOSE, 3/8" I.D. CLEAR w/ BRAID x 28.5" LG. (CHEM JUG TO FLOW) VARIOUS 000-068-980
26 1 HOSE, 3/4" I.D. RUBBER x 50" LG. (PUMP TO WB) RUBBER 000-068-970
25 1 HOSE, 3/16" I.D. TEFLON x 44" LG. (ORIFICE ASSY TO REC TANK) S. STEEL 000-068-627
24 1 HOSE, 3/16" I.D. TEFLON x 34" LG. (ORIFICE ASSY TO WB) S. STEEL 000-068-203
23 1 HOSE, 3/16" I.D. TEFLON x 24" LG. (HX TO ORIFICE ASSY) S. STEEL 000-068-888
22 2
HOSE, 3/16" I.D. TEFLON x 23" LG. (CHEM PUMP TO PRIME & CHEM
METERING TO SOL OUT)
VARIOUS 000-068-517
21 1 HOSE, 3/16" I.D. TEFLON x 18.25" LG. (PUMP TO GAUGE) S. STEEL 000-068-518
20 1 HOSE, 1/2" I.D. RUBBER x 69" LG. (FRESH WATER IN TO WB) RUBBER 000-068-969
19 1 HOSE, 1/2" I.D. RUBBER x 56" LG. (PUMP TO WB) RUBBER 000-068-968
18 1 HOSE, 1/2" I.D. RUBBER x 20" LG. (WB DRAIN) RUBBER 000-068-967
17 1 FILTER, CHEMICAL INLET HIGH PRESSURE VARIOUS 000-049-118
16 1 COVER, RIGHT SIDE - COATED
ASTM A1008
CS TYPE B
000-041-452
15 1 COVER, LEFT SIDE - COATED
ASTM A1008
CS TYPE B
000-041-451
14 1 COVER, BROW - MACHINE - COATED 5052-H32 000-041-900
13 6 CLAMP, SIZE #5 HOSE S. STEEL 000-033-005
12 5 CLAMP, SIZE #4 MINI HOSE S. STEEL 000-033-003
11 2 CLAMP, SIZE #12 HOSE S. STEEL 000-033-029
10 1 BELT, 9430HD VARIOUS 000-010-124
9 1 ASSEMBLY, WATER BOX VARIOUS 610-010-729
8 1 ASSEMBLY, ORIFICE VARIOUS 610-021-729
7 1 ASSEMBLY, HEAT EXCHANGER - GTXR PLUS VARIOUS 610-005-754
6 1 ASSEMBLY, FRAME VARIOUS 610-001-729
5 1 ASSEMBLY, EXHAUST - GTXR PLUS VARIOUS 610-013-754
4 1 ASSEMBLY, ENGINE VARIOUS 610-004-728
3 1 ASSEMBLY, DASH - GTXR PLUS VARIOUS 610-018-754
2 1 ASSEMBLY, BLOWER VARIOUS 610-002-754
1 1 ASSEMBLY, 318 RESTORATION PUMP VARIOUS 610-007-737
