HydraMaster GTXR+ - Page 97

9-10: Assemblies and Parts Lists

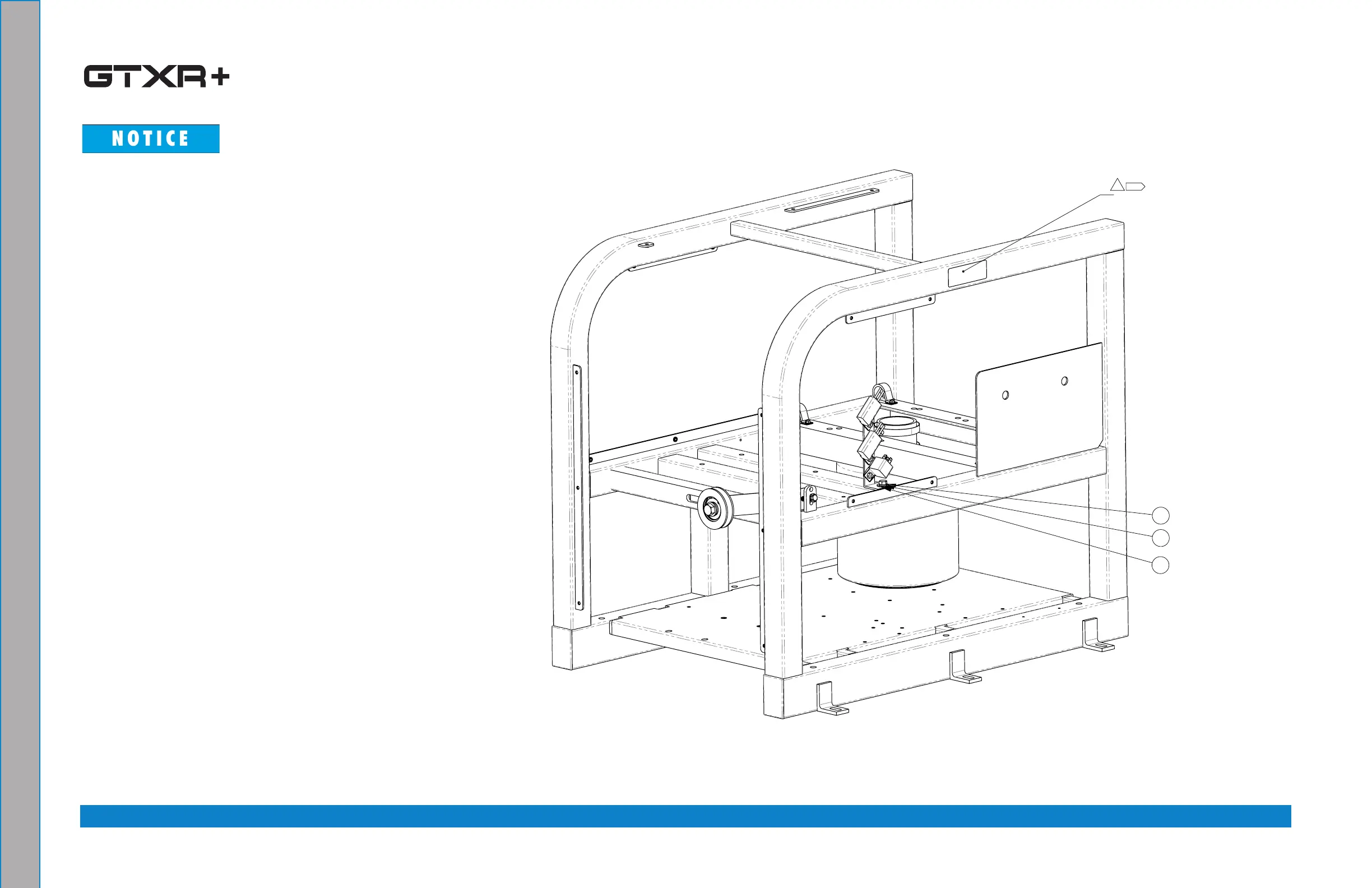

Figure 8-8. Frame Assembly - View 1 of 2
610-001-729 Rev. E
8
13
6
13
5
13
6
13
7
13 7
415
2
1
10
2X
9
2X
11
3X
14
13
3X
3
000-081-327
LABEL, ANSI WARNING
TEXT ONLY
000-081-408,
CLEAN FILTERS DAILY,
HORIZONTAL
1
D
16
17
12
000-081-327
LABEL, ANSI WARNING
TEXT ONLY
1
D
NOTES:
ITEMS ARE PART OF LABEL SET P/N 000-081-039.
1
1
D
D
D
E
REVISIONS
LTR REVISION CODE DATE BY CHKD APPVD
D
REMOVED & NOTATED 081-408 & 081-327;
UPDATED NOTE 1; 055-195 WAS REVISED
ECR #2464
11/15/2013 S.M.W. C.I.R. ECRB
E MOVED 105-012 & 140-001 TO CONSOLE.
ECR #2520
05/15/2014 L.O.L. C.I.R. ECRB
17 1 WASHER, 5/16" LOCK S. STEEL 000-174-018
16 1 WASHER, 5/16" FLAT, USS STEEL 000-174-004
15 1 TRIMLOK, 3/8" x 1/8" RUBBER - BULK RUBBER 000-131-131
14 1 SWITCH, RELAY VARIOUS 000-157-022
13 8 SCREW, #10-24UNC x 0.50" LG. HEX HEAD FLANGE Z/P STEEL 000-143-583
12 1 SCREW, 5/16"-18UNC x 3/4" LG. S. STEEL 000-143-012
11 3 NUT, #10-24UNC NYLOCK S. STEEL 000-094-034
10 2 FUSE, 30 AMP VARIOUS 000-056-011
9 2 FUSE HOLDER, IN-LINE - WEATHERPROOF VARIOUS 000-056-006
8 1 FRAME, COMPLETE - COATED STEEL 000-055-195
7 2 CLAMP, 2" CUSHION LOOP S. STEEL 000-033-067
6 2 CLAMP, 1" CUSHION LOOP VARIOUS 000-033-057
5 1 CLAMP, 1-3/4" CUSHION LOOP VARIOUS 000-033-050
4 2 CAP, 2" X 3" FRAME END POLYETHYLENE 000-027-110
3 1 BRACKET, DUAL HEAT EXCHANGER MOUNTING - LEFT - COATED STEEL 000-015-177
2 1 ASSEMBLY, SILENCER VARIOUS 610-021-724
1 1 ASSEMBLY, IDLER PULLEY VARIOUS 610-021-009
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO.
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:4
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY USED ON
610-001-729
REV
ASSEMBLY, FRAME
E
- - -
BOXXER 318 2012 610-050-724
- - - - - -
- - -- - -
- - - - - -
- - - - - -
C.I.R.
C.I.R.
L.O.L.
DRAWN
CHECKED
APPVD
07/18/2012
07/18/2012
07/18/2012
TOLERANCES
.X=
.1
.XX= .03
.XXX= .010
ANGULAR = 2°
CODE:
176.68
P/N 000-081-327 is part of label set
P/N 000-081-039. Only label sets
can be sold; individual labels not
available for sale.
