HydraMaster GTXR+ - Page 99

9-12: Assemblies and Parts Lists

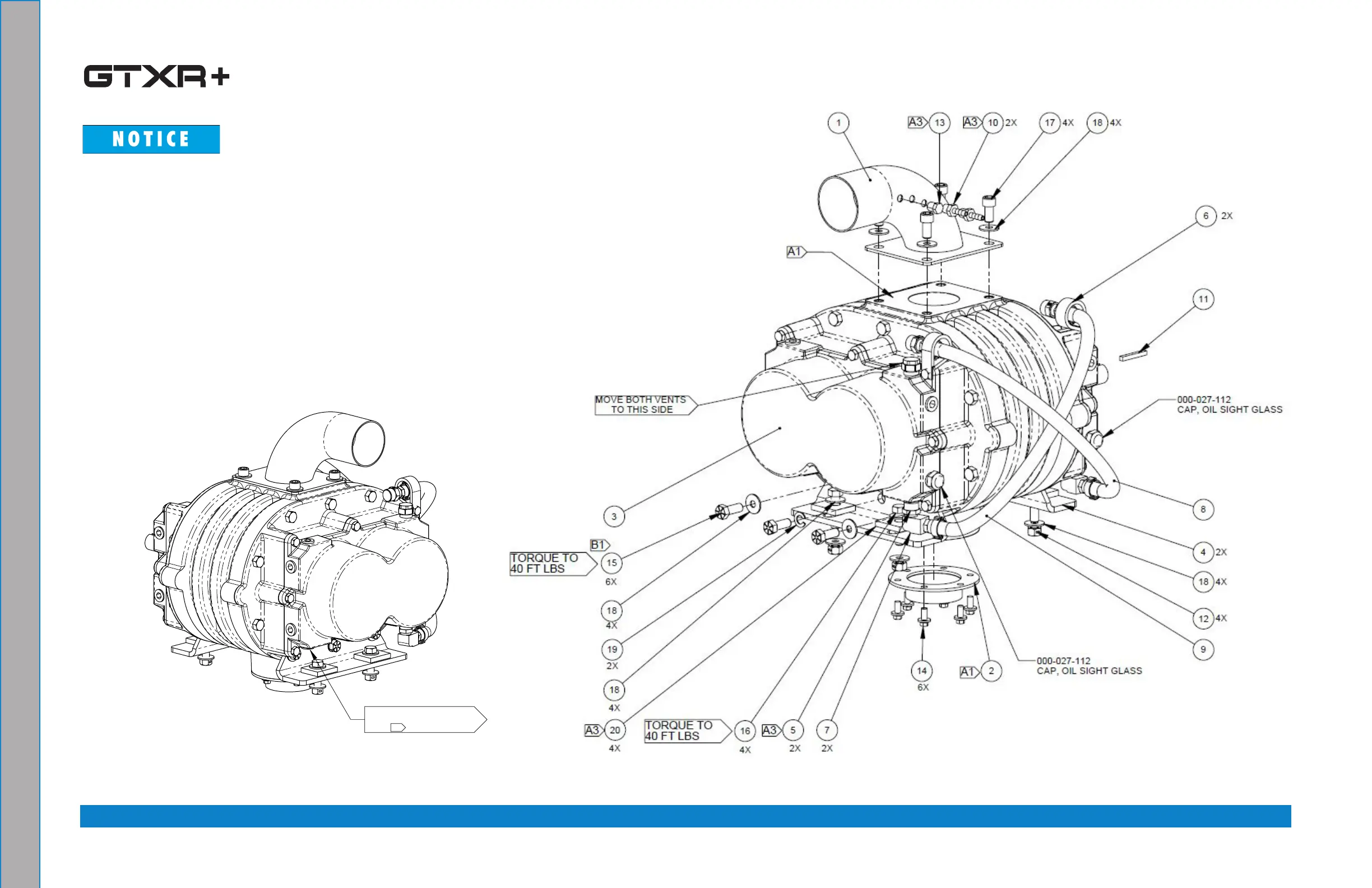

Figure 8-10. Blower Assembly - View 1 of 2
610-002-754 Rev. B
See Figure 9-1 for adhesive/sealant information.
0.75±0.25
0.75±0.25
0.188±0.125
BLOWER
ENGINE
COUPLER
B1 2X
TORQUE TO
30 FT LBS
B1 3X
B1 2X
TORQUE TO
30 FT LBS
6X
B
B
REUSE MAGNETIC PLUG
(REMOVED TO INSTALL
HOSE) A4
1 13 10 17 18
6
11
8
4
18
12
9
214
75
20
15
18
3
000-027-112
CAP, OIL SIGHT GLASS
000-027-112
CAP, OIL SIGHT GLASS
MOVE BOTH VENTS
TO THIS SIDE
18
16
A1
A3
A3
A3 A3
2X 4X
2X
4X
4X
2X2X4X
4X
4X
4X
6X
4X
19
2X
NOTES:
1. SEE ENG-45975 OR ADHESIVE MATERIAL
PRODUCTION LINE REFERENCE CARD
FOR SEALANT INFORMATION.
TORQUE TO
40 FT LBS
TORQUE TO
40 FT LBS
A1
B1
2X
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO.
20 4 WASHER, BLOWER FEET - COATED ASTM A36 000-174-068
19 2 WASHER, 3/8" LOCK S. STEEL 000-174-057
18 16 WASHER, 5/16" FLAT, USS STEEL 000-174-004
17 4 SCREW, 3/8"-16UNC x 0.75" LG. SOCKET HEAD STEEL 000-143-094-1
16 4 SCREW, 3/8"-16UNC x 1.50" LG. HEX HEAD GRADE 8 STEEL 000-143-200
15 6 SCREW, 3/8"-16UNC X 1.00" LG. HEX HEAD - GRADE 8 STEEL 000-143-018
14 6 SCREW, 1/4"-20UNC x 0.50" LG. WHIZ LOCK S. STEEL 000-143-141
13 1 PLUG, 1/8" NPT BRASS 000-106-001
12 4 NUT, 3/8"-16UNC HEX 2 WAY LOCKING STEEL Z/P 000-094-015
11 1 KEY, 3/16" X 1 1/2" LONG STEEL 000-077-011
10 2 INSERT, #23 (1/8" NPT x 3/16" BARB) BRASS 000-052-293
9 1 HOSE ASSEMBLY, 3/8" x 17" LG. DRAIN VARIOUS 000-068-794
8 1 HOSE ASSEMBLY, 3/8" x 17" LG. DRAIN VARIOUS 000-068-794
7 2 ELBOW, 1/4" NPT STREET BRASS 000-052-085
6 2 CLAMP, 1" CUSHION LOOP VARIOUS 000-033-057
5 2 BUSHING, 3/8" NPT x 1/4" FPT BRASS 000-052-061
4 2 BRACKET, DOMINATOR 4005 MOUNTING - COATED VARIOUS 000-015-032
3 1 BLOWER, 4005 DOMINATOR STEEL 000-111-145
2 1 ADAPTER BLOWER OUTLET 2.5 - COATED STEEL 000-001-871
1 1 ADAPTER BLOWER INLET - COATED VARIOUS 000-001-071
LTR REVISION DESCRIPTION CODE DATE BY CHKD APPVD
A RELEASE DRAWING
NEW
2/9/2018 M.B.B. L.O.L. M.B.B.
B ADD 174-057. 174-004 QTY WAS 18
BETA
03/12/2018 M.B.B. L.O.L. L.O.L.
D
C
B
A
B
C
D
1 2 3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
A
ASSEMBLY, BLOWER
B
REV
610-002-754
03/12/2018
03/12/2018
02/09/2018
USED ON NEXT ASSY
APPLICATION WEIGHT:
PART NUMBER
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
BREAK ALL SHARP EDGES 0.005-.015
SIZE
C
11015 47th Avenue West,
Mukilteo, Washington 98275
PROPRIETARY INFORMATION
SHEET 1 OF 1
SCALE: 1:3
APPVD
CHECKED
DRAWN
125
MACHINE
FINISH
M.B.B.
L.O.L.
L.O.L.
GTXR+
- - -- - -
610-050-754
- - -- - -
- - -- - -
- - - - - -
TOLERANCES
.X= .1
.XX= .03
.XXX= .010
ANGULAR = 2°
CODE: 126.47
