MAXX 450D/470/Diesel Page 1-37
HydraMaster Corporation

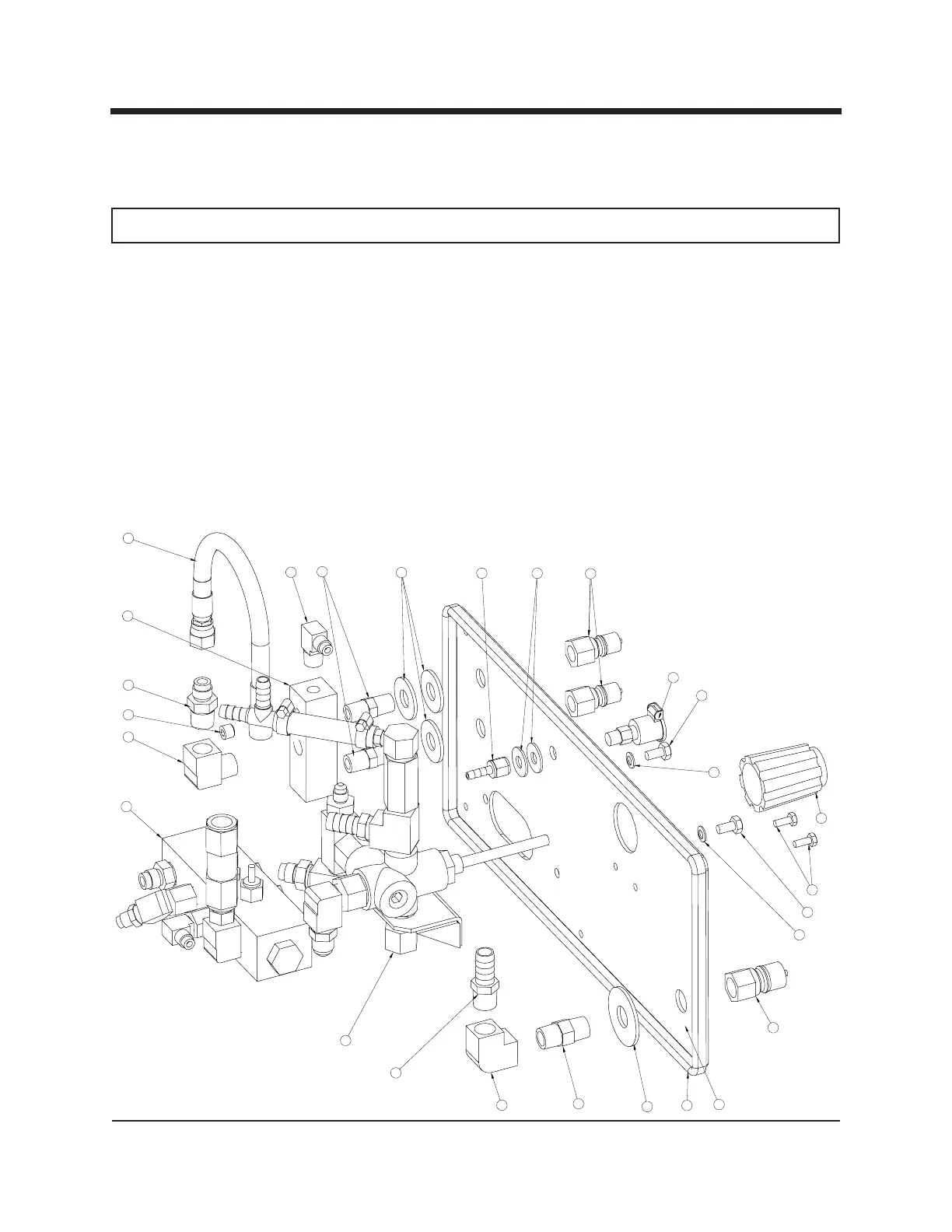

Figure 1-13 Lower Dash Plumbing Connection Panel Assembly
D-4357 Rev D
Item Part Number Description Qty
Dash Assembly Parts List
7
13
2
14
12
9
5
16
17
17
19
4
11
8
3
23
1
15
24
21
20
10
6
16
22
19
18
31 000-033-057 Clamp, 1" Cushion Loop 1
32 000-052-089 Elbow, 1/8" NPT Female 2
33 000-143-328 Screw, #10-32UNF x 1/2" Lg. Phillips Head 2
34 000-174-014 Washer, #10 Lock 2
35 000-174-057 Washer, 3/8" Lock 1
36 000-174-032 Washer, 3/8" Flat 1
37 000-052-530 Nipple, 1/8" MNPT x 1/4" SAE 1
