HydroPoint WeatherTRAK 2-Wire - Step 1: Controller Hardware Installation; Installation Procedure Overview

WeatherTRAK 2-Wire Controller Installation Guide
10
©
2020 HydroPoint Data Systems Inc. All rights reserved. 800.362.8774 • hydropoint.com
Hardware Installation
Installation Procedure

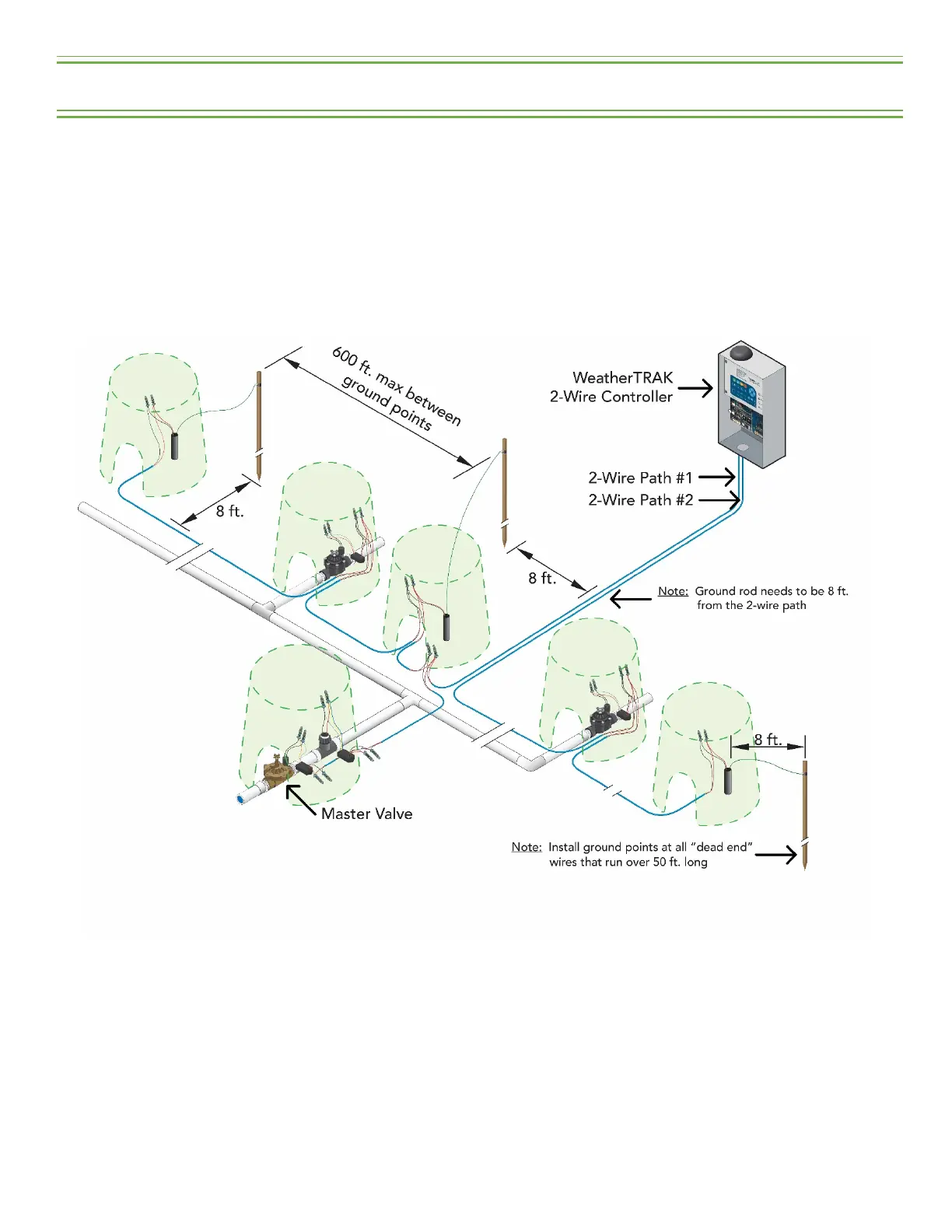

The drawing below shows a typical two path wiring scenario with a master valve. The master valve can either
be installed on the 2
- ‐ wire path or directly to the WeatherTRAK 2-wire controller using a conventional wiring
approach.
