The direct connect screen defaults to configuring direct connect for master valves. Ensure that the screen
reads Master, then press  to underline the correct master valve connection (MV1, MV2, MV3, MV4), as
illustrated below.
Setup: 15 10:43am
Master 1 2 3 4
Valve D1 2W 2W 2W
DI=Direct 2W=2-Wire
_____ _____
Press + or - to select DI (direct connection).
Press RUN to save and exit.
Programming a Direct Connect Flow Sensor

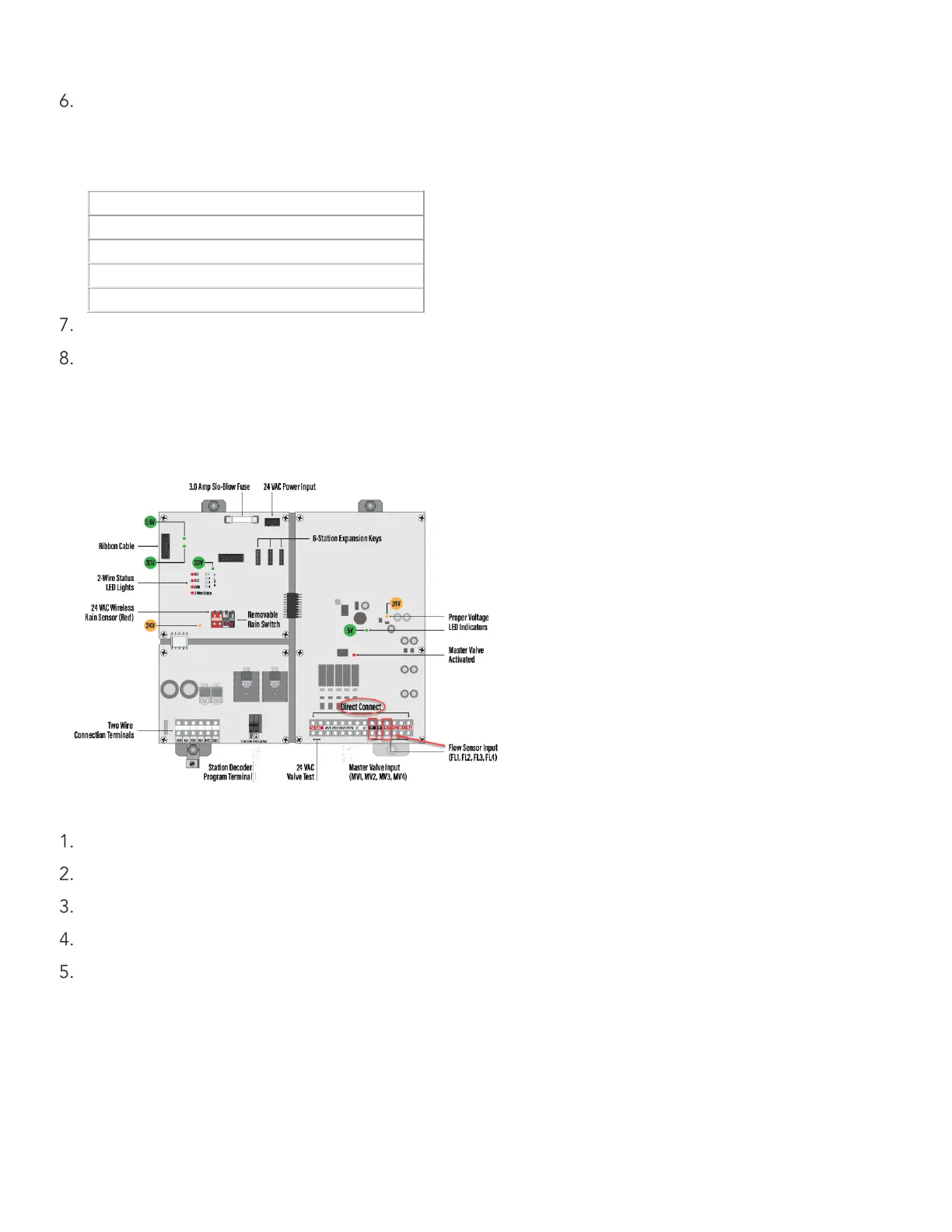

Flow sensors can be programmed for direct connection to ports located on the mini-chassis as illustrated
below.
Plug the flow sensor wires into the ports located on the mini chassis board as illustrated above.
Press SETUP.
Press  until CONFIGURE H2O 2-WIRE displays (setup 15).
Press + or - to select Configure Direct Connect.
Press SELECT to enter.
