Hypertherm Command THC - Page 122

POWERMAX SETUP
CommandTHC for X-Y Table Instruction Manual 3g-3
11

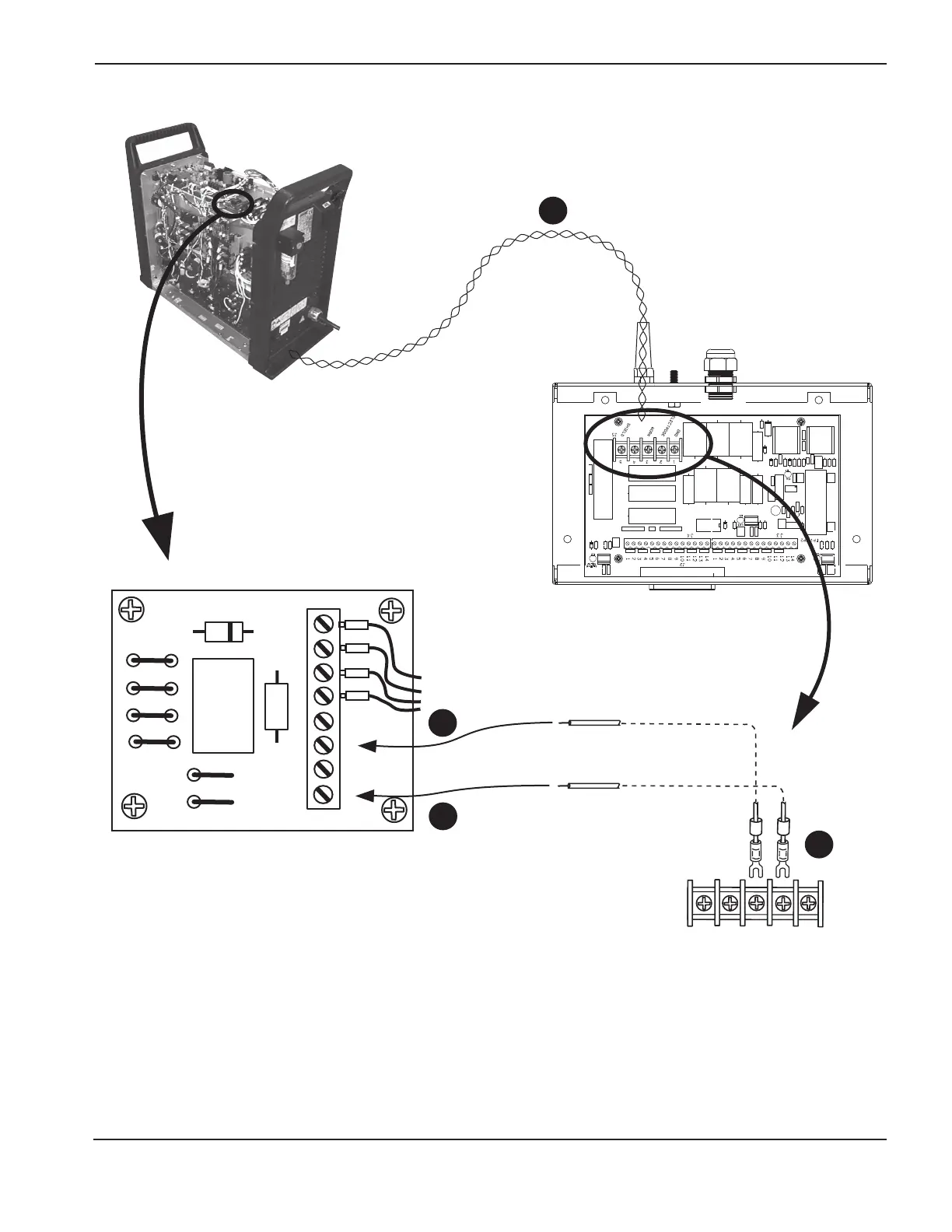

Figure 3g-1 Powermax800, Powermax900 and Powermax 1100
electrode and work lead arc voltage wire connections
A
B
+
ARC
VOLTAGE
-
J1
1
8
6
C
THC.72
2
3
1
4
5
J5
+
-
D
Plasma interface
assembly
Machine interface board
