PARTS LIST
CommandTHC for X-Y Table Instruction Manual 6-7
11

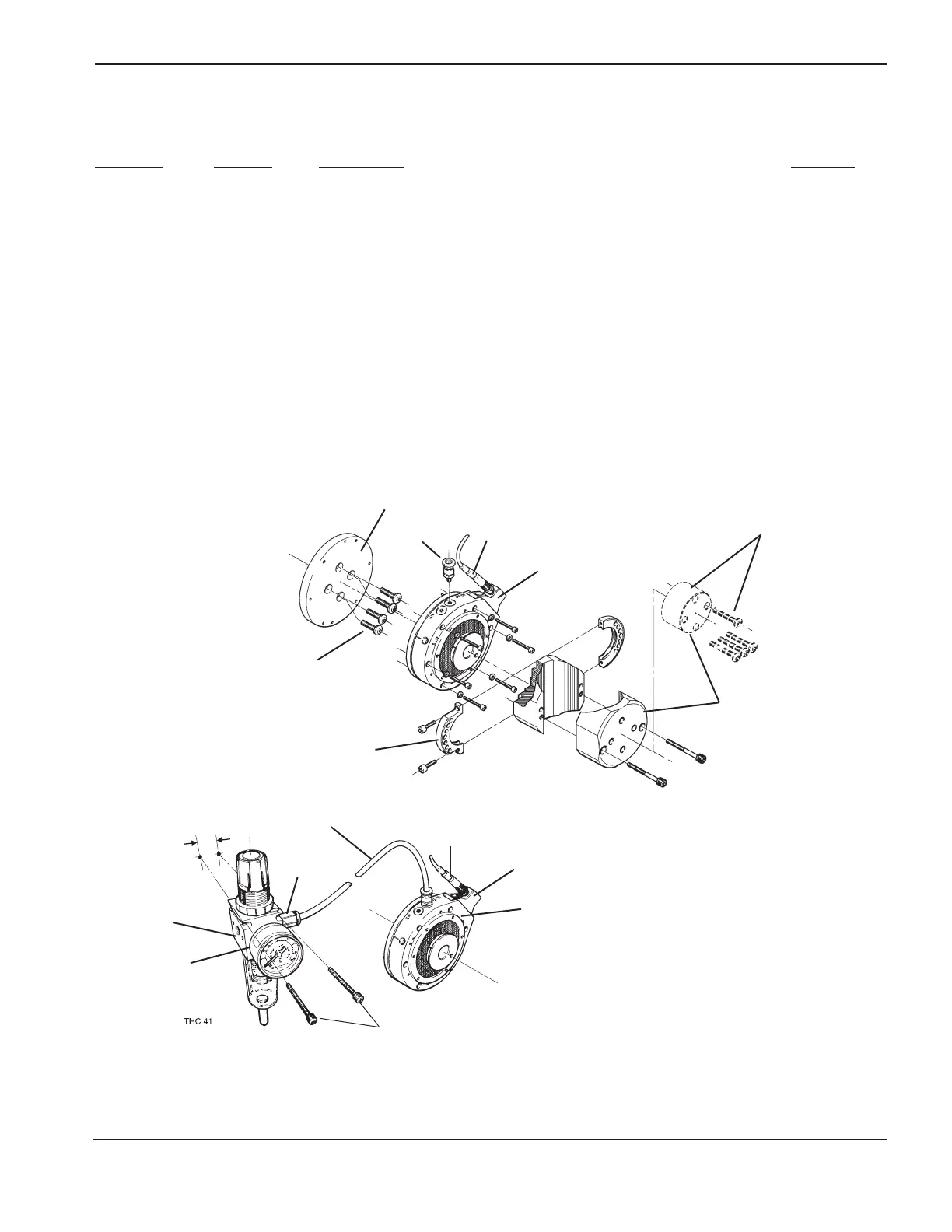

Figure 6-6 X-Y lifter breakaway kit
X-Y lifter breakaway kit – optional
Index no. Part no. Description Quantity
128281 Kit, X-Y lifter torch breakaway 1
1 004774 Bracket, breakaway X-Y fiberglass 1
Screw 6
2 075509 Socket cap, 1/4-20 X 1/2 inch hex BTN S/Z 4
3 027574 Breakaway, Command THC 1
3a 123596 Cable: CMD THC lifter torch breakaway 1
3b 127155 Proximity switch 1
3c 127156 Collar 1
4 015317 Connector, male 10-32 X 1/4 inch, push In tube 1
5 046078 Tubing, 1/4 inch O.D. Synflex 10 ft. (3m)
129361 Regulator/Filter assembly 1
6 011039 Filter/Regulator 1
7 011038 Gauge, pressure 150 PSI (10.2 Bar) maximum 1
8 015285 Adapter, 1/8 inch NPT X 1/4 inch push-in tube 1
1
4
2
3c
Torch Mounting
Block Kit
(See Figure 6-5)
Customer Supplied Hex screws (2)
8-32 X 1-1/2 inch (4 mm x 40 mm)
Spacer and hex screws are not
used if breakaway is installed.
3
5
8
6
7
3a
3a
3b
3b
To Next Page
