Hypertherm Command THC User Manual

MAINTENANCE
CommandTHC for X-Y Table Instruction Manual 5-11
9

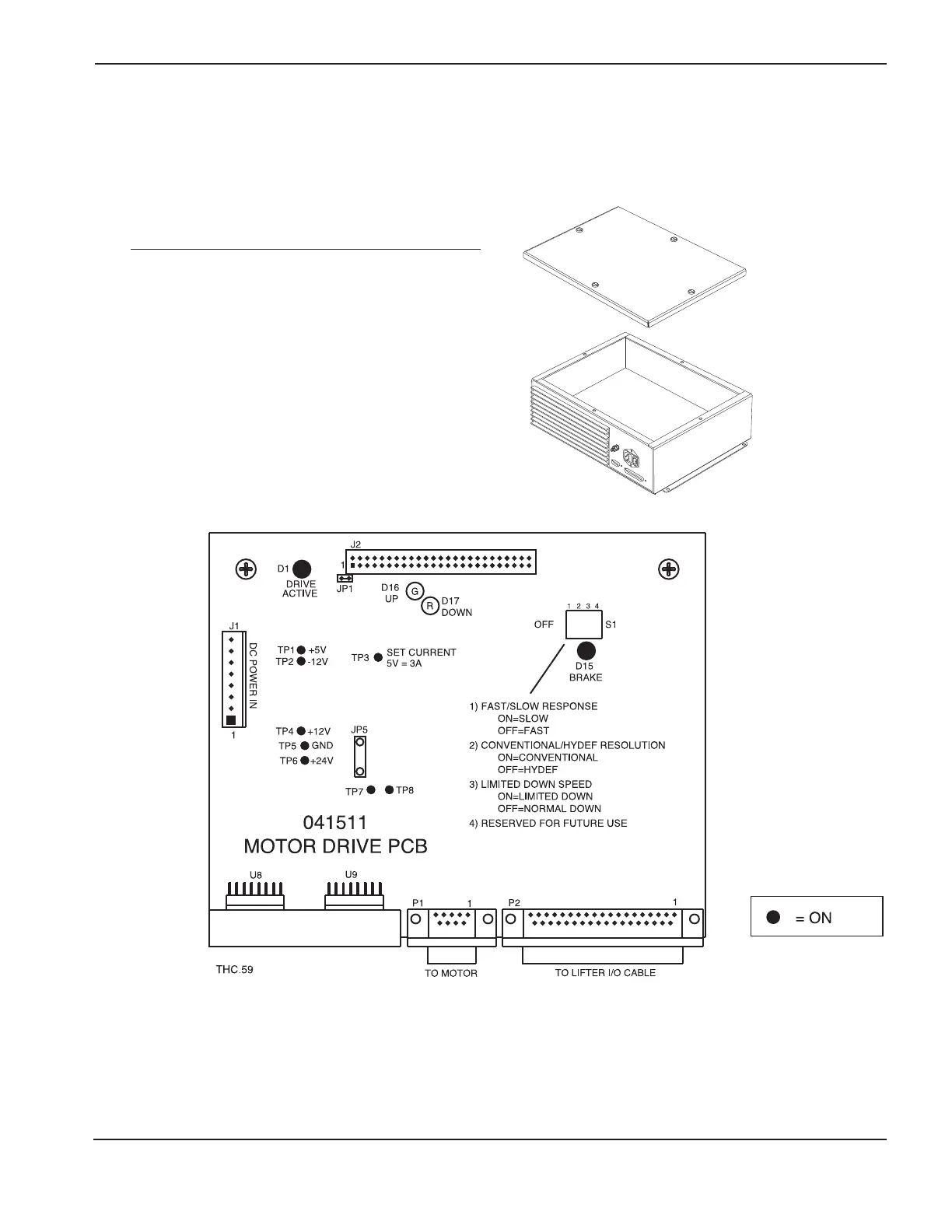

Figure 5-5 Motor drive board
Motor drive board status lights during normal power-up
The following LEDs are located on the motor drive PCB inside the control module. See Figure 5-5.
LED Signal function Status
D1 Drive active On
D15 Brake released On*
D16 Up Off
D17 Down Off
* On = brake is unlocked
Off = brake is on
