Hypertherm Command THC - Appendix Aparts LIST for OLDER SYSTEMS; Rail Lifter

APPENDIX A – PARTS LIST FOR OLDER SYSTEMS
a-2 CommandTHC for X-Y Table Instruction Manual
11
1 rail lifter

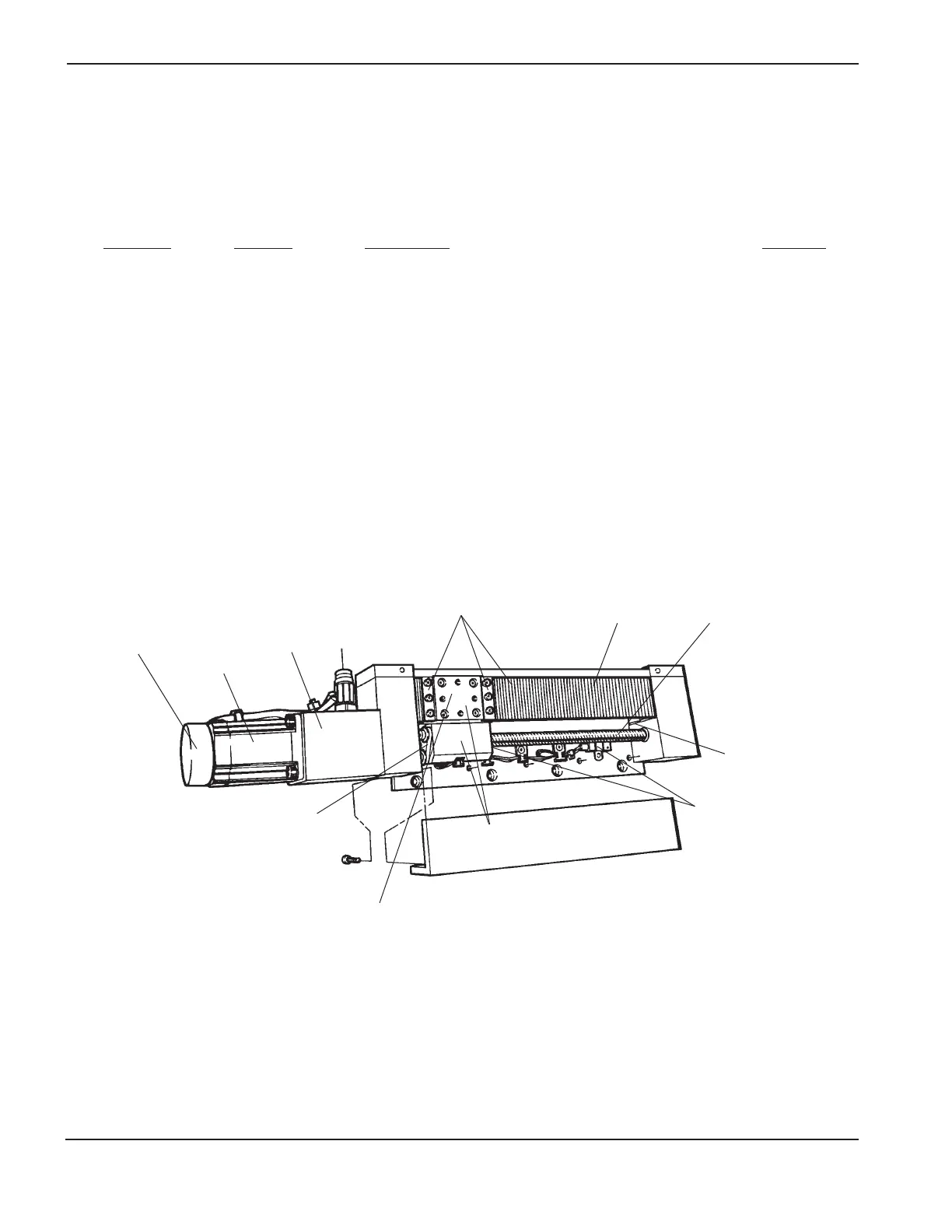

1 rail X-Y lifter assembly
Index no. Part no. Description Quantity
128050 X-Y lifter assembly 1
1 128726 Encoder replacement Kit 1
2 128727 Motor/Encoder replacement Kit 1
3 027550 Brake, power off 1
4 027552 Driving block 1
5 027551 Rail and block, bearing 1
6 129266 Assembly, leadscrew standard 1
7 128189 Band seal kit (29") 1
8 128190 Band roller kit 4 per lifter
9 005195 Limit switch 2
6
5
(Located under
seal band)
3
(inside)
8
1
2
7
Torch mounting block
kit mounting location (Fig. 6-5)
4
9 Second limit switch is
located under driving
block
8
