MAINTENANCE
5-10 CommandTHC for X-Y Table Instruction Manual
5
Table 5-2 AC power and fuses
AC Input Filter Power Supply
Power Fuses AC Power In
Ground (chassis) — TB1-1
115 VAC (N) 3.15A, 250V TB1-2
115 VAC (L) 3.15A, 250V TB1-3
Ground (chassis) — TB1-1
230 VAC (N) 3.15A, 250V TB1-2
230 VAC (L) 3.15A, 250V TB1-3

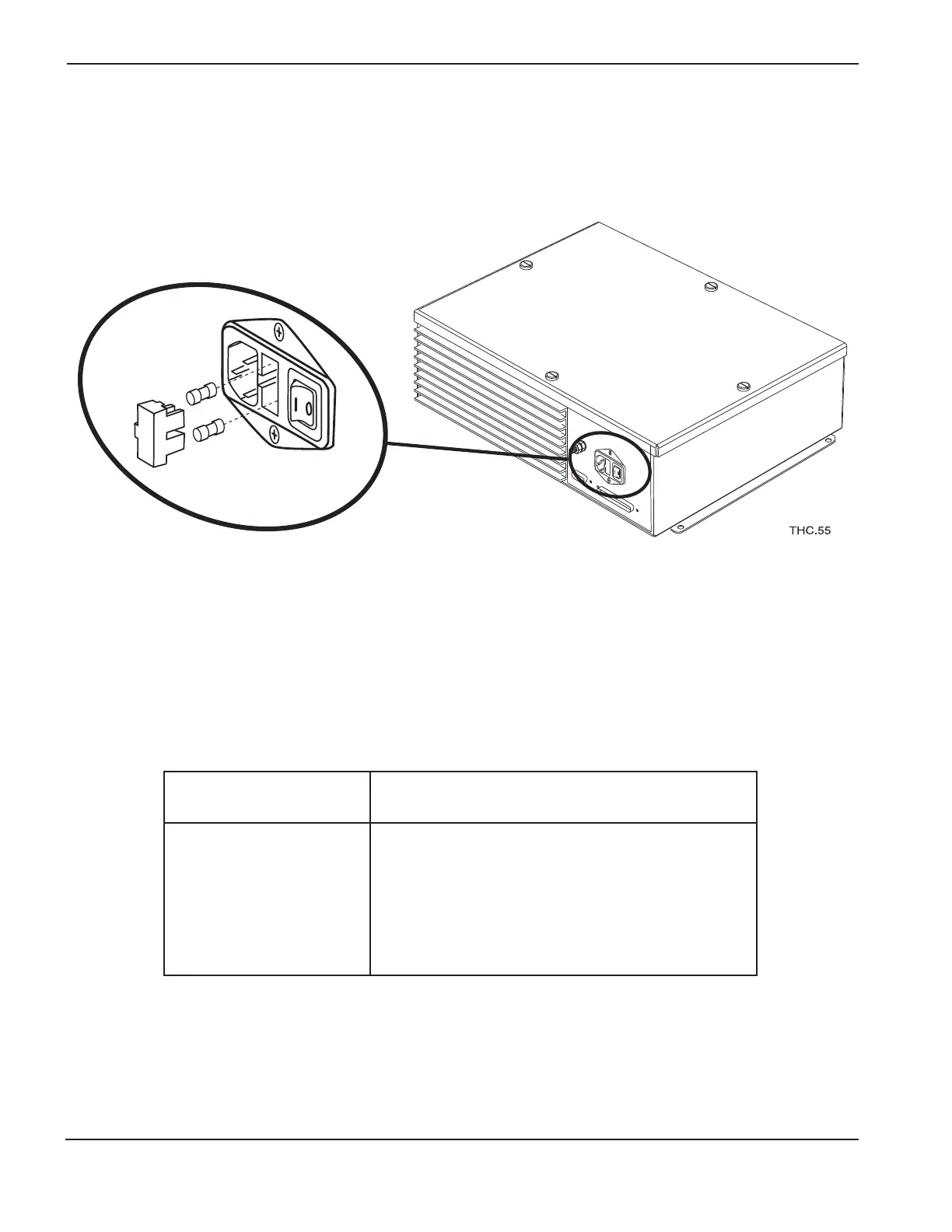

Figure 5-4 AC power and fuses
AC power distribution
Check fuses. Remove fuses by gently prying out the fuse holder. See Figure 5-4 and Table 5-2.
