2-8 CommandTHC for X-Y Table Instruction Manual

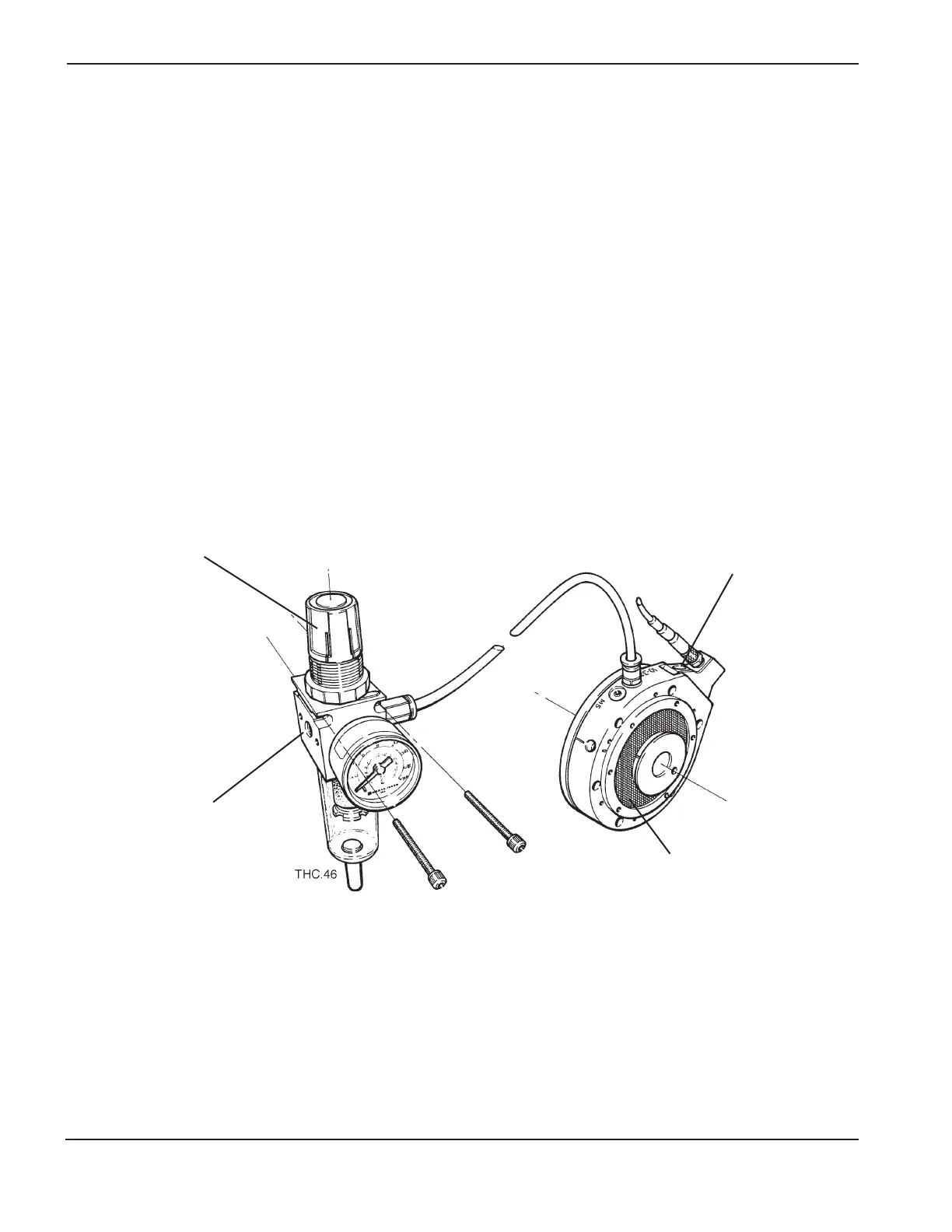

Figure 2-6 X-Y lifter breakaway option
X-Y lifter breakaway option
Electrical
Pressure switch ................................................................CNC emergency stop circuit voltage
Breakaway control function
Shop air pressure............................................................100 psi (6.9 bar) maximum
Size
Breakaway width ............................................................3.8 inches (97 mm)
Breakaway height (thickness)........................................2.25 inches (57 mm)
Air filter/regulator height ................................................7.06 inches (179 mm)
Air filter/regulator width ................................................1.56 inches (40 mm)
Air filter/regulator depth (from gauge to back)..........3.125 inches (79 mm)
Weight
Breakaway..........................................................................1.9 pounds (0.86 kg)
Air filter/regulator..............................................................1.0 pounds (0.45 kg)
Pressure switch
Breakaway unit
Air pressure
inlet port
Air filter/regulator

Hypertherm Command THC Specifications

General

Brand	Hypertherm
Model	Command THC
Category	Cutter
Language	English
