Hypertherm Command THC User Manual

SETUP
3-26 CommandTHC for X-Y Table Instruction Manual
11
Part number Length
123197 5 ft./1.5 m
123198 10 ft./3 m
123199 15 ft./4.6 m
123200 20 ft./6.1 m
123020 25 ft./7.6 m
123201 30 ft./9.1 m
123202 35 ft./10.6 m
Part number
Length
123203 40 ft./12.2 m
123204 45 ft./13.7 m
123021 50 ft./15.2 m
123205 75 ft./23 m
123206 100 ft./30.5 m
123207 125 ft./38 m
123208 150 ft./45.6 m
THC.83
Pin Pin
number Color Signal name Function number
5 Output Red Motor Phase A + Powers lifter motor, phase A+. 5 Input
4 Black Motor Phase A – 4
9 Output Red Motor Phase A + Powers lifter motor, phase A–. 9 Input
8 Black Motor Phase A – 8
3 Not connected 3
7 Output Red Motor Phase B + Powers lifter motor, phase B+. 7 Input
6 Black Motor Phase B – 6
2 Output Red Motor Phase B + Powers lifter motor, phase B–. 2 Input
1 Black Motor Phase B – 1

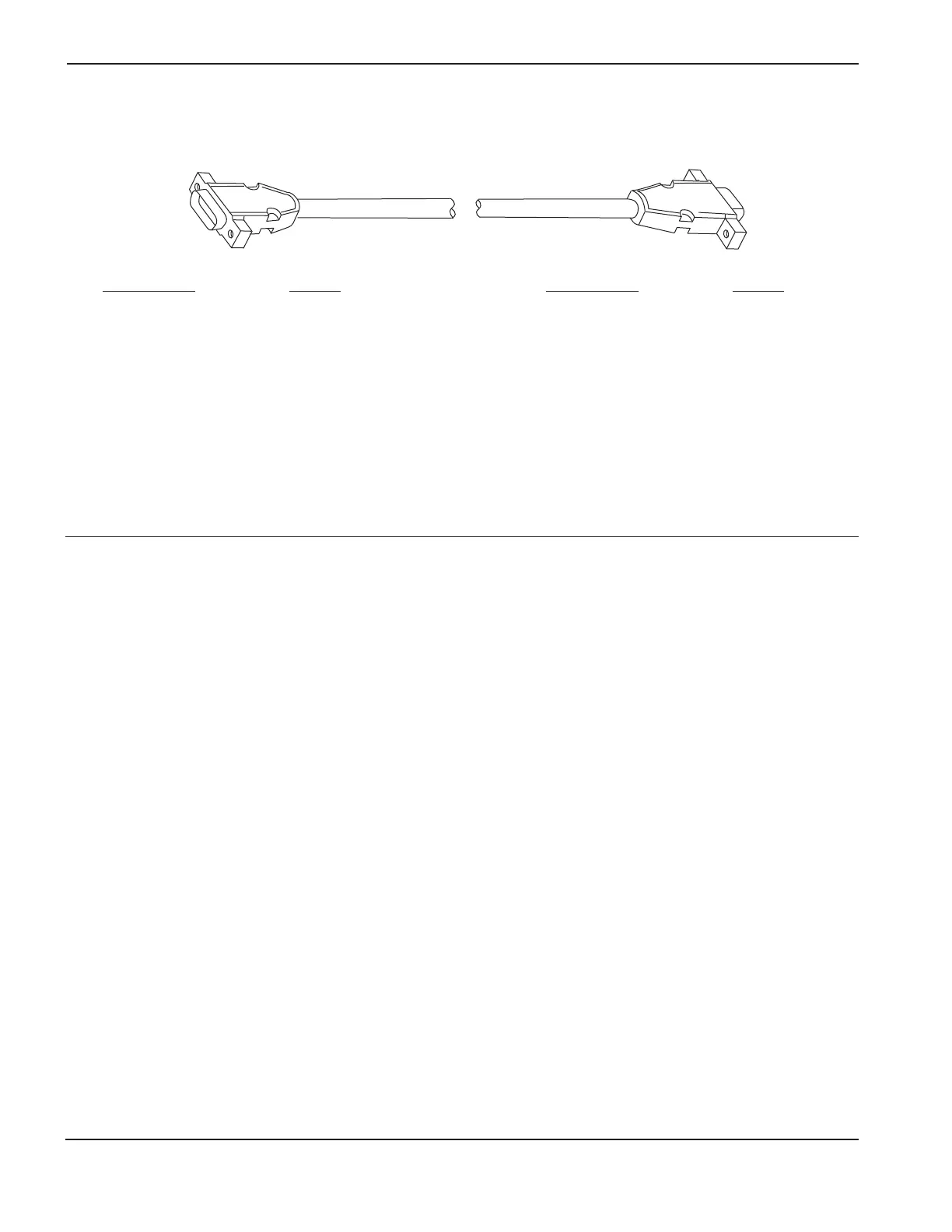

Figure 3-18 Motor drive cable – part numbers and signal list
Motor drive cable
To THC
control
module
To THC lifter
motor
