Hypertherm Command THC User Manual

PARTS LIST
6-2 CommandTHC for X-Y Table Instruction Manual
10
THC control module
Index no. Part no. Description Quantity
053018 THC control module 1
1 002261 Enclosure, THC control module 1
129067 Heatsink SA, THC control module 1
2 004705 Heatsink, THC
3 005186 Module, power entry, fused filter 1
4 008971 Fuse, T,3.15 Amp H 250V 5 mm x 20 mm 2
5 229070 Power source, 130W (see Figure 6-2) 1
6 041511 PCB assembly, motor driver (see Figure 6-2) 1
7 128407 PCB assembly, control (see Fig. 6-2) 1
081061 Firmware, real-time microprocessor 1
081062 Firmware, interface microprocessor 1
8 123254 Cable, THC 50/C ribbon (not shown) 1
9 129066 Harness wiring THC (not shown) 1

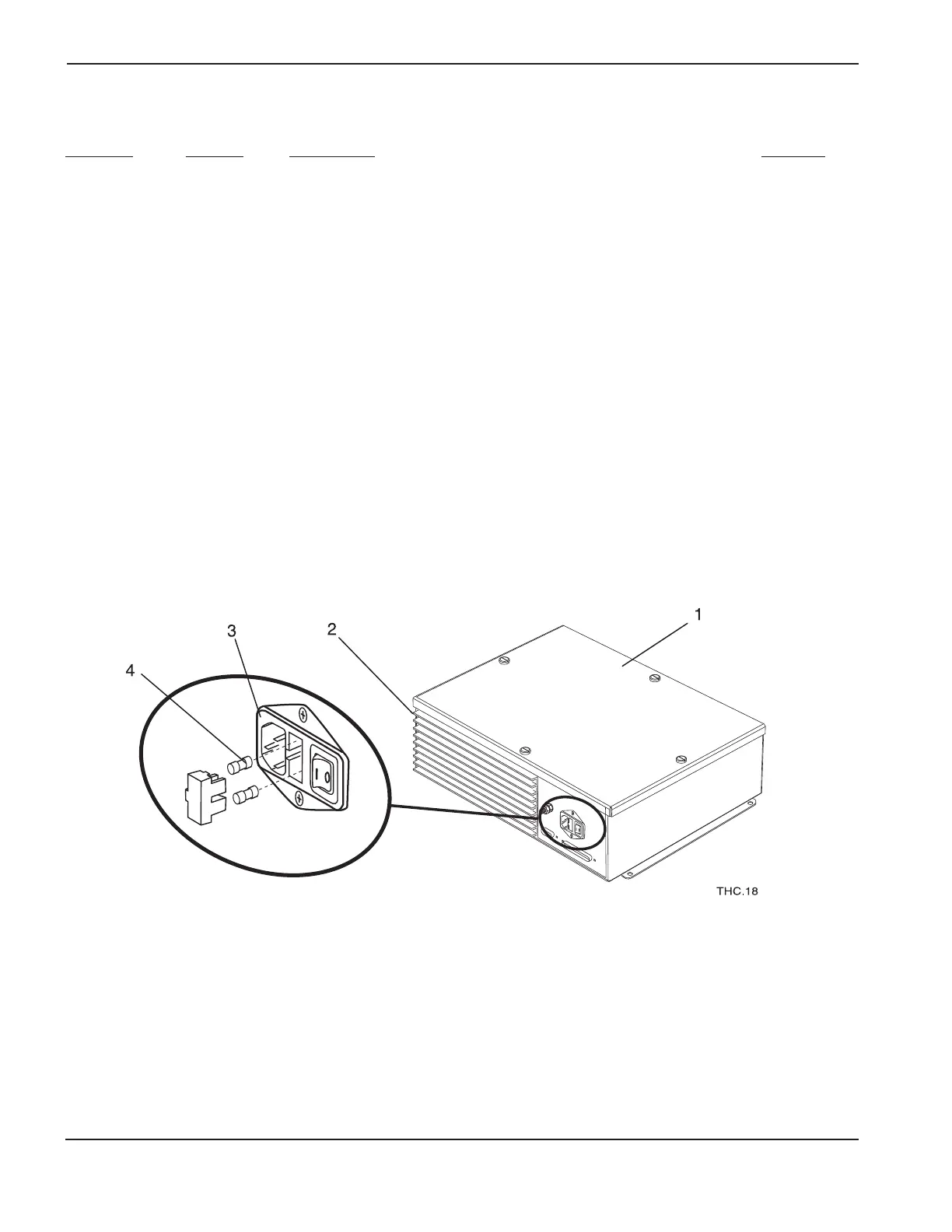

Figure 6-1 THC control module exterior
