SETUP
CommandTHC for X-Y Table Instruction Manual 3-17
11
*DIP Switch Settings
12 34
Plasma Fast/Slow Conv/HyDef Limited Down HPR
Systems Response Resolution Speed pierce
complete
HD3070 OFF OFF OFF OFF
HT2000 OFF ON ON OFF
HT2000LHF OFF ON ON OFF
MAX100 ON ON ON OFF
MAX200 OFF ON ON OFF
HT4001 ON ON ON OFF
HT4400 ON ON ON OFF
HD4070 ON OFF OFF OFF
Powermax ON ON ON OFF
HPR/HSD ON ON ON ON
DIP switch positions
1 Fast/Slow response
• ON slows response speed of lifter by approximately one half in both up and down directions.
• OFF enables "normal" or fast response.
2 Conventional/HyDefinition resolution
• ON enables the THC to respond to larger voltage error changes.
• OFF enables the THC to respond to smaller error voltage changes.
3 Limited down speed
• ON enables lifter to move up at the normal speed, but down at slower speed. This is designed to help where
corner diving is a problem.
• OFF enables the lifter to move up and down at the "normal" speed.
4 HPR pierce complete
* These are recommended switch settings. Since cutting machine installations vary, these switches can be
adjusted in any combination to achieve desired results.

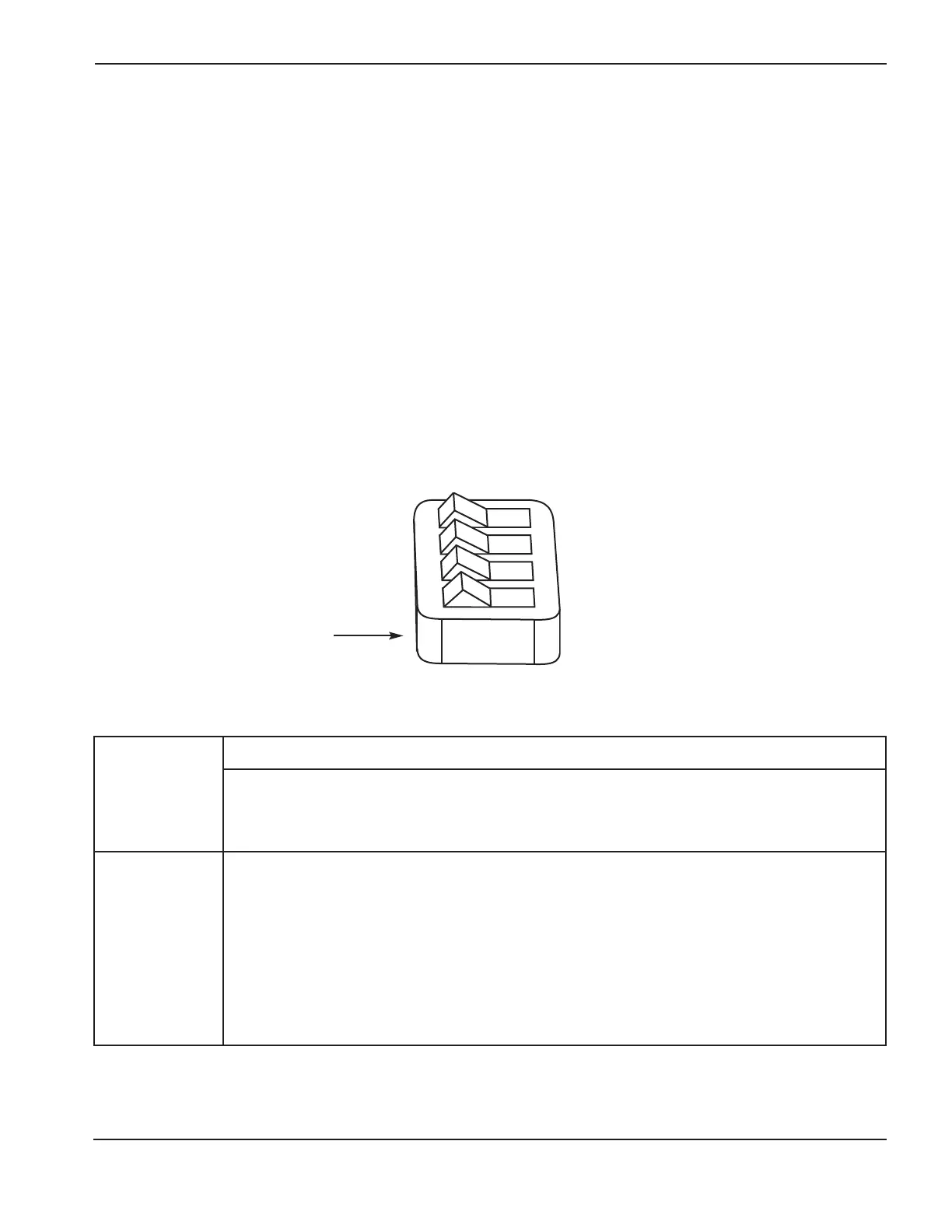

As shipped
DIP switch ON/OFF positions
OFF
