HSD130 SETUP
CommandTHC for X-Y Table Instruction Manual 3j-7
11

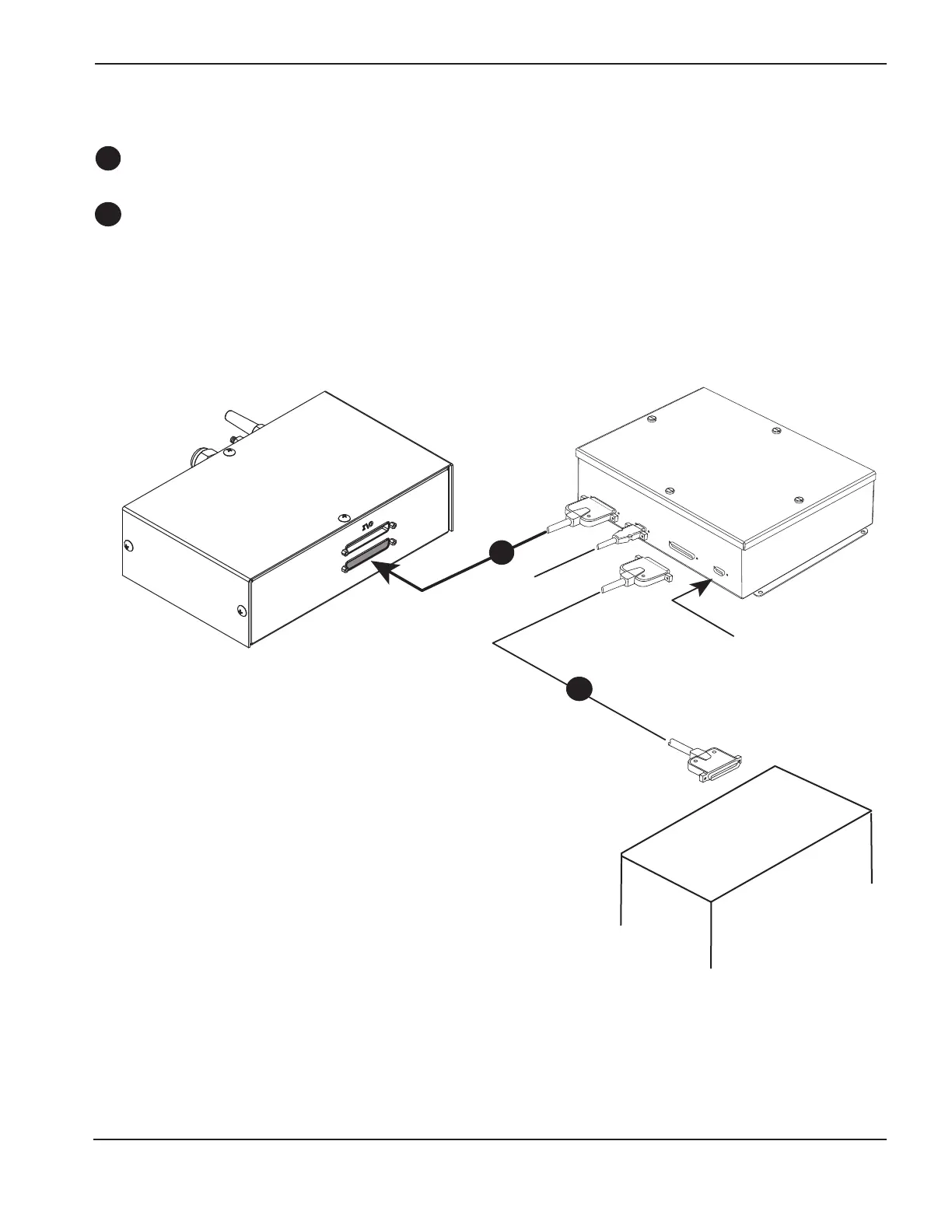

Connect the plasma interface assembly to the THC control module
Install the plasma interface cable (see page 3-22 for part numbers) from the plasma interface assembly to the
THC control module.
Install the machine interface cable (see page 3-23 for part numbers) from the plasma interface assembly to the
CNC.
B
A
Plasma Interface
Assembly
CNC
THC Control
Module
To pendant
(optional)
A
B
