SETUP
3-24 CommandTHC for X-Y Table Instruction Manual
5

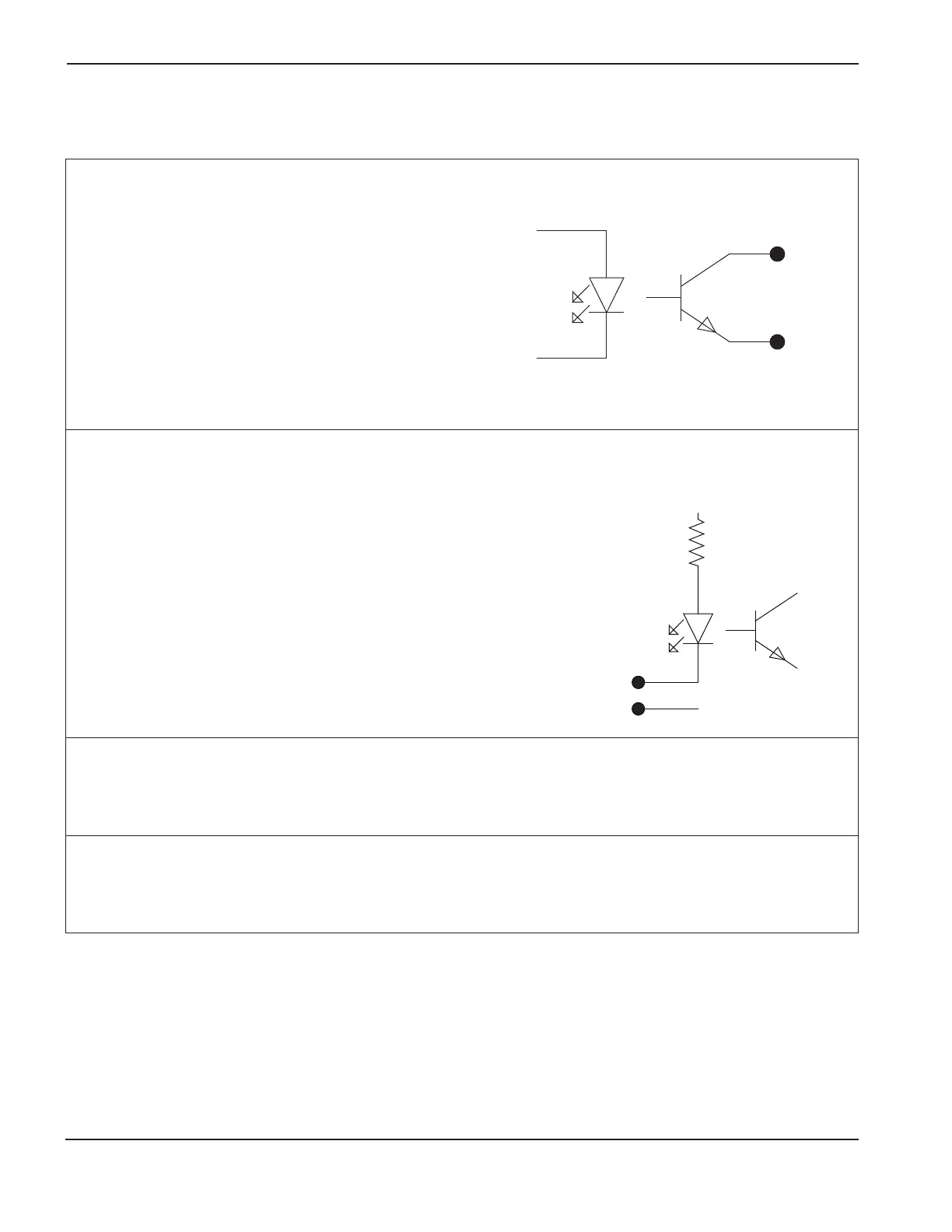

Notes to Figure 3-16
Note 1. All THC outputs are optically coupled
transistors with maximum ratings of 24 VDC
and 10 mA.
Note 2. All THC inputs are optically isolated 12 VDC signals.
Signals are made active by sinking 3 mA per input.
Note 3. Jumper required in CNC. See instructions on page 3-14.
Note 4. Stop switch required in CNC. See instructions on page 3-14.
12 VDC
3,3 K
12V Return
Input
+
–
THC input
THC output
24 VDC maximum
10 mA maximum
Output
+
–
