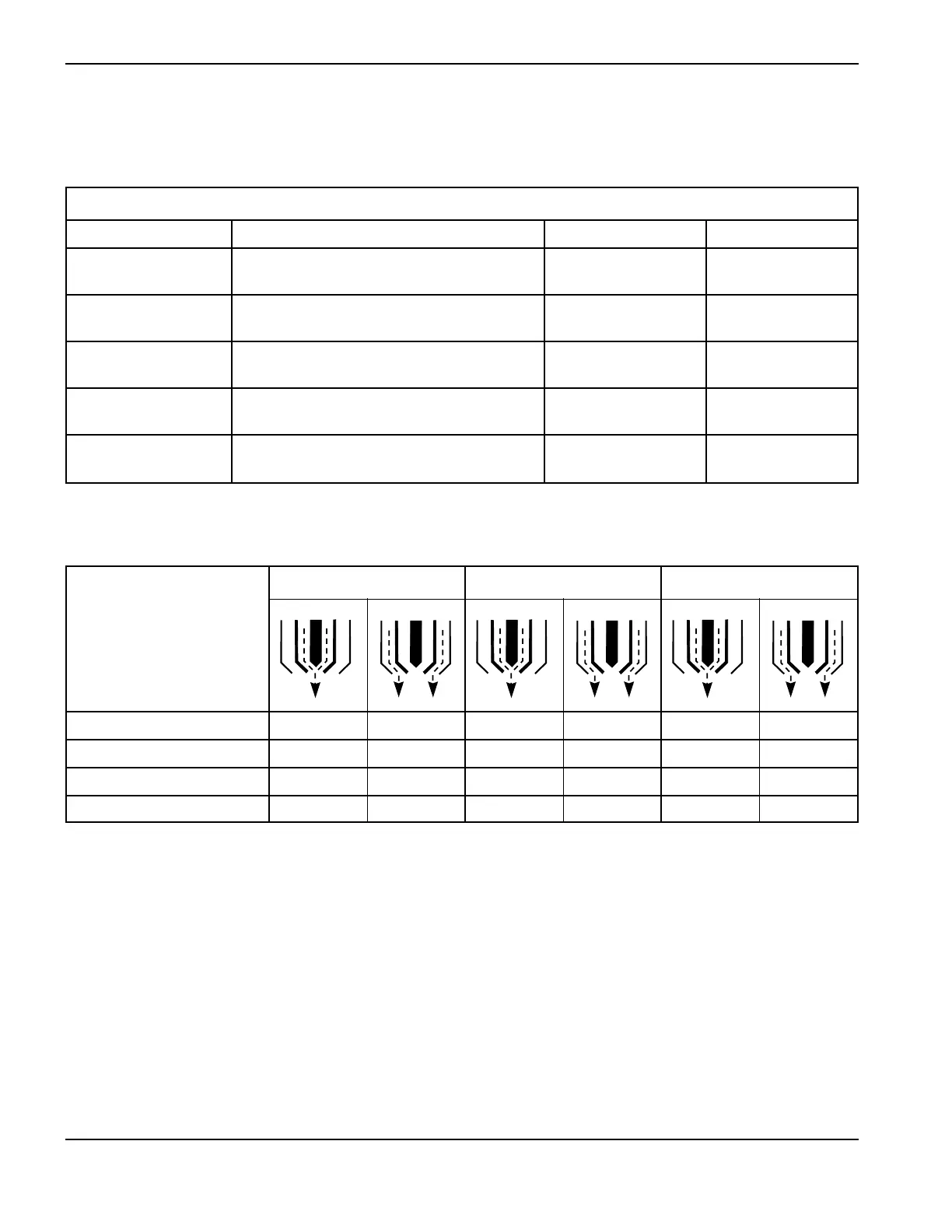

Gas quality and pressure requirements
Quality Pressure +/- 10% Flow rate
O
2
Oxygen 99.5% pure 827 kPa / 8.3 bar 4250 l/h 150 scfh
Clean, dry, oil-free 120 psi
N
2
Nitrogen 99.99% pure 827 kPa / 8.3 bar 7080 l/h 250 scfh
Clean, dry, oil-free 120 psi
Air Clean, dry, oil-free 827 kPa / 8.3 bar 7080 l/h 250 scfh
120 psi
H35 Argon-hydrogen 99.995% pure 827 kPa / 8.3 bar 4250 l/h 150 scfh
(H35 = 65% Argon, 35% Hydrogen) 120 psi
F5 Nitrogen-hydrogen 99.98% pure 827 kPa / 8.3 bar 4250 l/h 150 scfh
(F5 = 95% Nitrogen, 5% Hydrogen) 120 psi
SPECIFICATIONS
2-4 HPR130 Manual Gas Instruction Manual
3
Mild steel Stainless steel Aluminum
Gas types Plasma Shield Plasma Shield Plasma Shield
Cutting 30 to 45 A O
2
O
2
N
2
& F5 N
2
Air Air
Cutting 80 A O
2
Air F5 N
2
Cutting 130 A O
2
Air N
2
& H35 N
2
H35 & Air N
2
& Air
