Hypertherm HPR130 Manual Gas - Inspect Electrode Pit Depth

OPERATION
3
4-24 HPR130 Manual Gas Instruction Manual
Part Check for Action
10
0
20
40
30
4
0
2
3
1
80
60
70
50
90

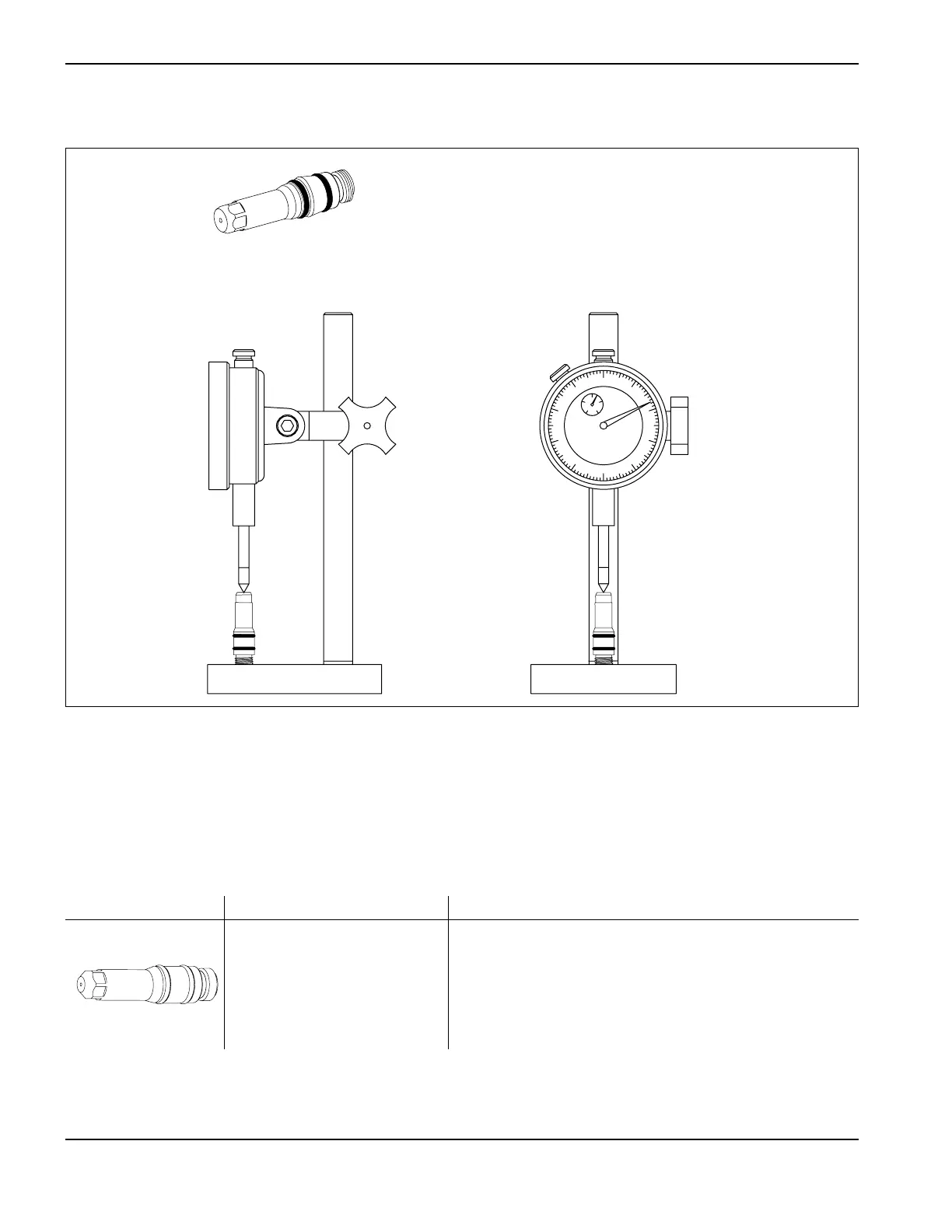

Inspect electrode pit depth
Electrode
Center surface Wear Replace electrode if pit is deeper than 1 mm (0.040 in.)*
*Note: Always replace the nozzle and electrode as a set.
Electrode pit depth gauge (004630)
