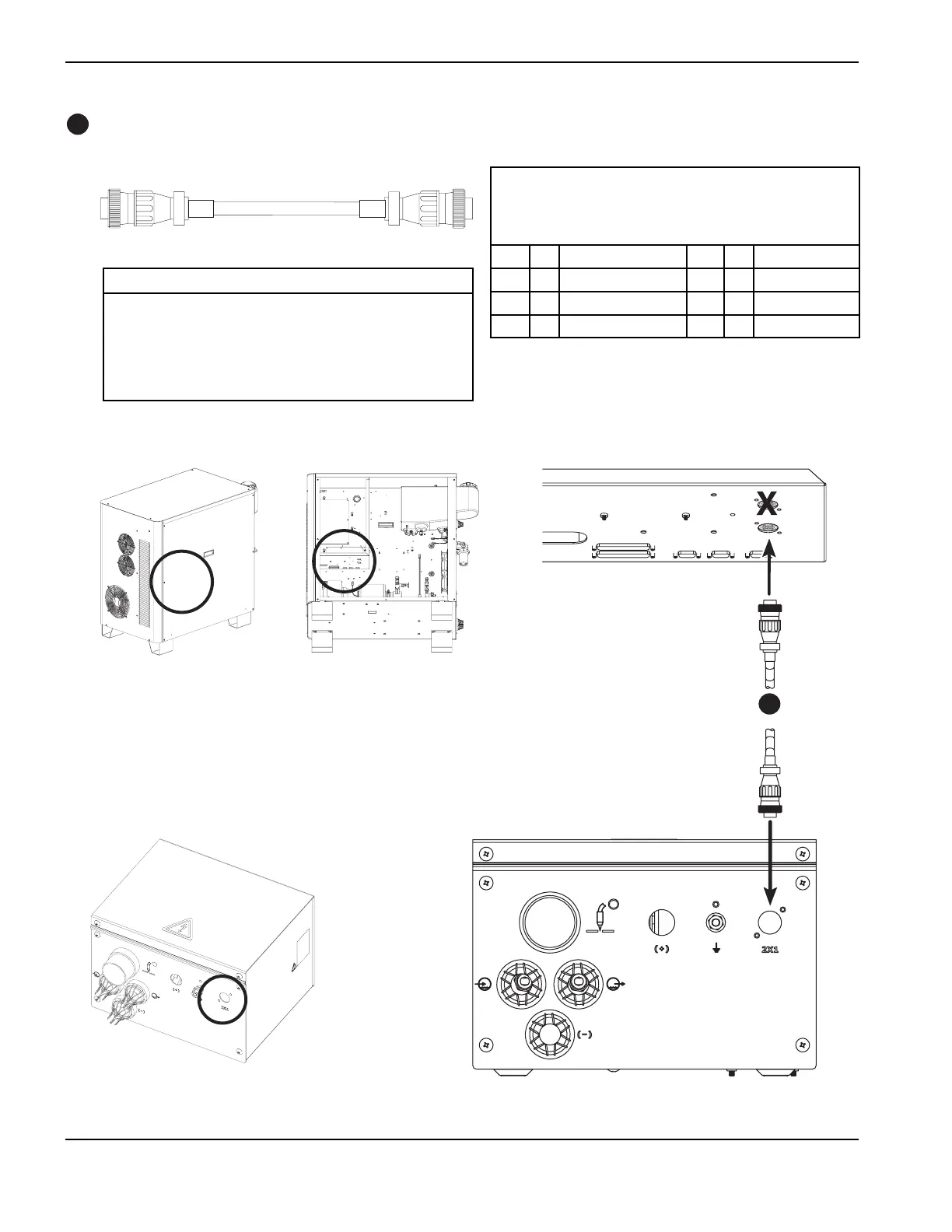

CABLE SIGNAL LIST – power supply to ignition console
Power supply end Ignition console end
Pin # I/O Description Pin # I/O Function
1 120Vac hot 1
2 120Vac return 2
3 Ground 3
4 Not connected 4
Part no. Length Part no. Length
123684* 1.5 m (5 ft) 123836 20 m (65 ft)
123419 3 m (10 ft) 123736 25 m (82 ft)
123834 4.5 m (15 ft) 123672 35 m (115 ft)
123670 7.5 m (25 ft) 123673 45 m (150 ft)
123835 10 m (35 ft) 123837 60 m (200 ft)
123671 15 m (50 ft) 123838 75 m (250 ft)
*Cable number 123684 is for use with systems that have the ignition console mounted on the power supply
