INSTALLATION
HPR130 Manual Gas Instruction Manual 3-29
5
Torch connections

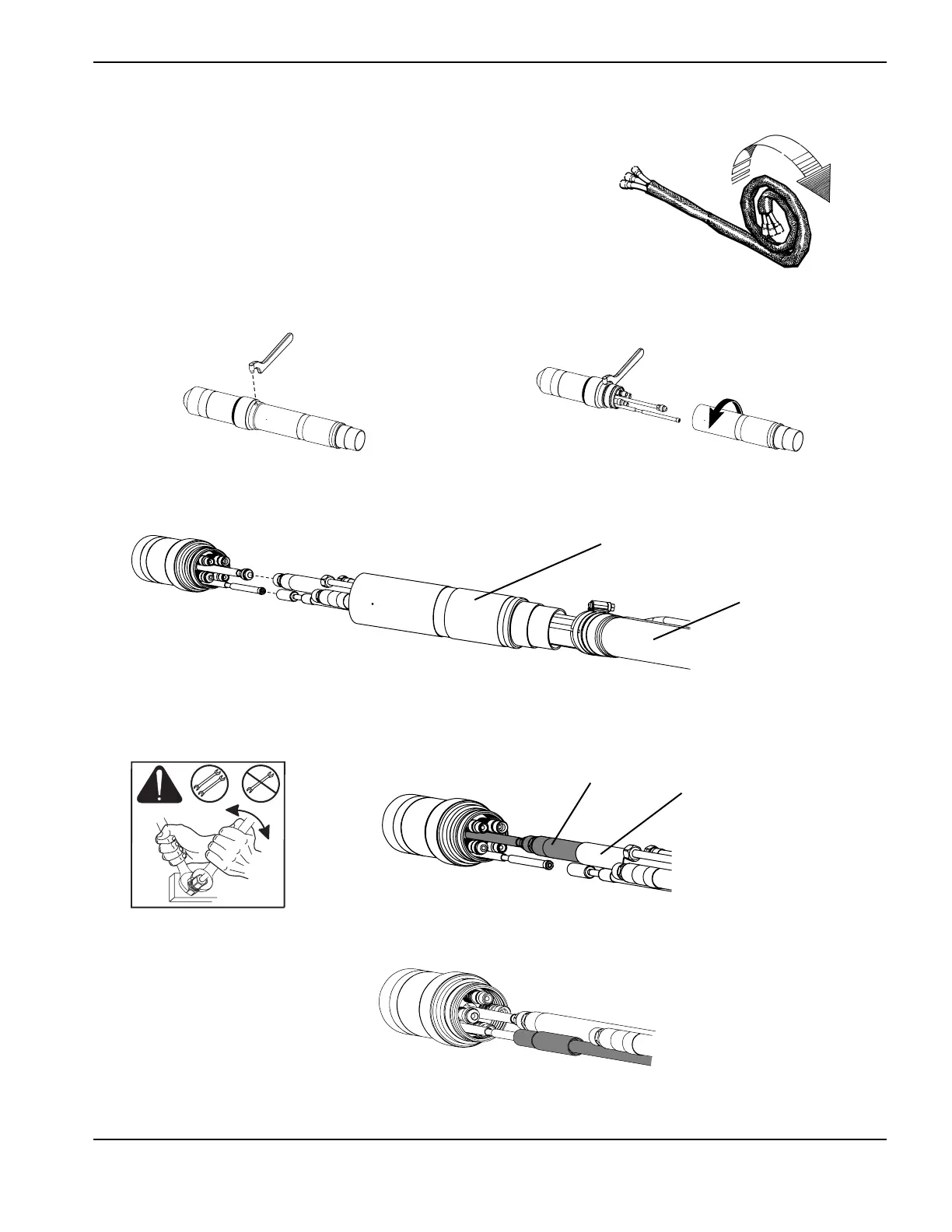

Connect the torch to the torch lead assembly
1. Uncoil the first 2 meters (6.5 feet) of leads on a flat surface.
2. Hold the torch assembly in place with the spanner wrench (104269) and remove the mounting sleeve from the
torch assembly.
3. Push back the braided cover and slide the sleeve over leads. Align the torch with the hoses in the lead
assembly. The hoses must not be twisted. They are taped together to help prevent twisting.
4. Remove the plastic insulator from the torch and slide it onto the coolant IN hose (green) on the lead assembly.
Connect the coolant IN hose to the torch.
5. Connect the pilot arc lead.
Braided cover
Sleeve
Plastic insulator
Coolant IN hose
