2 – Product description
Product description
Hydraulic fluid tank
The filler-breather cap keeps airborne contamination out of the tank and prevents pressure from building up in the
tank. It also gives access to the tank for adding hydraulic fluid.
A temperature sensor and a level sensor in the tank monitor the hydraulic fluid. Use the sight gauge to observe
the hydraulic fluid level and quality.
Use the drain valve to drain the tank.
Suction strainers prevent contamination from entering the primary pump and the gear pump.
Boost pump
A minimum supply water pressure is necessary to operate the pump. A boost pump increases the water pressure
to a value higher than the minimum requirement.
When the intensifier starts to stroke, the boost pump turns on. When there is no demand for cutting water, the
boost pump turns off.
2
1
3
1
2
4
4

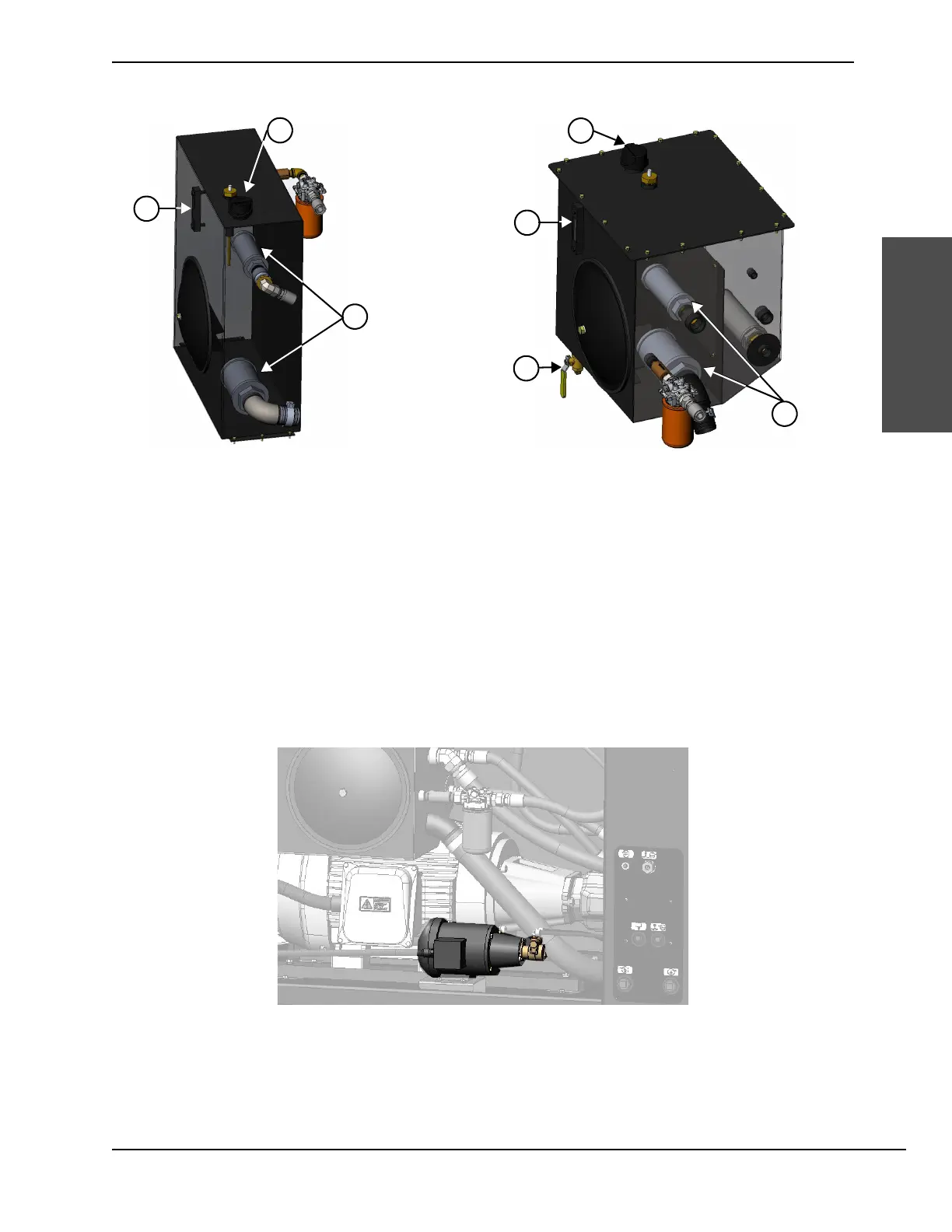

HyPrecision P-15/P-30/P-50 pump
1
Filler-breather cap
2
Sight gauge
HyPrecision P-50S/P-60S/P-75S pump
3
Drain valve
4
Suction strainer
3 4
