HyPrecision Predictive waterjet pump Operator Manual 810120 97
5 – Preventive maintenance
Preventive maintenance

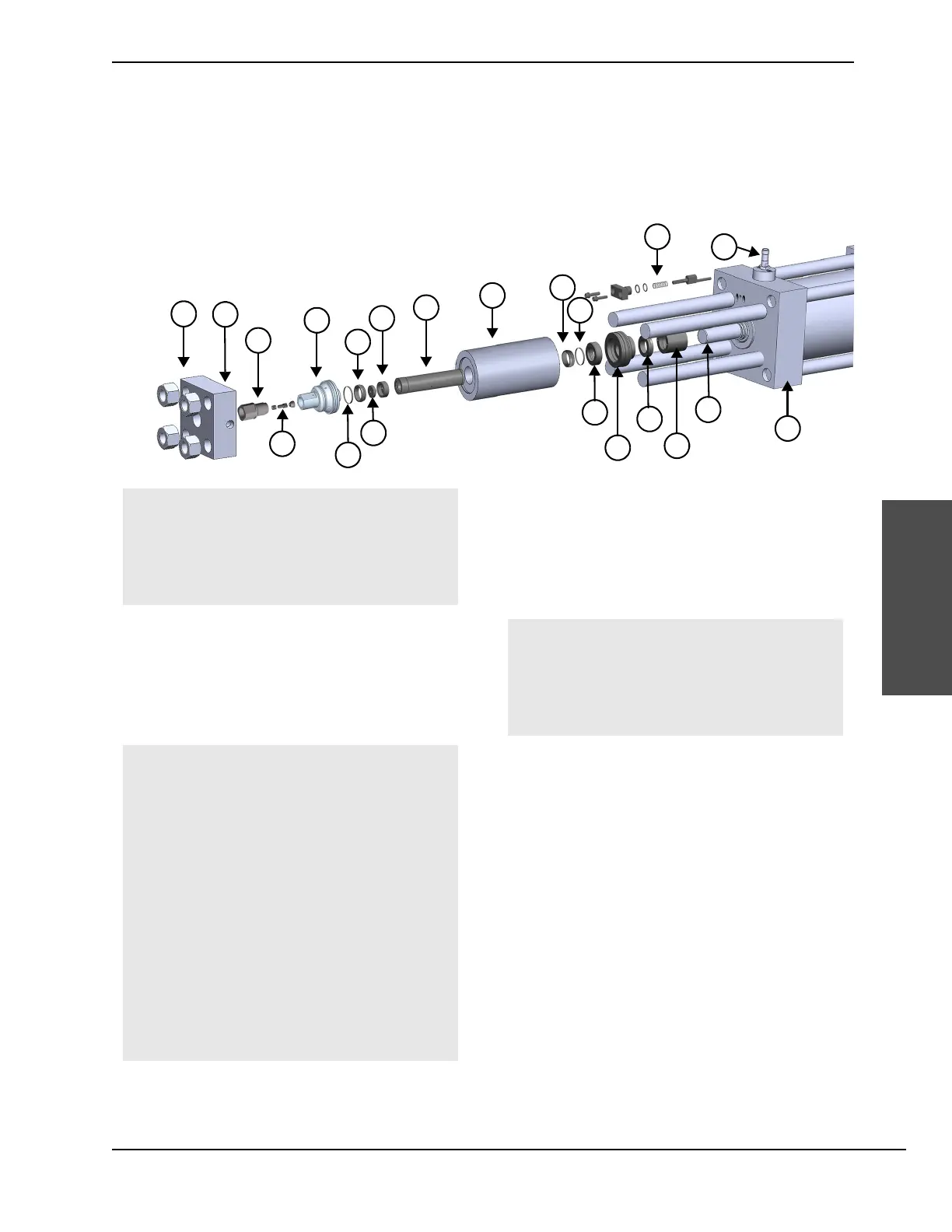

High-pressure water system: Intensifier
To do preventive maintenance on the intensifier, you must have access to intensifier assemblies at specified
intervals.
To reduce downtime, Hypertherm recommends doing preventive maintenance on both ends of the intensifier at
the same time.
1
3
5
6
9
11
13
12
16
4
18
6
7
7
8
10
14
15
19
17
2
1
1-11529 High-pressure end cap
1-11672 High-pressure end cap nut (4)
2
1-17410 High-pressure end cap gasket, not
visible
Refer to page 118.
3
1-11530 Output adapter
4
High-pressure poppet assembly
1-11126 High-pressure poppet spring
1-11015 High-pressure poppet seat
1-11014 High-pressure poppet
Refer to page 120.
5
1-11523 Check valve assembly
6
1-11018 High-pressure hoop
7
1-11024 High-pressure water seal
8
for HyPrecision P-15/P-30/P-50 pumps
1-14792 Low-pressure poppet
1-13907 Low-pressure poppet spring, not
shown
for HyPrecision P-50S/P-60S/P-75S pumps
1-11526 Low-pressure poppet
9
1-11520 Low-pressure poppet basket
10
1-11521 Spacer tube
11
1-11522 High-pressure cylinder
Refer to page 113.
12
1-11610 High-pressure seal backup (bronze)
13
1-11609 Seal housing
14
1-11090 Hydraulic rod seal, 1 inch
15
1-11608 Plunger bearing
Refer to page 110.
16
Indicator pin assembly
1-11518 Indicator pin
1-11519 Indicator pin cap
1-11669 Indicator pin spring
Refer to page 104.
17
1-11613 Plunger
18
1-11529 Hydraulic end cap
19
1-11670 Proximity switch
