Operator interface: Operation screens
The operation screen on the operator interface lets the user:
 turn the pump on or off.
 set or change the water pressure.
 select the operating mode (cut or pierce).
 monitor the status of the intensifier.

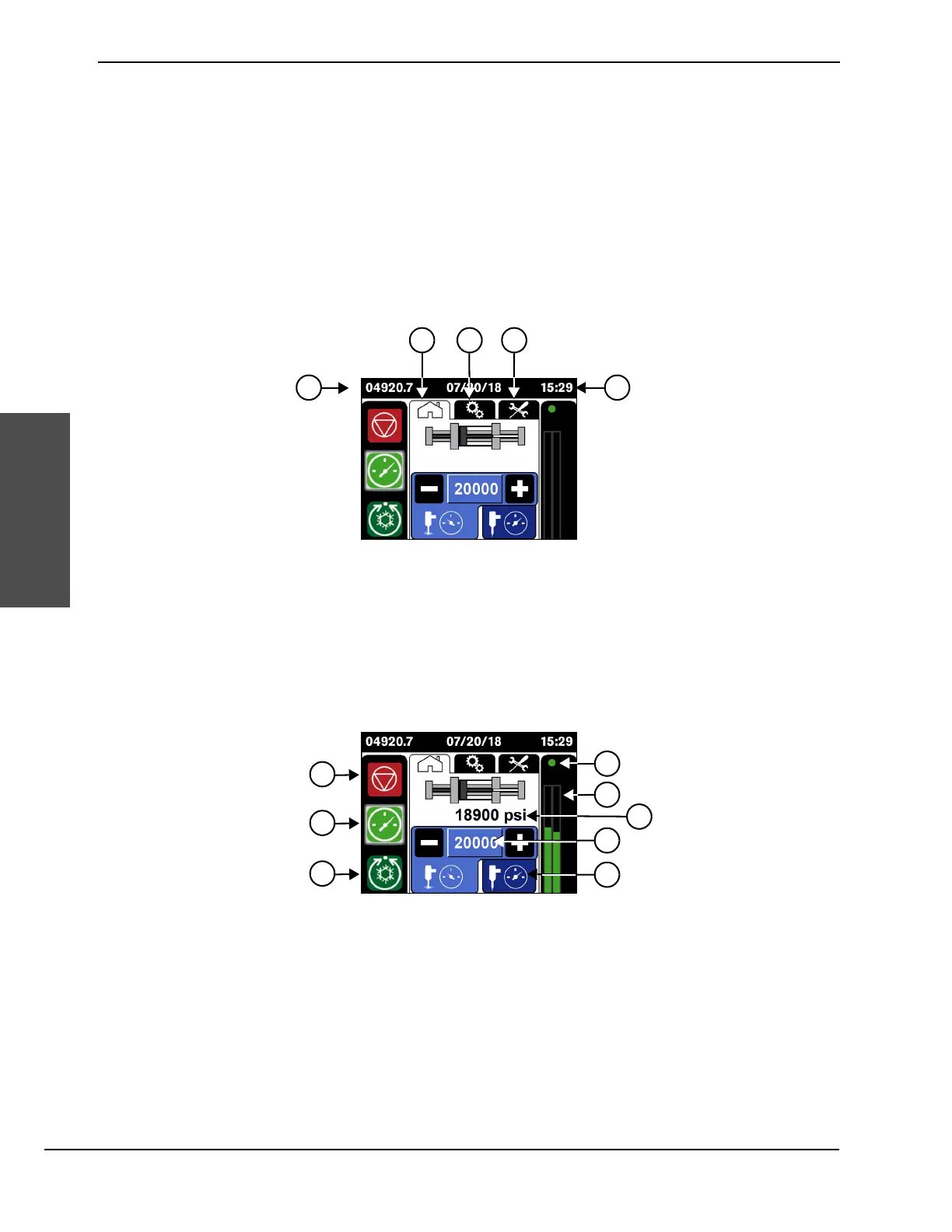

Primary operation screen
These elements are on most screens.
1
2 3
5
4
1
Hour meter
This shows the total hours the pump motor has
been in operation.
2
Primary operator screen symbol
3
Adjustments screen symbol
Refer to Operator interface: Adjustment
screens on page 216.
4
Maintenance screen symbol
Refer to Operator interface: Maintenance
screens on page 127.
5
Date and time
1
2
3
4
5
7
8
6
1
STOP
Touch this symbol to stop the pump.
2
RUN
Touch this symbol to start the pump.
3
COOLING MODE
Touch this symbol to operate the pump with the
intensifier off.
4
Intensifier status indicator
5
Intensifier stroke indicator
6
Output water pressure
7
Target water pressure
8
Pierce-pressure mode (shown on) / cut-pressure
mode
