2-4
S
PECIFICATIONS
Operator Manual

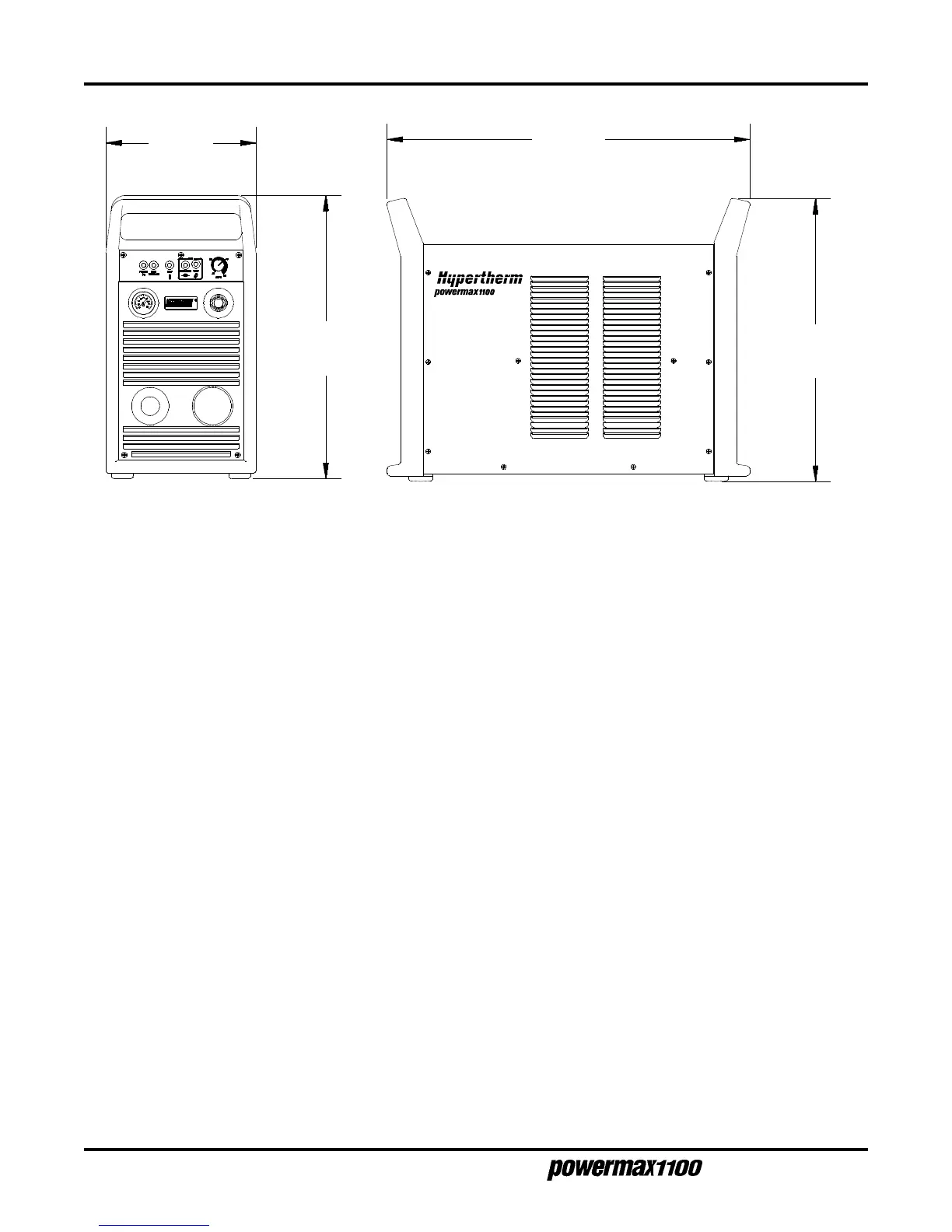

Figure 2-2 Powermax1100 Power Supply Dimensions
10.4"
(264 mm)
19.6"
(498 mm)
25.1"
(638 mm)
PAC135 80A TORCHES
Maximum 80A Cutting Capacity (PAC135T) .............. 1" (25 mm) @ 50% duty cycle
Recommended 80A Cutting Capacity (PAC135T) ..... 3/4" (20 mm) @ 100% duty cycle
Maximum 80A Cutting Capacity (PAC135M) ............. 1/2" (12 mm) @ 50% duty cycle
Recommended 80A Cutting Capacity (PAC135M) .... 3/8" (9.5 mm) @ 100% duty cycle
Maximum current at 50% duty cycle .......................... 80 amps
Gas Flow .................................................................... 400 scfh/6.7 scfm at 65 psi (189 l/min at
4.5 bar)
Gouging Capability (metal removal rate).................... 6.6 pounds (3.0 kg)/hr
Weight PAC135T ....................................................... 9.3 pounds (4.2 kg) with 25 ft (7.6 m) lead
17.8 pounds (8.1 kg) with 50 ft (15 m) lead
Weight PAC135M....................................................... 9.6 pounds (4.4 kg) with 25 ft (7.6 m) lead
18 pounds (8.2 kg) with 50 ft (15 m) lead
19.6"
(498 mm)
