Hypertherm powermax1100 - Parts; PAC135 M Torch Assembly

MAINTENANCE/PARTS
5-11
Operator Manual

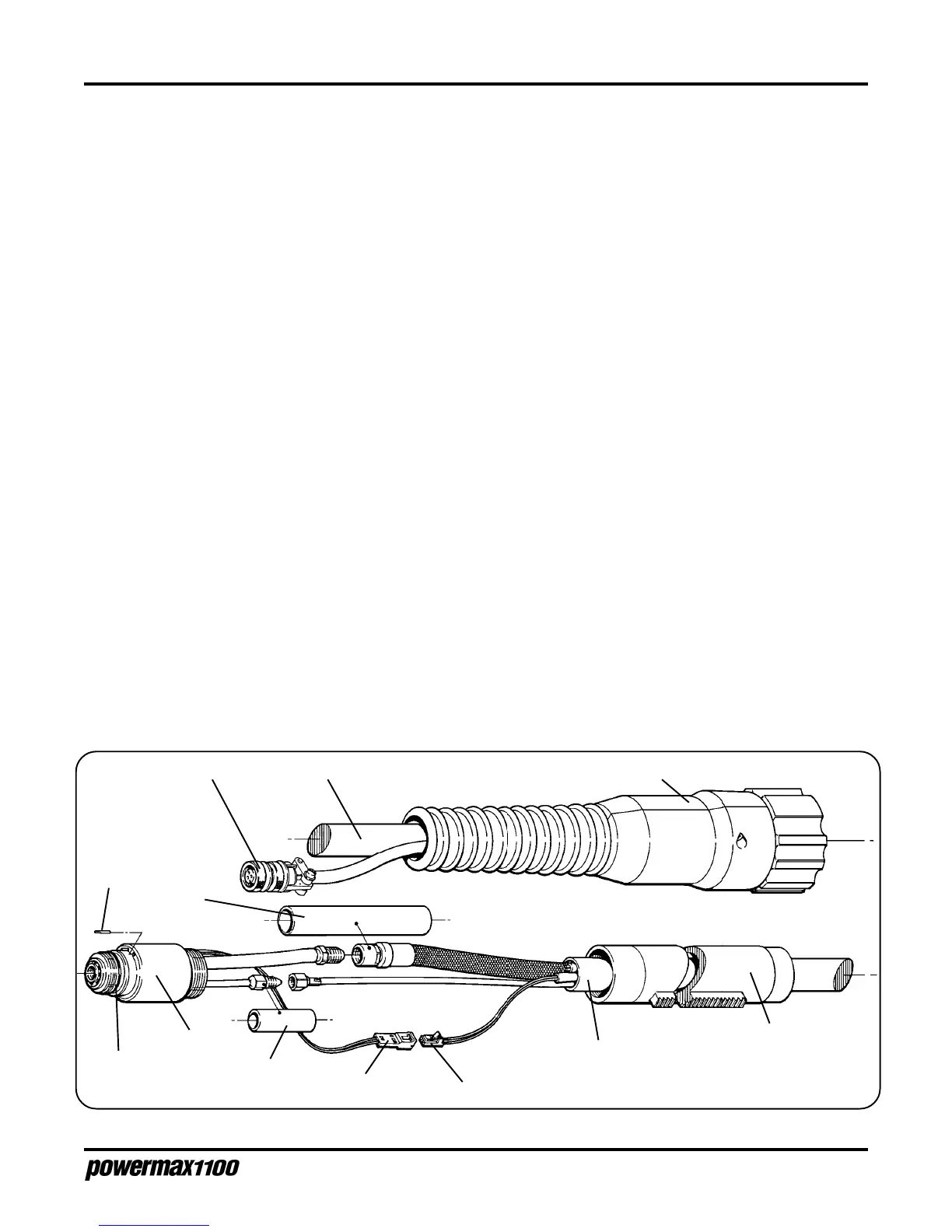

Figure 5-5 PAC135M Torch Assembly and Leads
PAC135M Torch Assembly and 14 ft (4.3 m) Lead - 085062
PAC135M Torch Assembly and 25 ft (7.6 m) Lead - 085063
PAC135M Torch Assembly and 35 ft (10.6 m) Lead - 085064
PAC135M Torch Assembly and 50 ft (15.2 m) Lead - 085065
Index No. Part No. Description Qty.
1 020243................ Sleeve, Torch Position 1
2 129240* .............. Torch Lead, 14 ft (4.3 m) 1
2 129241** ............. Torch Lead, 25 ft (7.6 m) 1
2 129242*** ........... Torch Lead, 35 ft (10.6 m) 1
2 129243**** .......... Torch Lead, 50 ft (15.2 m) 1
3 128122...................... Plug Assembly:PAC135 Torch Quick Disconnect 1
4 008268...................... Plug:3-Socket Female 1
5 108034...................... Receptacle Housing:2-Position 26-22AWG 1
120473................ Electrode 1
120474................ Ring, Swirl 1
120516................ Shield: PAC135M Machine Torch 1
120476................ Nozzle: PAC135 80A Shield 1
120483................ Cap, Retaining 1
6 120508................ Torch Main Body, PAC135M 1
7 026020...................... O-Ring: Silicon .864 X .070 1
8 108035...................... Pin Housing:2-Position 26-22AWG 1
9 108040...................... Contact:PAC135M Cap-On Sensor Switch 1
10 046056...................... Tubing:5/8" ID 4"
11 046072...................... Heatshrink:1/2" ID 2.5"
* Used only in 085062 assembly *** Used only in 085064 assembly
** Used only in 085063 assembly **** Used only in 085065 assembly
Note: See page 5-8 for detail of consumable parts
1
2
234
5
6
7
8
9
10
11
