3-5
S
ETUP
Operator Manual
Input Phase Input Recommended Power Cord Wire Size (mm
2
)
Voltage Current < 3 m 3 – 7.5 m 7.5 – 15 m 15 – 30 m 30 – 45 m
200 VAC 1 96A 25 25 25 35 35
230 VAC 1 84A 25 25 25 25 35
400 VAC 1 48A 10 10 10 10 16
200 VAC 3 56A 10 10 16 16 16
230 VAC 3 49A 10 10 10 10 16
400 VAC 3 28A 4 4 4 6 6
5" (140 mm)
7.5" (178 mm)
Ground
L1
L2
L3
Input Phase Input Recommended Power Cord Wire Size (AWG)
Voltage Current < 10 ft 10 – 25 ft 25 – 50 ft 50 – 100 ft 100 – 150 ft
208 VAC 1 92A 4 4 4 2 2
240 VAC 1 80A 6 6 4 4 4
480 VAC 1 40A 8 8 8 8 6
208 VAC 3 53A 6 6 6 6 4
240 VAC 3 46A 8 8 8 6 6
480 VAC 3 23A 10 10 10 10 8

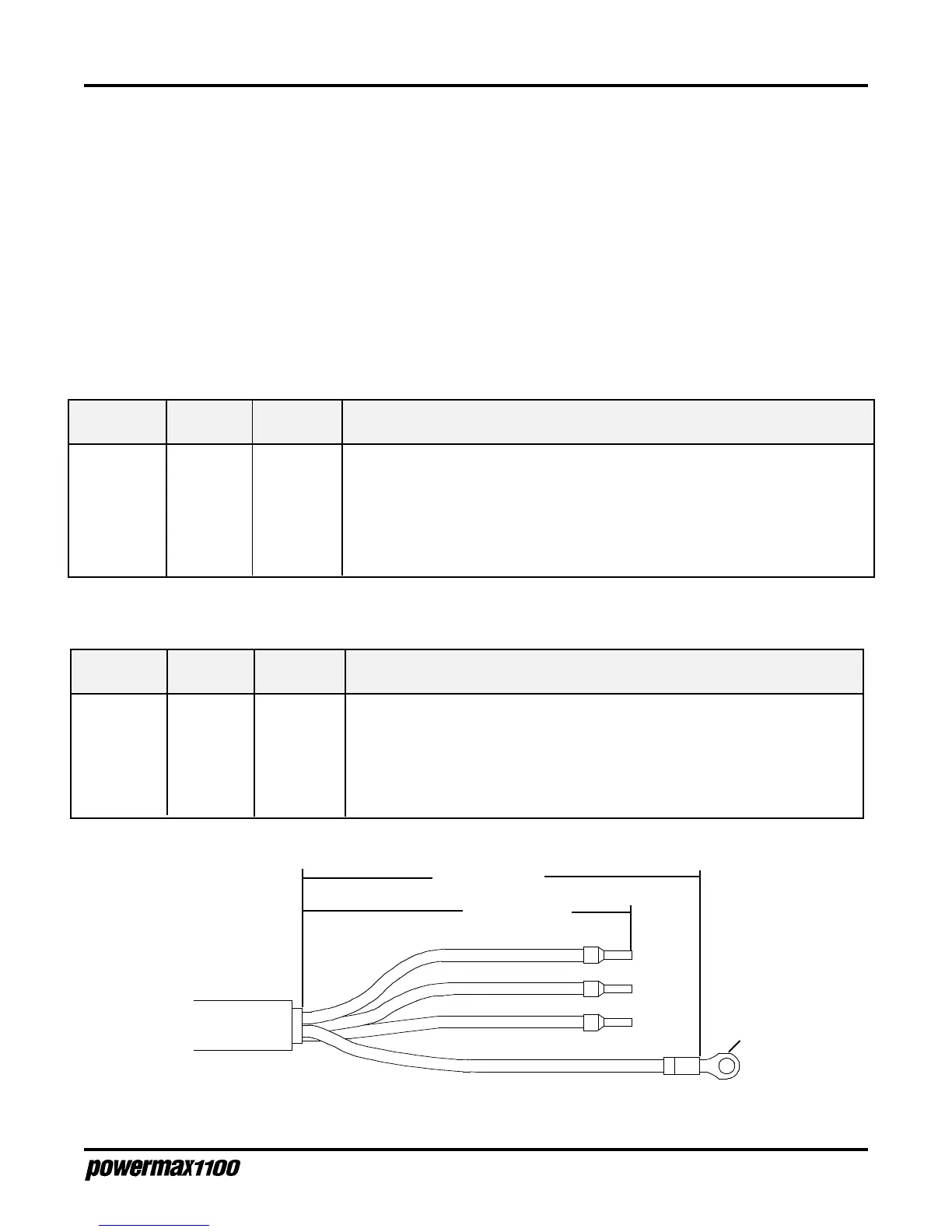

Figure 3-6 Power Cord Stripping for 208/240/480V and 200/230/400V Power Supplies
POWER CORDS - 208/240/480V, 200/230/400V and 600V POWER SUPPLIES
The 208/240/480V and 200/230/400V power supplies are shipped without a power cord. Use the tables
below to choose the proper wire size for the appropriate length cord. In the U.S., use a 3-conductor SO
type cord for single-phase, and a 4-conductor SO type cord for three-phase power supplies. In other
countries, use cords that are certified by local or national codes. Strip the power cord wires as shown in
Fig. 3-6. Cap or tin the conductor leads and use a #10 terminal on the ground wire. The cord should be
installed only by a licensed electrician.
The 600V conversion kit comes with a 10 AWG 7 ft (2 m) power cord. If changing the cord length, use a
10 AWG power cord.
208/240/480V Power supplies
200/230/400V Power supplies
#10
