Operator Manual
5-8
M
AINTENANCE
/P
ARTS
PARTS

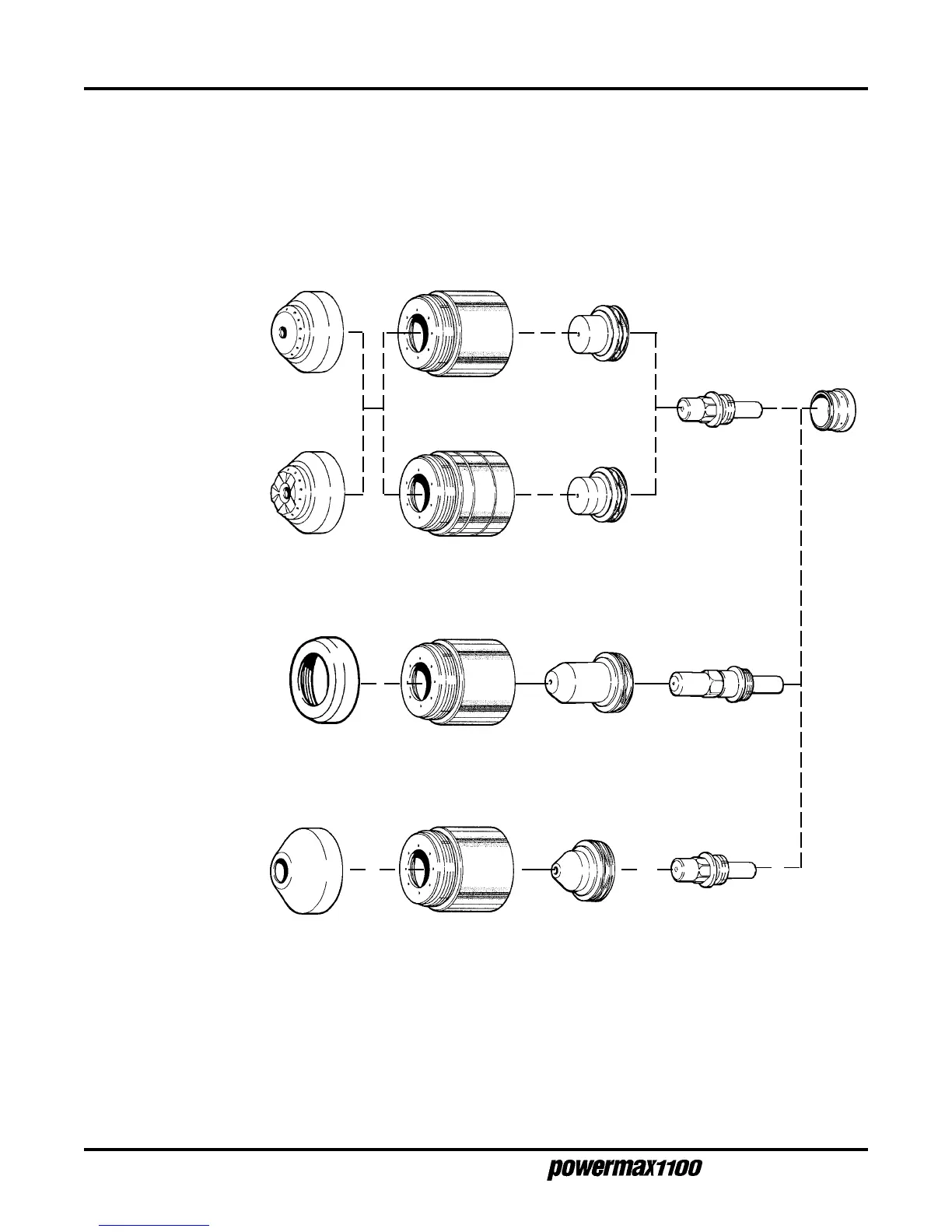

PAC135 Consumable Parts
Figure 5-3 PAC135 Consumable Parts
See page 4-7 for a description
of the consumable parts
Retaining Cap
120520 - 40A
Retaining Cap
120483 - 80A
Electrode
120473
Swirl Ring
120474
Hand Shield
120475
Nozzle
120515 - 40A
Shield
120510
Nozzle
120509
Nozzle
120476 - 80A
Gouging
Shielded - 80A, 40A
Extended
Deflector
120519
Nozzle
120518
Electrode
120517
Retaining Cap
120483
Retaining Cap
120483
Machine Shield
120516
Electrode
120473
