Hypertherm Powermax30 AIR Operator's Manual

Powermax30 AIR Operator Manual 808840 41
4–Operation
Operate the plasma system
The following topics explain how to begin cutting with the plasma system.
Step 1 – Install the consumables
Before operating the plasma system
and hand torch, first make sure:
1. The power switch on the power
supply is in the OFF (O) position.

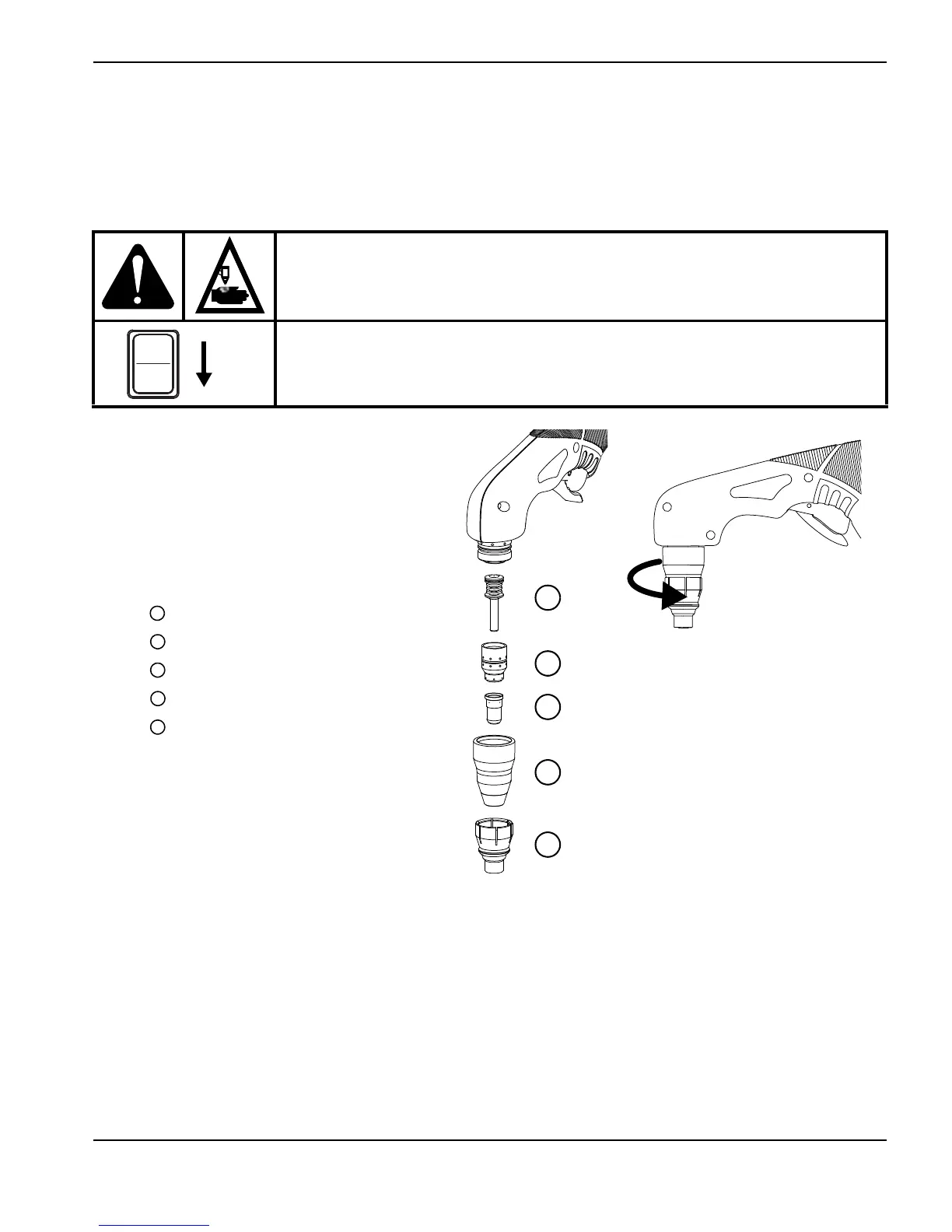

2. A complete set of consumables is
installed on the hand torch
as shown:
Electrode
Swirl ring
Nozzle
Retaining cap
Deflector*
* Install the deflector by snapping it
securely into place on the retaining cap.

Do not apply grease or
other lubricants to the
O-rings on the electrode
and swirl ring.

These consumables are designed specifically for the Powermax30 AIR power supply and
Air T30 hand torch. They cannot be used with any other Powermax system or torch.
WARNING!
INSTANT-ON TORCHES
PLASMA ARC CAN CAUSE INJURY AND BURNS
The plasma arc ignites immediately when you pull the torch trigger. Make
sure the power is OFF (O) before changing consumables.
I
O
Tighten only to finger tight.
1
2
3
4
5
1
2
3
4
5

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
