Hypertherm Powermax30 AIR Operator's Manual

Powermax30 AIR Operator Manual 808840 43
4–Operation
Step 3 – Adjust the output current
The power ON LED illuminates when the system is powered ON and ready to operate.
If any of the other LEDs illuminate or blink, do not try to cut – a fault has occurred. Refer to Basic troubleshooting on
page 56 for a list of troubleshooting steps to follow.
When the system is ready to cut, turn the amperage knob to the desired output current based on the input voltage and
circuit size.

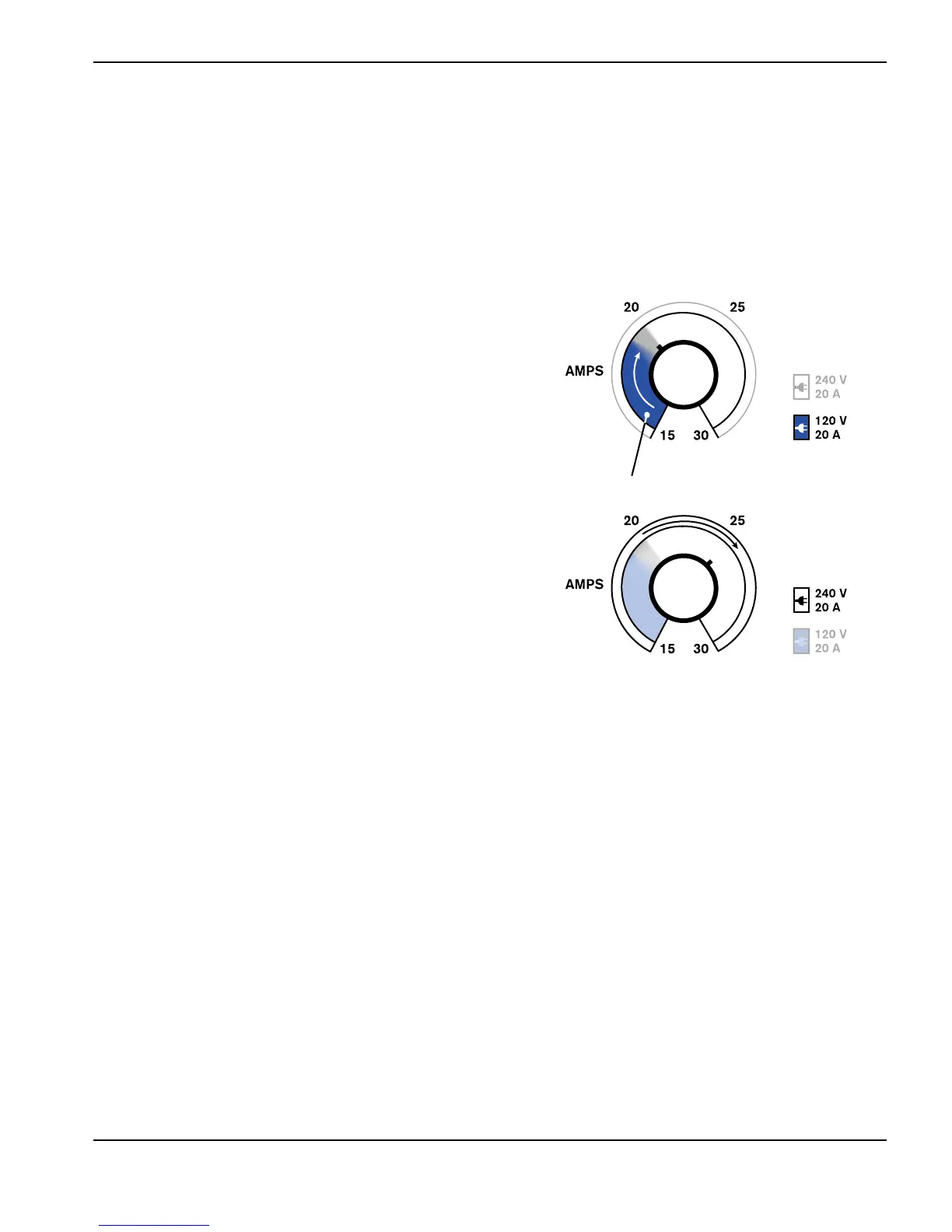

Operating the system on a 120 V / 20 A circuit
 Set the amperage below 20 A, as indicated by the
blue shading around the knob (the thick inner ring).
 Make sure nothing else is drawing power from the
circuit.

Hypertherm does not recommend operating this
system on a 120 V / 15 A circuit.
Operating the system on a 240 V / 20 A circuit
 Set the amperage between 15 – 30 A.
Decrease output current for lower-rated power
plugs
If you are operating the system using a lower-rated power
plug or service, turn down the output current to avoid
tripping the circuit breaker.
For example, to operate the system on a 230 V / 16 A
circuit, set the amperage below 28 A.

See Voltage configurations on page 25 for more information.
Cutting expanded metal
Use the consumables that come with the torch to cut expanded metal. (Expanded metal has a slotted or mesh pattern.)
The system does not require a dedicated mode for cutting expanded metal.
Cutting expanded metal wears out consumables more quickly because it requires a continuous pilot arc. A pilot arc
occurs when the torch is fired but the plasma arc is not in contact with the workpiece.
For best results, operate on a higher rated circuit (240 V / 20 A).
Blue shading

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
