Hytera PD78X Series User Manual

Hytera DMR System Planner
26

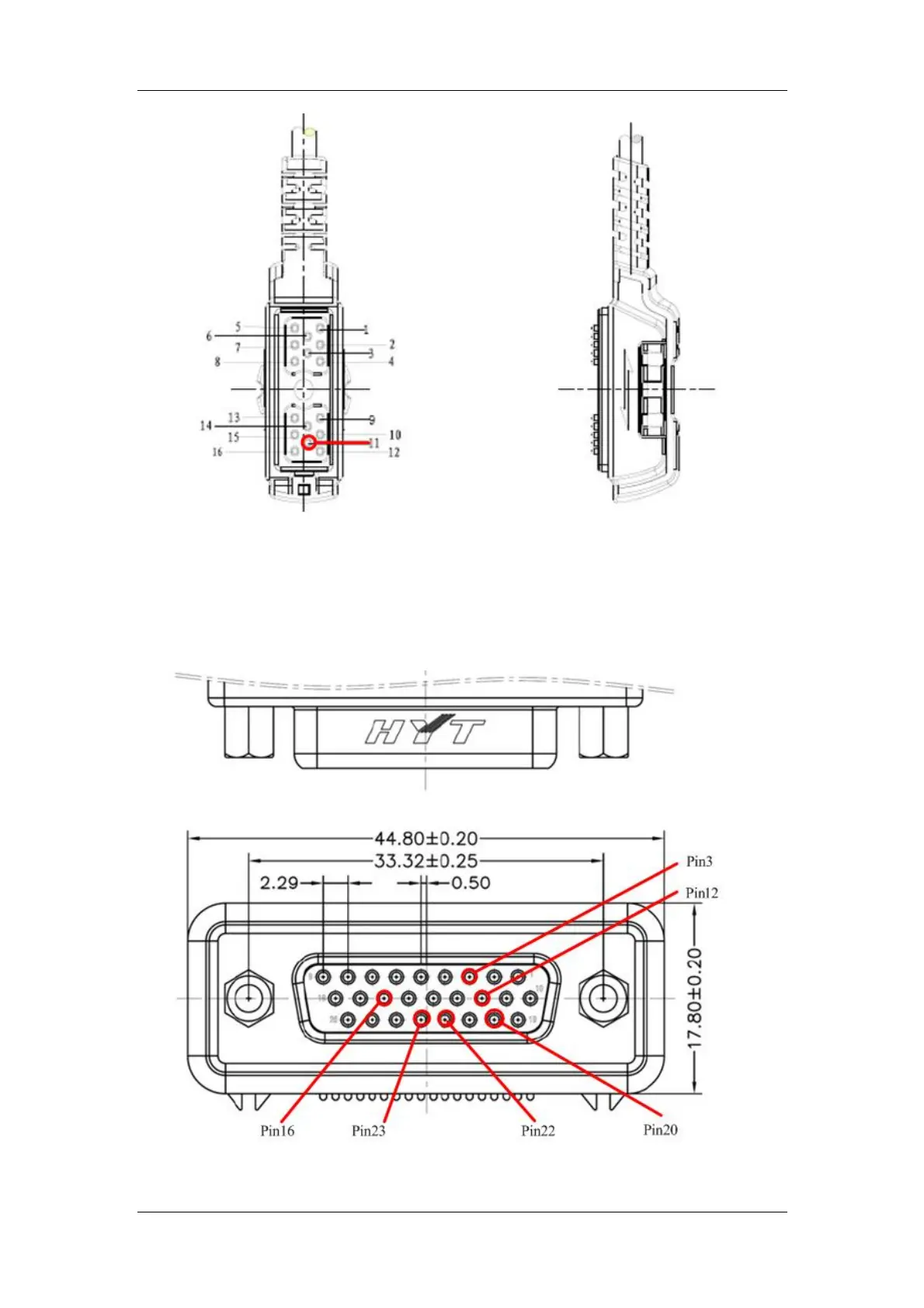

Figure 2.4.4-2: GPIO Interface of Portable Radio
GPIO Interface of Mobile Radio
The mobile radio supports 6 telemetry VIOs. GPIO Pin3, Pin12, Pin 16, Pin20, Pin22
and Pin23 can be set to the telemetry VIO. See the following figure:
Figure 2.4.4-3: GPIO Interface of Mobile Radio
