Interface Definition
37
7. Interface Definition

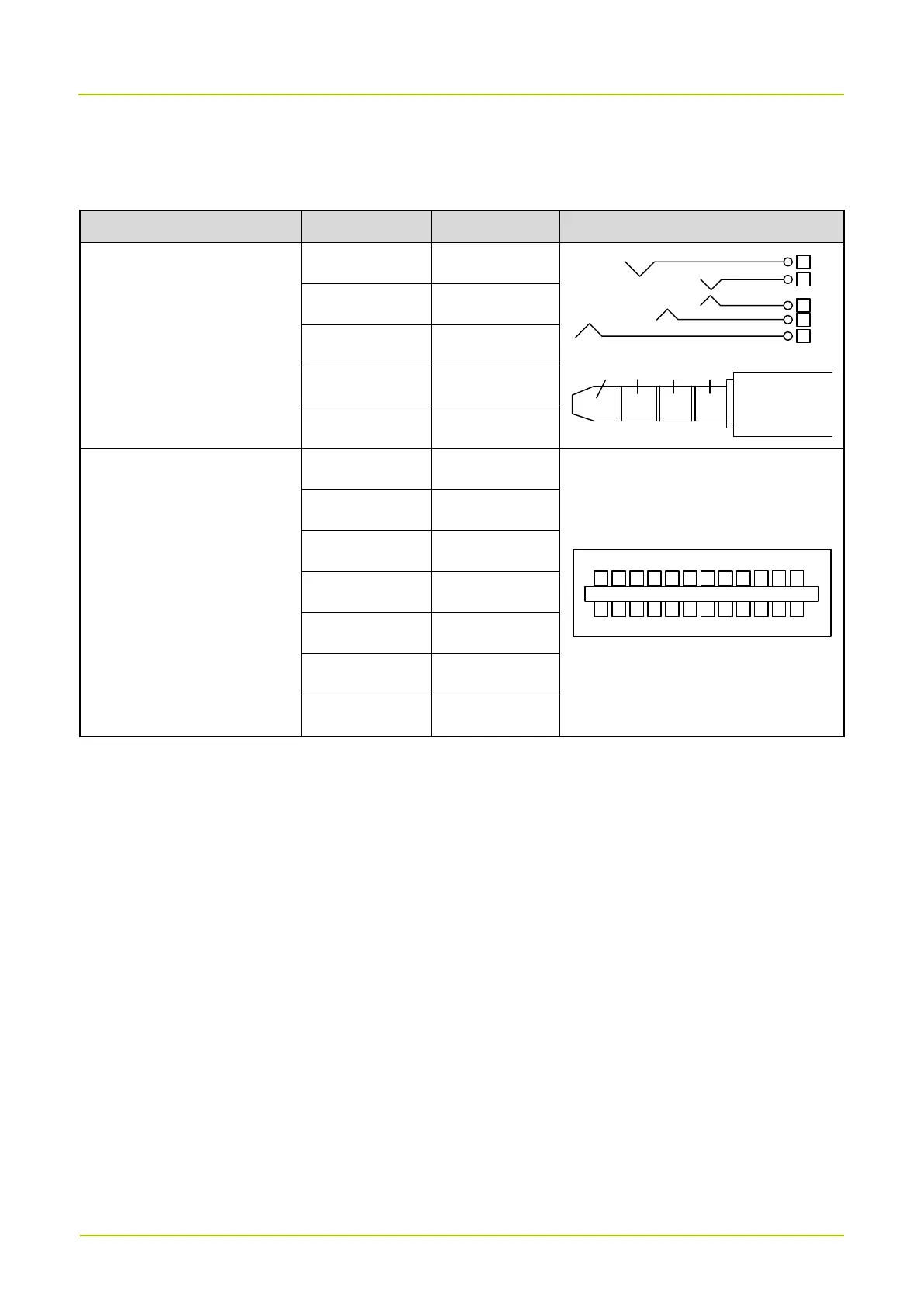

The table below lists the information about the audio accessory connector and USB port.
Type Pin No. Signal Illustration
Audio Accessory Connector
1 MIC
1
3
5
4
2
L R GND MIC
2 GND
3 CDC_HPH_R
4 CDC_HPH_L
5 CDC_HS_DET
USB Port
A1/B12/A12/B1 GND
12
11 10 9 8 7 6 5 4
3 2 1
1 2 3 4 5 6 7 8 9
10 11 12
A
A
B B
A4/B9/A9/B4 VBUS
A6/B6 D+
A7/B7 D-
A5 CC1
A8 CC2
OTHERS NC
