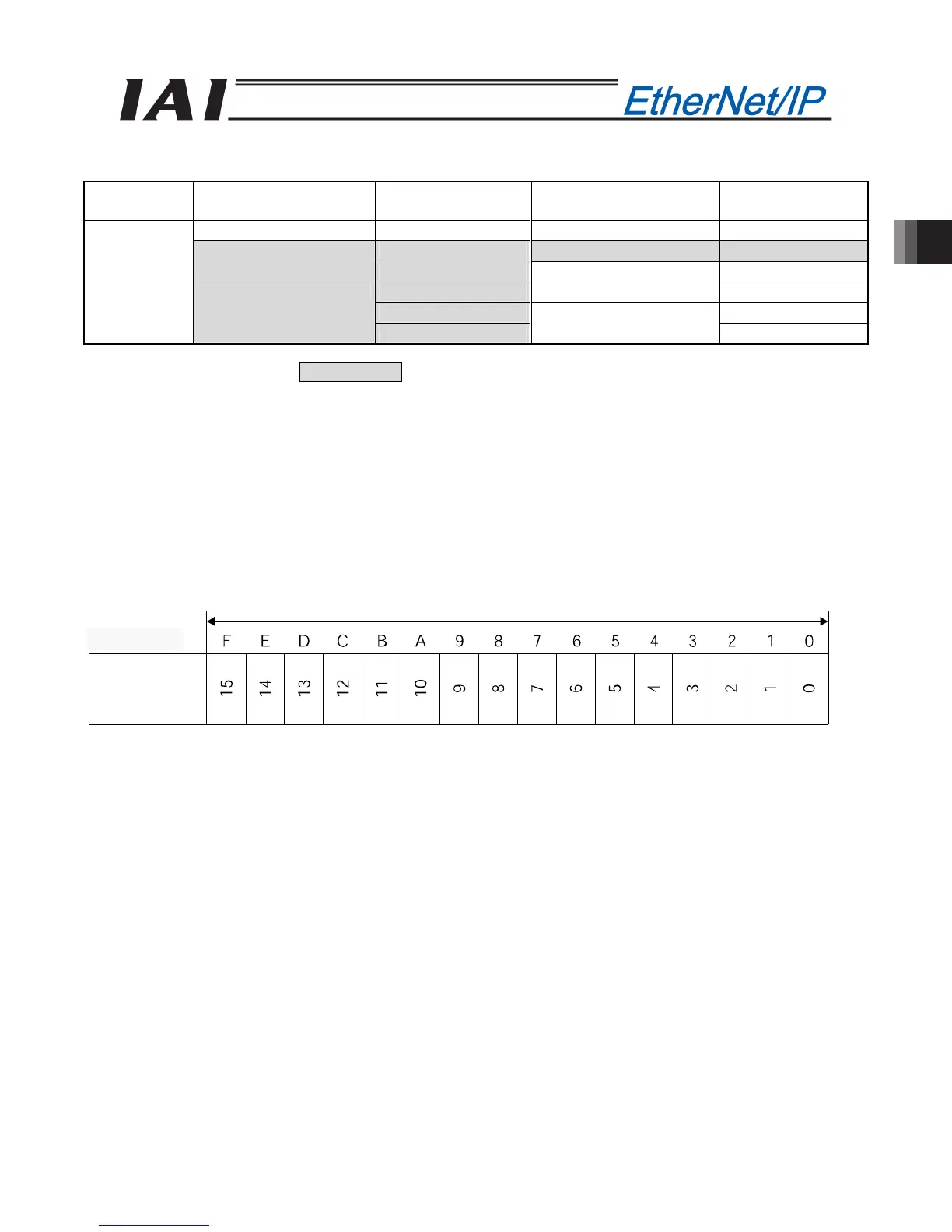

(1) PLC address configuration (* “n” indicates the first address of each axis.)
Parameter
No.84
PCON-CA/CFA side
DI and input register
PLC side output
address (bytes)
PCON-CA/CFA side
DO and output register
PLC side input
address (bytes)
Port No.0 to 15 n, n+1 Port No.0 to 15 n, n+1
n+2, n+3 Occupied area n+2, n+3
n+4, n+5 n+4, n+5
n+6, n+7
Current position
n+6, n+7
n+8, n+9 n+8, n+9
4
Occupied area
n+10, n+11
Command current
n+10, n+11
(Note) The areas denoted by Occupied area cannot be used for any other purpose.
Also, exercise caution to avoid node address duplication.
(2) I/O signal allocation for each axis
The I/O signals of each axis consist of 6 input words (channels) and 6 output words (6 words=12 bytes) in
the I/O areas.
z The areas controlled by port number are controlled using ON/OFF bit signals.
z The current position is a 2-word (32-bit) binary data (unit: 0.01 mm).
z The command current is expressed using 2-word (32 bits) binary data (Unit: 1mA).
PLC output
Address (* “n” indicates the first output address of each axis.)
1 word = 2 bytes =16 bits
Controller
input port
n+0ޔn+1
n+0, n+1
