IAI RCM-P6GW User Manual

1. Specications Check
Fieldbus Communication
21
RCP6
S
Chapter 1 Specifications Check
1.1 Product Check
1.1.1 Parts

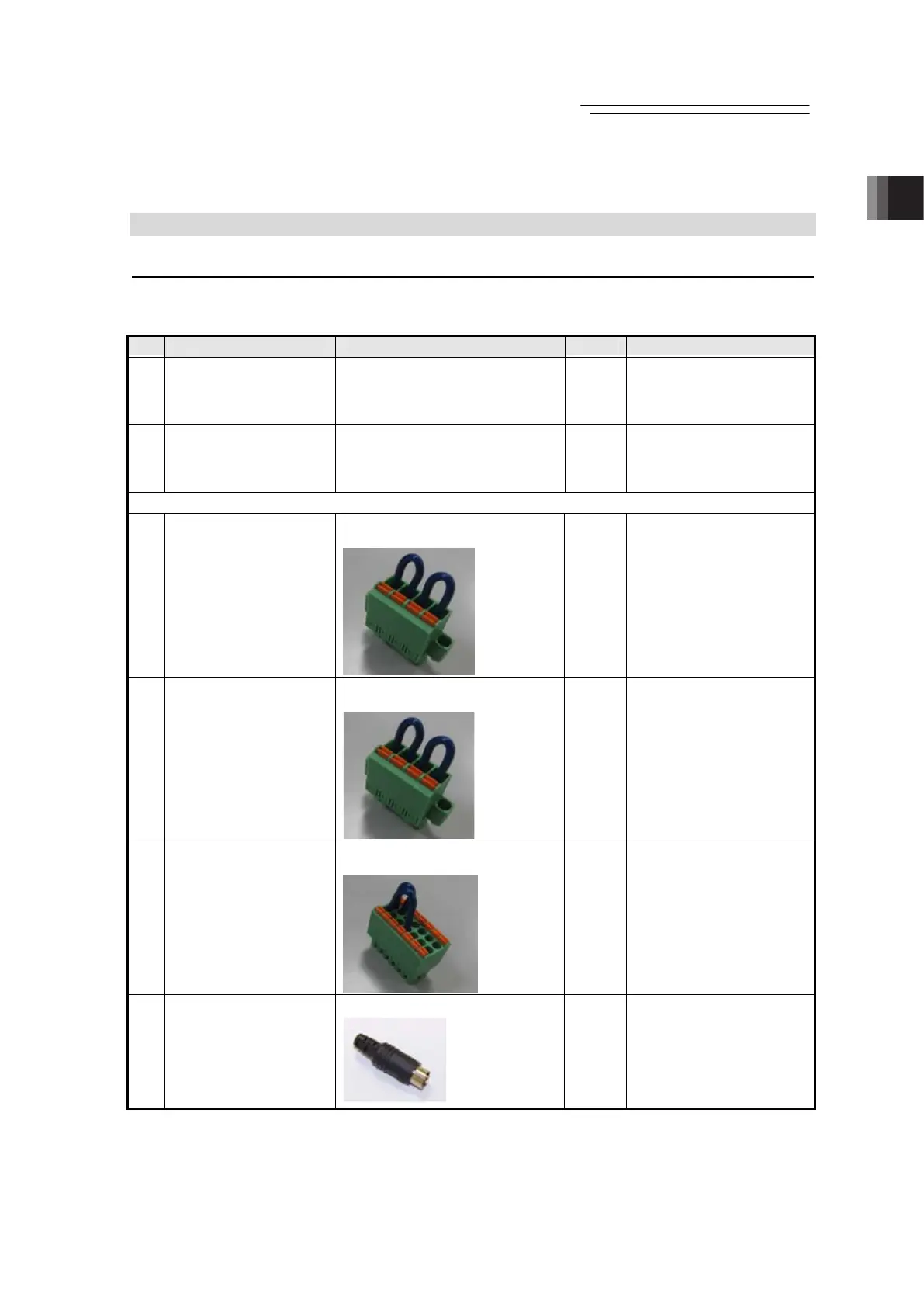

The standard configuration of this product is comprised of the following parts.
If you find any faulty or missing parts, contact your local IAI distributor.
No. Part Name Model and Picture Number Remarks
1 Actuator Main Body
Refer to each instruction manual
of an actuator.
-
2 Gateway Unit
Refer to “1.1.4 How to read the
model plate”, “1.1.5 How to read
the model”.
1
RCM-P6GW(G)
Accessories
3 Drive Cutoff Connector (1)
FKCN2.5/4-STF-5.0 (Ax0-7)
(Supplier : PHOENIX CONTACT)
1
Recommended cable size
1.25 to 0.5mm
2
(AWG16 to 20)
4 Drive Cutoff Connector (2)
FKCN2.5/4-STF-5.0 (Ax8-15)
(Supplier : PHOENIX CONTACT)
1
Recommended cable size
1.25 to 0.5mm
2
(AWG16 to 20)
5 System I/O Connector
DFMC1.5/7-ST-3.5
(Supplier : PHOENIX CONTACT)
1
Recommended cable size
• Brake Release Input
1.25 to 0.5mm
2
(AWG16 to 20)
• Other than above
1.25 to 0.3mm
2
(AWG16 to 22)
6
Dummy Plug
(For Safety Category
Complied Type
RCM-P6GWG)
DP-5
1
ME0349-4B
