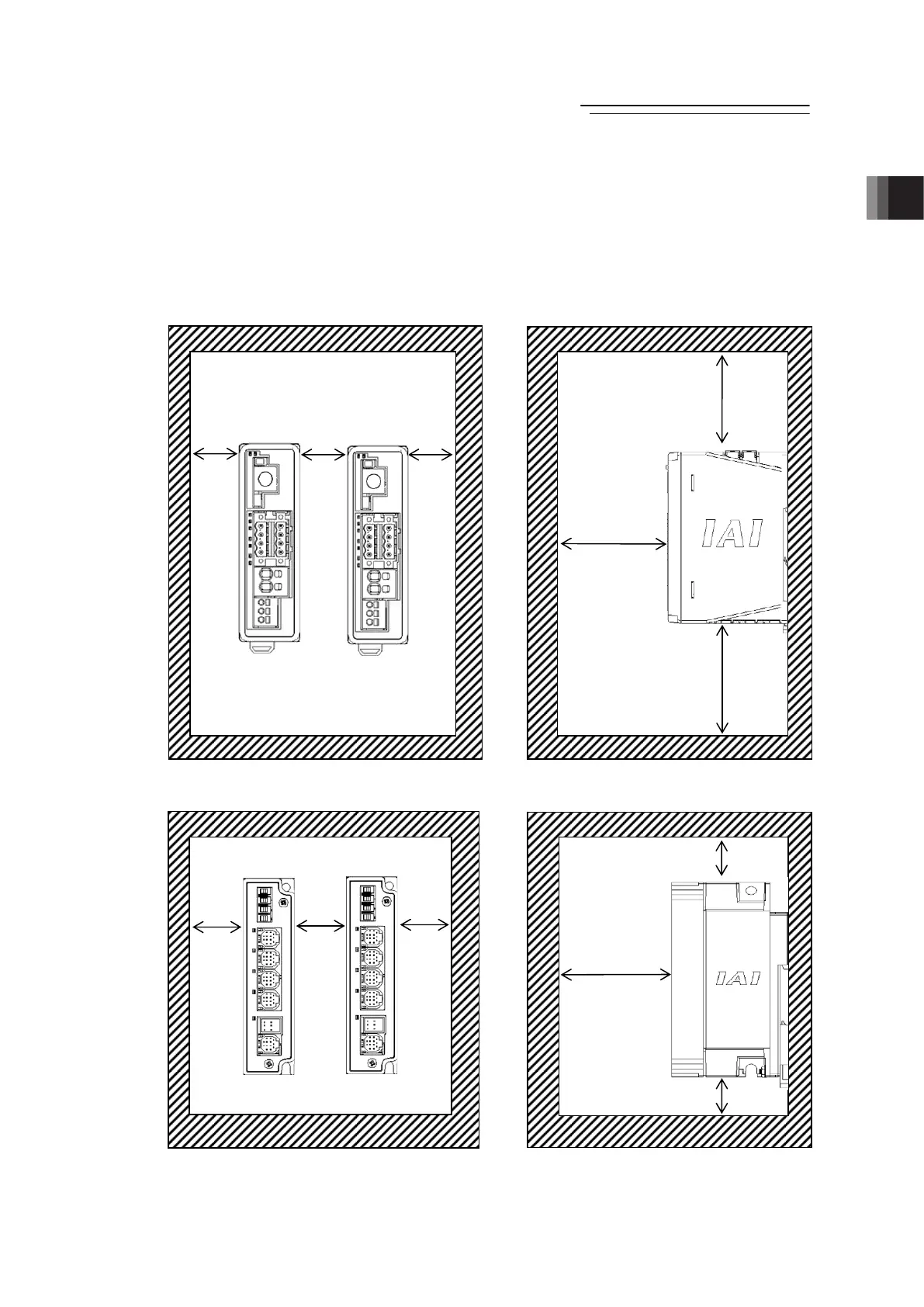

(4) Heat Radiation and Installation
Design and Build the system considering the size of the controller box, location of the controller
and cooling factors to keep the surrounding temperature around the controller below 40°C.
To fix the units in the control box, use the attachment holes on top and bottom of the unit for the
screw fixed type, and use the DIN rails for the DIN rail fixed type.
Gateway Unit
Hub Unit
100mm or more
100mm or more
10mm
or more
100mm or more
10mm
or more
10mm
or more
10mm
or more
10mm
or more
10mm or more
10mm or more
10mm
or more
100mm or more
