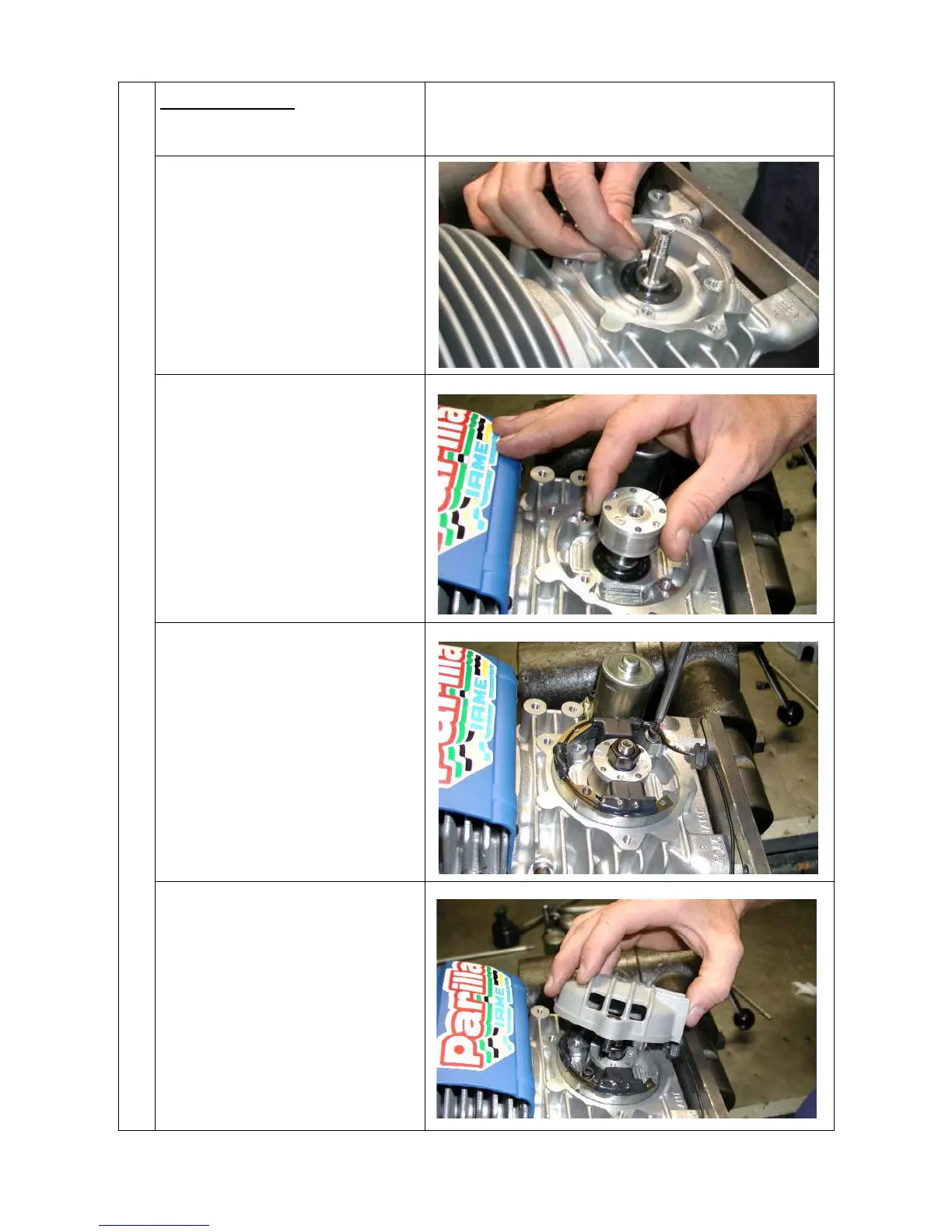

INSTALL THE IGNITION:
a) INSTALL PISTON FITTING ON HEAD.
-PISTON FITTING: P.N. 10271
b) INSERT KEY ON SHAFT
(see Fig.28).
c) INSTALL IGNITION ROTOR ON SHAFT
(WITH TIMING PLATE TOWARDS THE
EXTERNAL)
(see Fig.29).
INSTALL SCREW AND NUT M10.
TORQUE AT 20÷26 Nm (175 ÷ 230 in-lb).
-12 POINT WRENCH 13mm
d) INSTALL STATOR
2 SCREWS M5X25 (see Fig.30).
- 4mm ALLEN T TYPE
9.
e) INSTALL IGNITION COVER
3 SCREWS M6X18 (see Fig.32).
- 5mm ALLEN T TYPE
