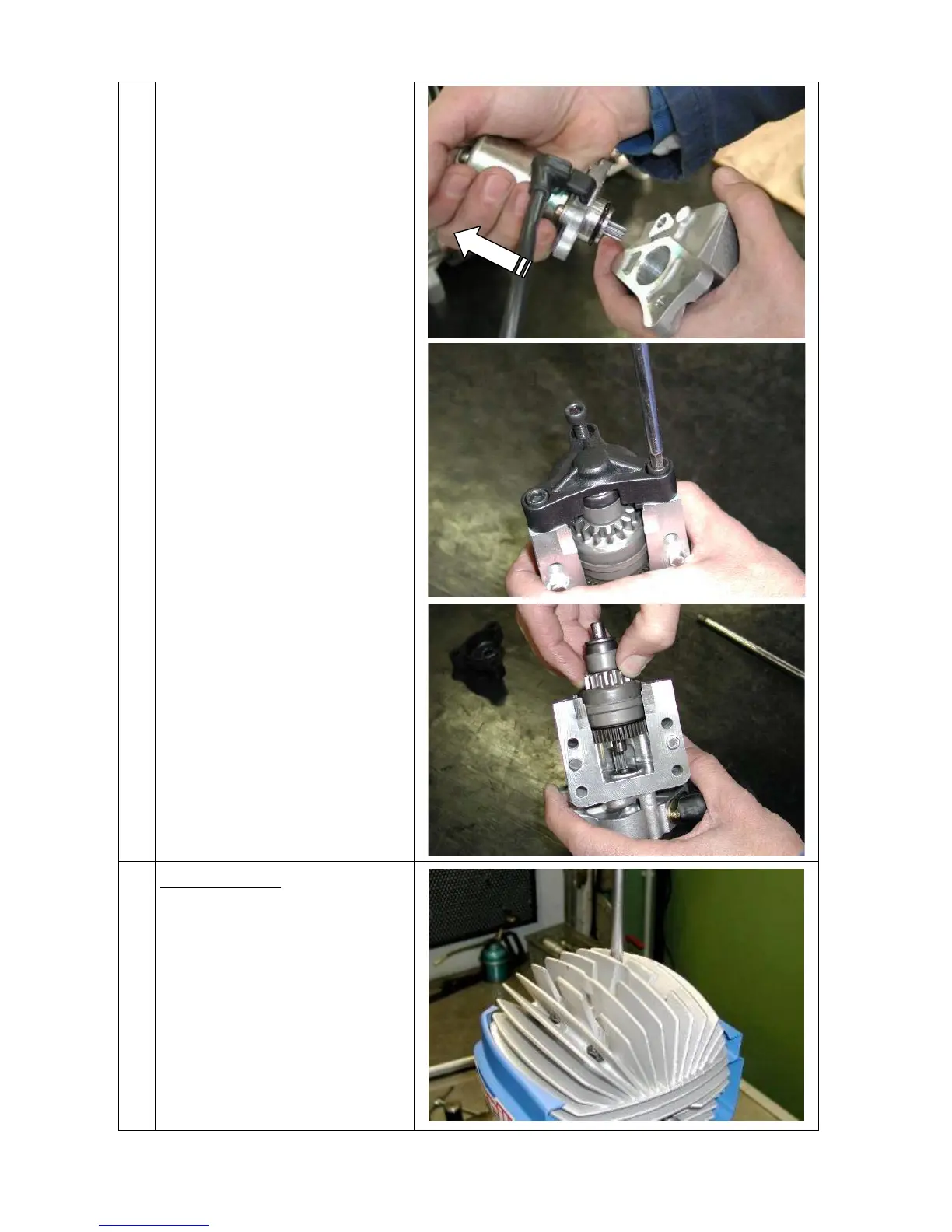

-REMOVE THE COUNTERSHAFT SUPPORT
COVER .
3 SCREWS M6X20 (see Fig.13).
-EXTRACT THE COUNTERSHAFT FROM
THE SUPPORT.
(see Fig.14).
6.
REMOVE THE HEAD :
-LOOSEN NUTS BY ½ TURN (CROSS
PATTERN DISASSEMBLY) AND THEN
REMOVE (see Fig.15).
4 NUTS M8
4 WASHERS
(13mm SOCKET T- TYPE)
Fi
g
.13
Fi
g
.14
Fi
g
.12
Fi
g
.15
