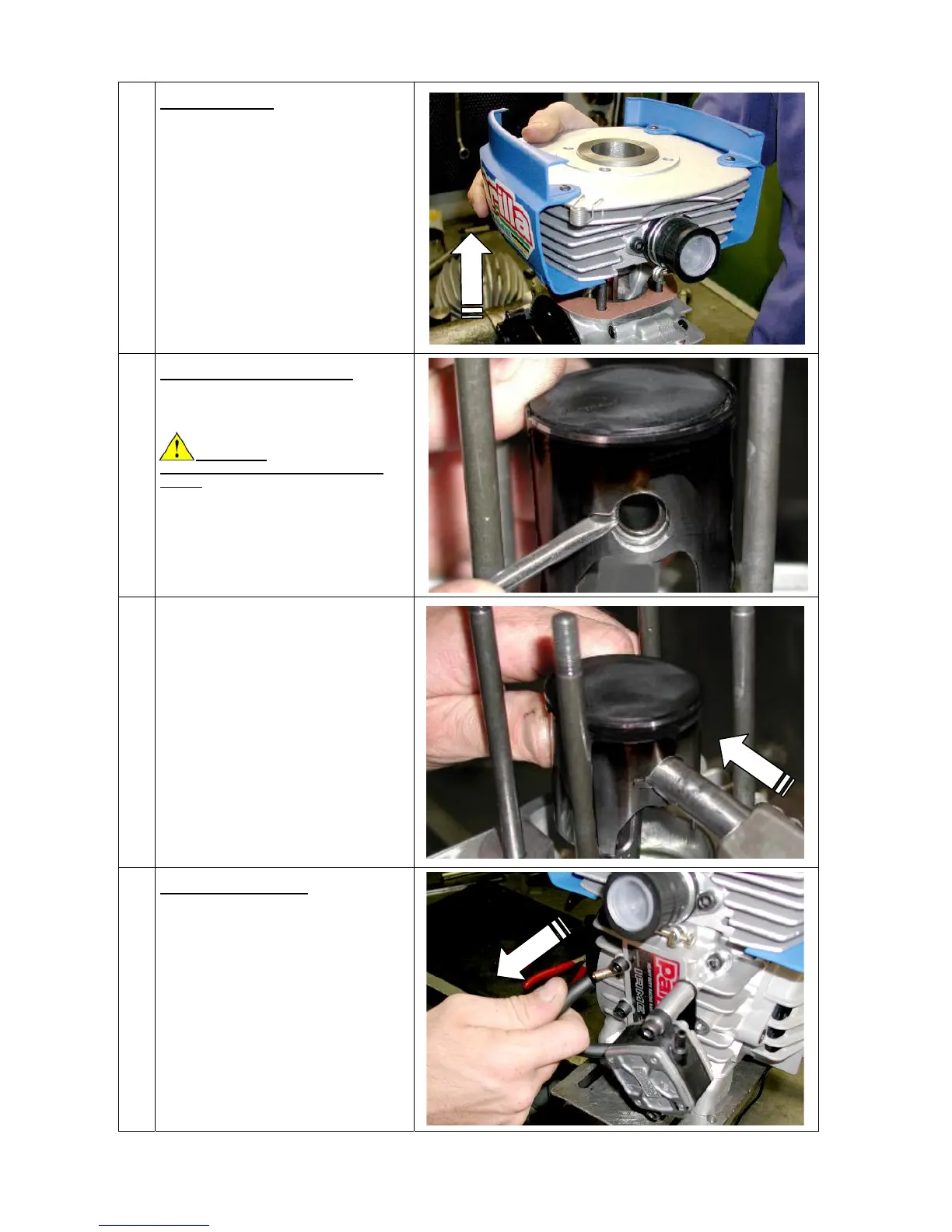

REMOVE CYLINDER
(see Fig.16).
REMOVE CYLINDER GASKET.
8.
REMOVE CIRCLIPS FROM PISTON
(see Fig.17)
(SCREWDRIVER WITH ROUND EDGES)
ATTENTION:
DO NOT SCRATCH PISTON OR CIRCLIP
SEATS.
9.
REMOVE PISTON PIN, PISTON AND
ROLLER CAGE USING THE PISTON PIN
PUNCH (see Fig.18).
(PISTON PIN PUNCH: P.N. 10202)
10.
REMOVE THE FUEL PUMP
DISCONNECT THE INTAKE PIPE FROM THE
THE CRANKCASE FITTING (see Fig.19).
