IAME Parilla MINI SWIFT User Manual

MAN-045 ING
21
10.

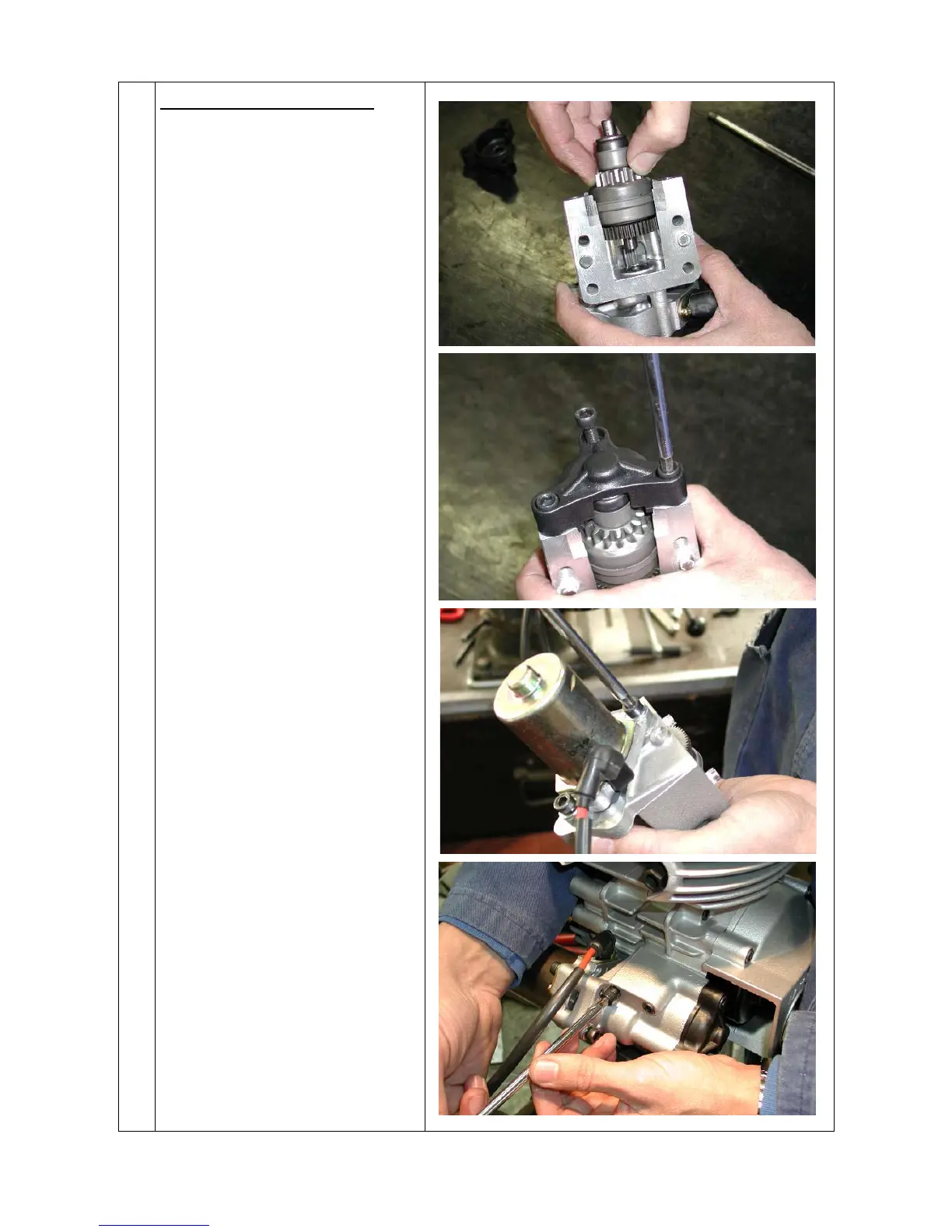

INSTALL THE STARTING ASSEMBLY:
a) INSTALL STARTER COUNTERSHAFT IN
THE STARTER SUPPORT
(see Fig.32).
b) INSTALL COUNTERSHAFT SUPPORT
COVER.
3 SCREWS M6X20 (see Fig.33).
c) INSTALL STARTER.
OIL’ “OR” AND PRESS STARTER IN
SEAT, MAKE SURE THAT GEARS
ENGAGE.
1 SCREW M6X16
1 SCREW M6X20 (see Fig.34).
d) INSTALL STARTER SUPPORT ON
ENGINE.
4 SCREWS M6X45 (see Fig.35).
- 5mm ALLEN T TYPE
Fi
g
.32
Fi
g
.33
Fi
g
.34
Fi
g
.35
