IAME Parilla MINI SWIFT - Engine Disassembly Guide; Detailed Disassembly Steps

MAN-045 ING
1

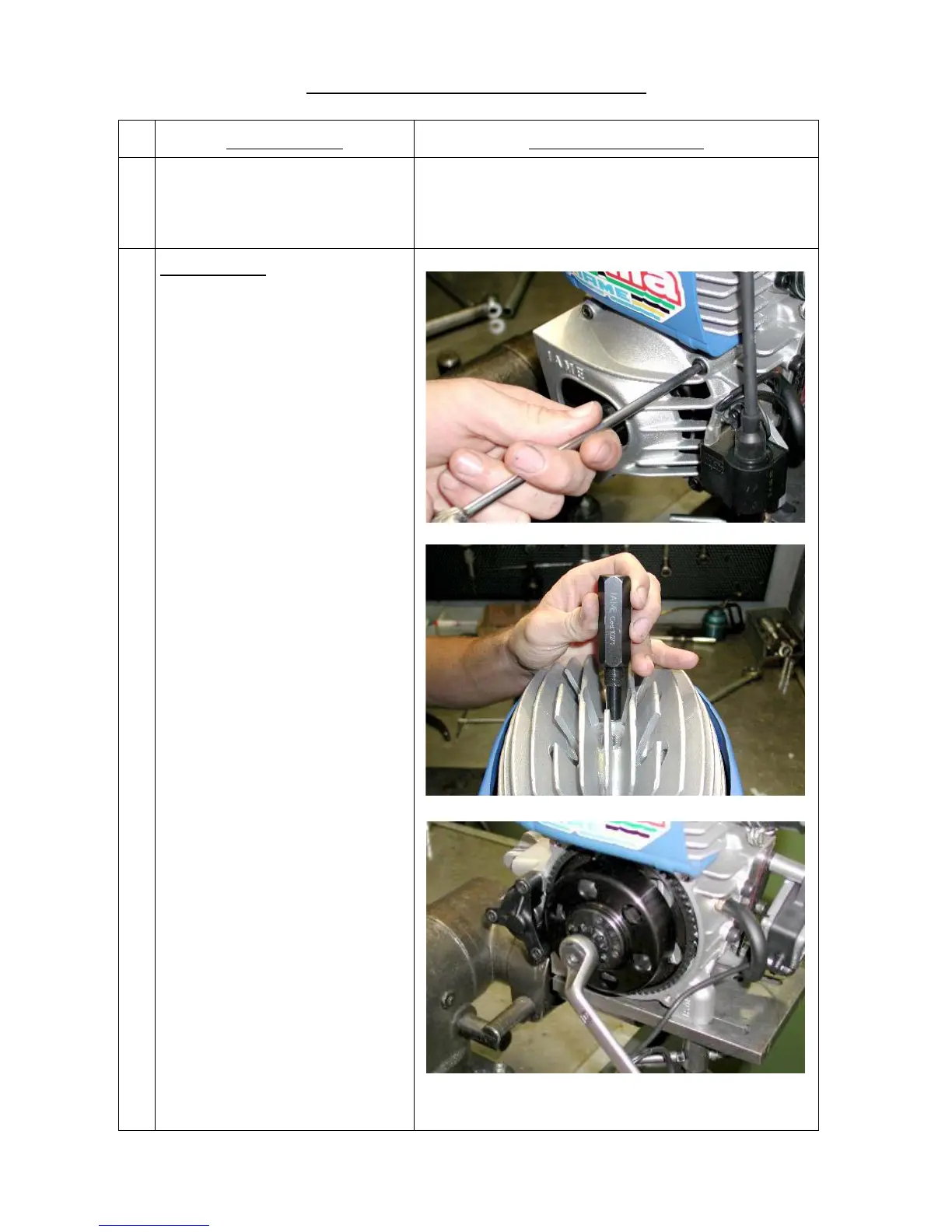

1 – ENGINE DISASSEMBLY
OPERATION TOOLS REQUIRED
1.
INSERT TWO SCREWS M8X60 ON THE
CRANKCASE TO POSITION MOTOR ON THE
BENCH.
VICE ON BENCH (tool as per draw. S725/3)
2.
REMOVE CLUTCH:
-REMOVE CLUTCH COVER
3 SCREWS M6 (See Fig.1).
(5mm ALLEN T TYPE)
-REMOVE SPARKPLUG AND INSTALL
SPECIAL PISTON FITTING SO THAT
CRANKSHAFT DOES NOT ROTATE.
(see Fig.2).
(PISTON FITTING: P.N. 10271).
-REMOVE THE FIXING NUT (M10).
(see Fig.3).
-REMOVE OUTER WASHER, CLUTCH DRUM
WITH ROLLER CAGE AND INNER WASHER.
(12 POINT WRENCH - 17mm)
Fi
g
.1
Fi
g
.2
Fi
g
.3
