IAME Parilla MINI SWIFT - Remove Starter Group

MAN-045 ING
3

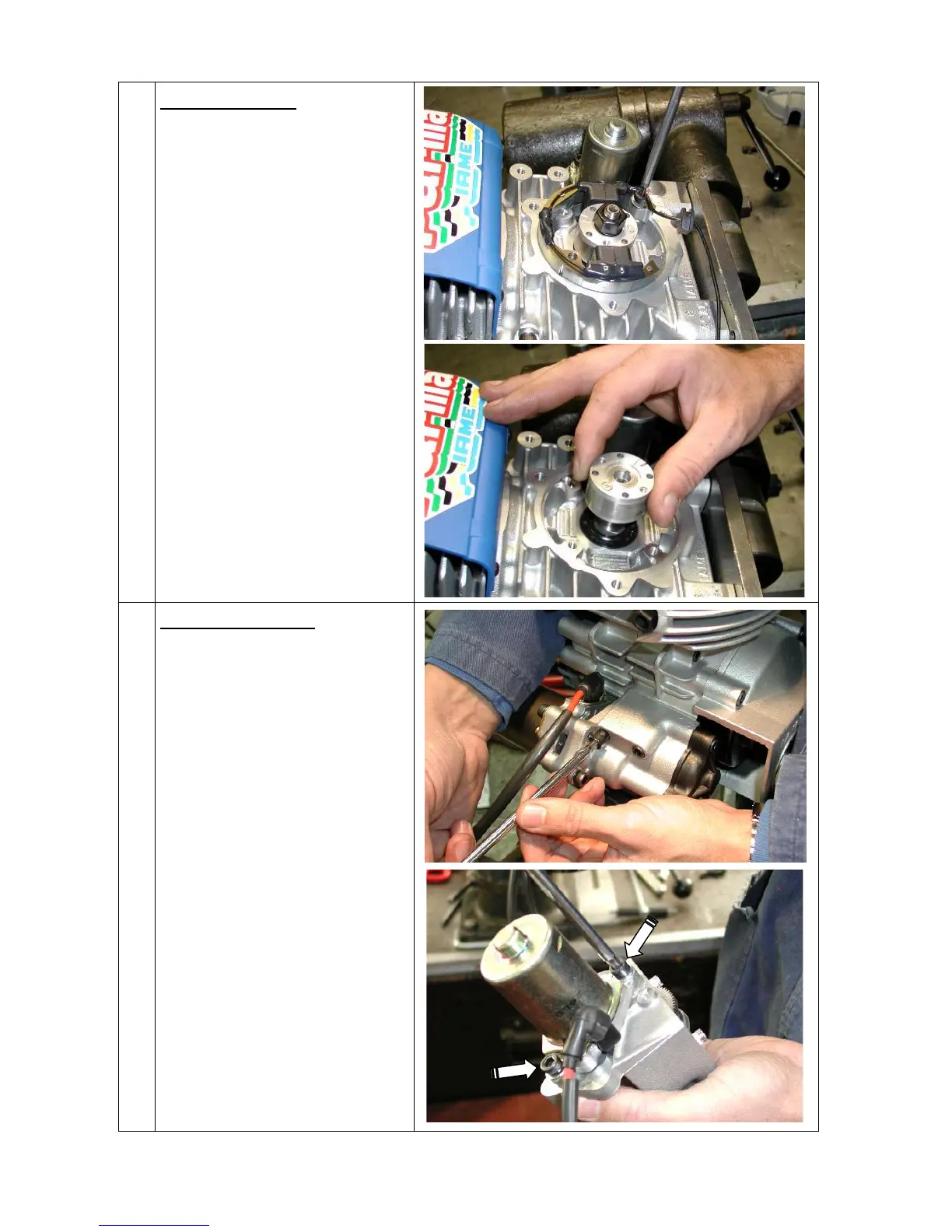

4.
REMOVE THE IGNITION:
-REMOVE STATOR .
2 SCREWS M5X25 (see Fig.8).
(5mm ALLEN T TYPE)
-INSTALL PISTON FITTING AND REMOVE
NUT WITH WASHER.
(PISTON FITTING : P.N. 10271)
(12 POINT WRENCH - 17mm)
-REMOVE ROTOR (see Fig.9).
-REMOVE KEY FROM CRANKSHAFT SEAT.
5.
REMOVE STARTER GROUP
4 SCREWS M6X45 (see Fig.10).
(5mm ALLEN T TYPE)
-REMOVE STARTER FROM SUPPORT.
1 SCREW M6X16
1 SCREW M6X20 (see Fig.11/12).
Fi
g
.10
Fi
g
.11
Fi
g
.8
Fi
g
.9
